Thrust Ball Bearings
Precision thrust ball bearings for axial load support, shaft positioning, machine tools, gearboxes, pumps, turntables, and industrial transmission systems.
Haron Bearing supplies single direction thrust ball bearings, double direction thrust ball bearings, aligning seat thrust ball bearings, and angular contact thrust ball bearings for global OEMs, distributors, machinery manufacturers, and industrial maintenance projects.
Engineered for Scale.
Consistent supply and flawless quality are non-negotiable for your assembly lines. Our manufacturing ecosystem is designed to deliver reliable performance, whether you need standard dimensions or custom-engineered solutions.
100+
Automated Lines
Ensuring rapid fulfillment for high-volume orders without supply chain bottlenecks.
P2
Grade Precision
Industry-leading accuracy required for high-speed motors and automotive applications.
-
End-to-End Quality Control Strict inspection protocols from raw material sourcing to the final finished bearing.
-
OEM & ODM Customization Flexible engineering tailored to your specific drawings, samples, and application requirements.

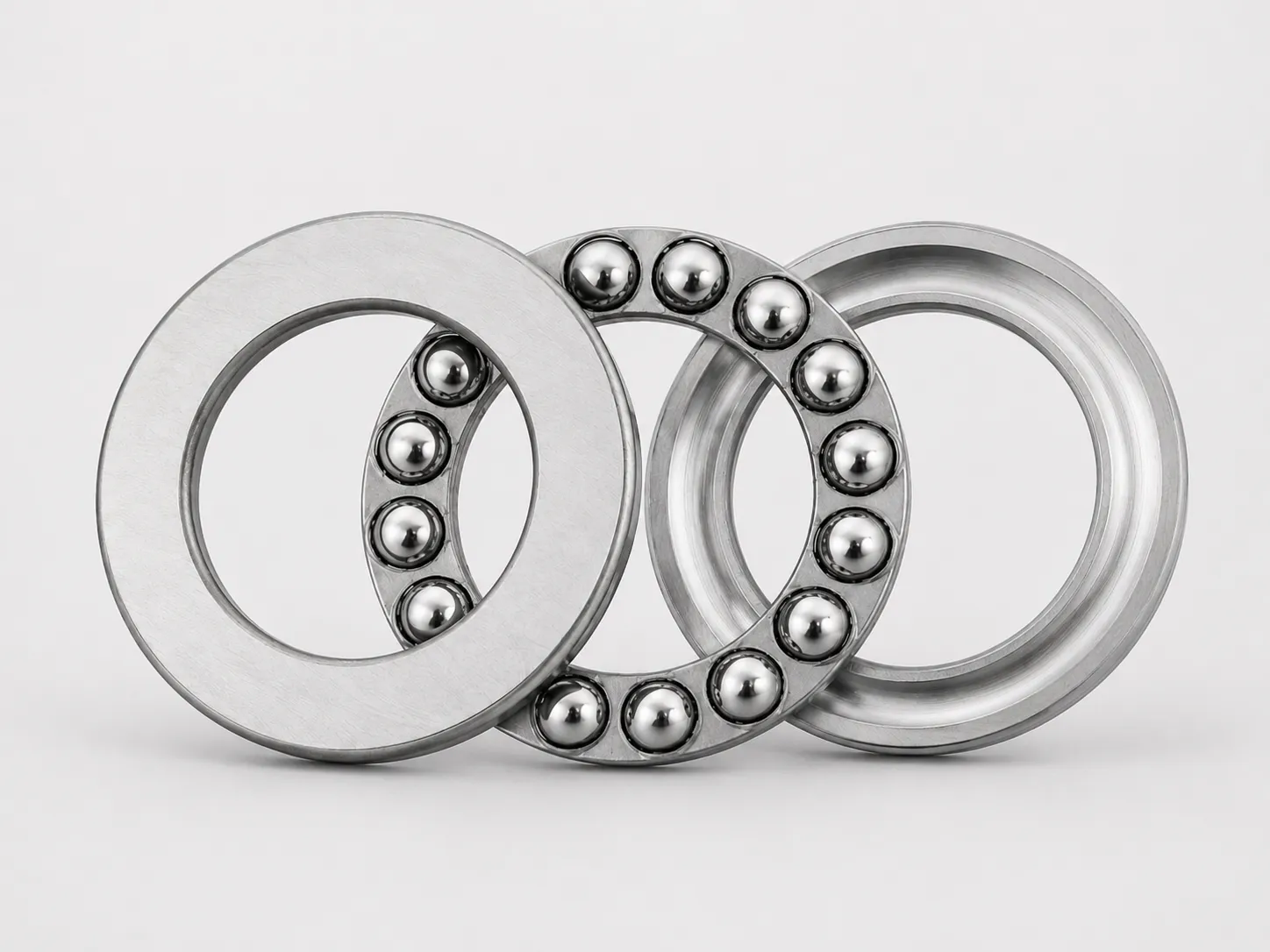

What Are Thrust Ball Bearings?
Separable axial bearings engineered for heavy thrust loads. Composed of a shaft washer, housing washer, and precision ball-cage assembly.
Optimized for precise axial positioning and smooth rotation. Designed strictly for axial loads, ensuring maximum stability along the shaft.
Axial Load Support
Engineered exclusively for heavy axial thrust loads.
Separable Structure
Modular components allow for effortless, independent installation.
Directional Flexibility
Configurable for one-way or two-way axial load positioning.
Aligning Seats
Optional aligning seat designs intelligently compensate for mounting variances.
Precision Tailored
Customizable precision grades and materials to match specific machine designs.
Rigorous Quality Control
Comprehensive inspection protocols guarantee P2-level precision and ultimate reliability.
Application
Machine Tools
Gearboxes & Reducers
Pumps & Compressors

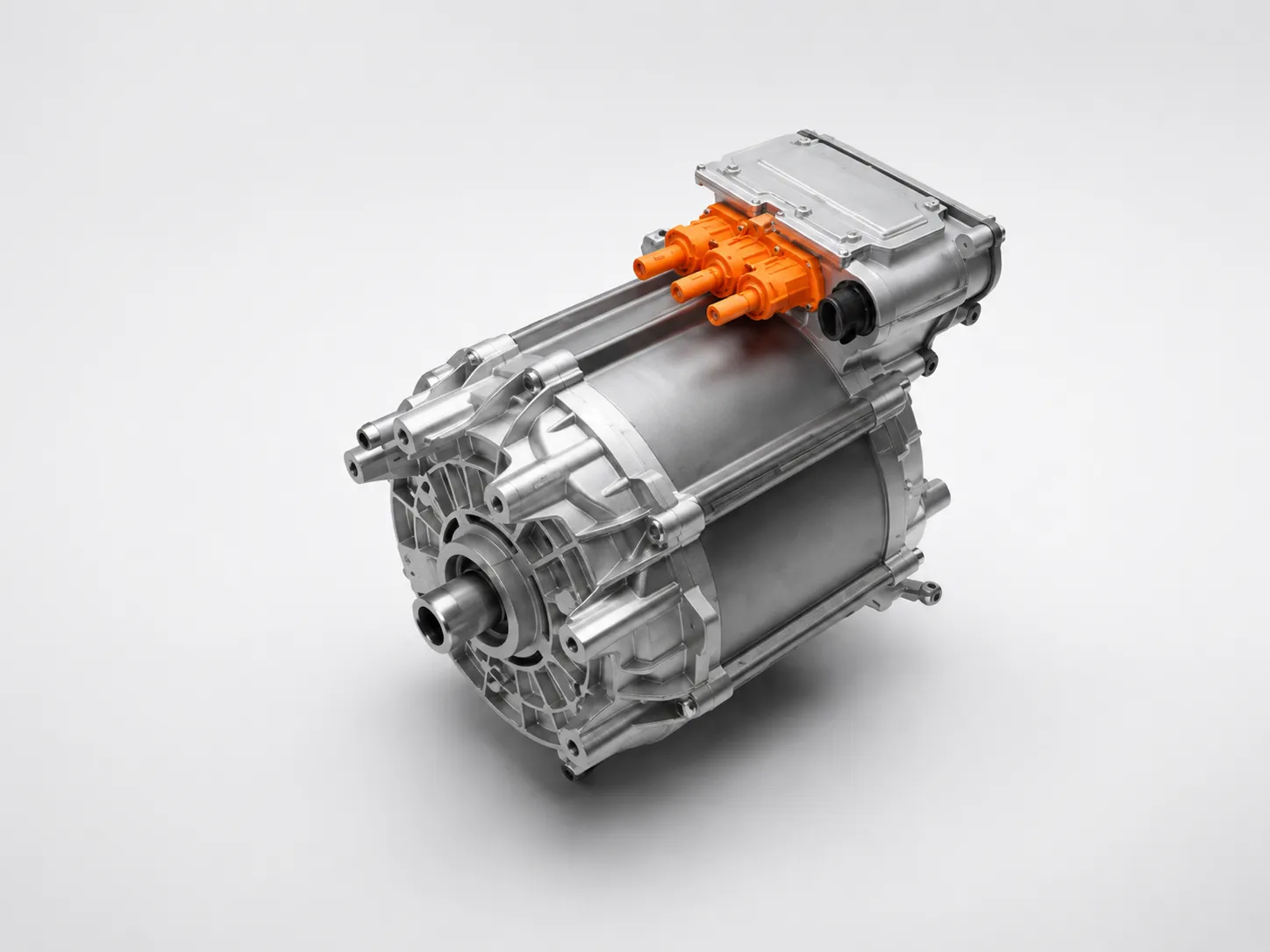

Vertical Motors
Turntables & Rotary Platforms
Ball Screw Support
Lifting & Jacking Mechanisms
Industrial Machinery
Thrust Ball Bearing Categories
Single Direction
One-way axial load support.
Double Direction
Two-way axial load support.
Aligning Seat
Compensates for mounting errors.
Angular Contact
High precision & axial rigidity.

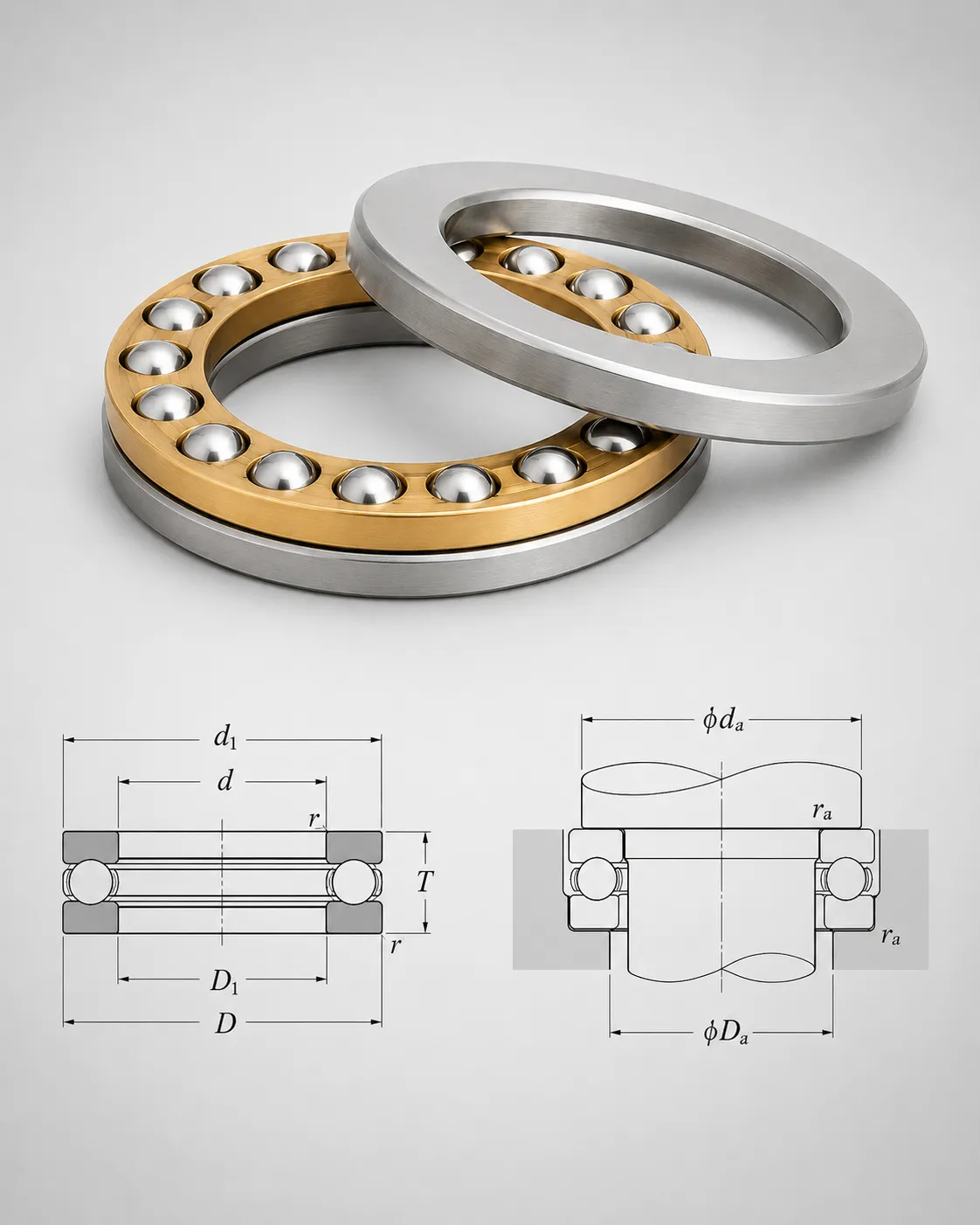

Single Direction Thrust Ball Bearings
Single direction thrust ball bearings are designed to support axial loads in one direction. They usually consist of one shaft washer, one housing washer, and one ball-cage assembly. They are suitable for simple axial positioning and applications where thrust force acts mainly from one side.
Suitable Scenes
- • Vertical motors
- • Pumps & Gearboxes
- • Turntables
- • General industrial machinery
Structural Advantages
- • Simple separable structure
- • Easy mounting & inspection
- • Broad standard availability
- • Cost-effective thrust support

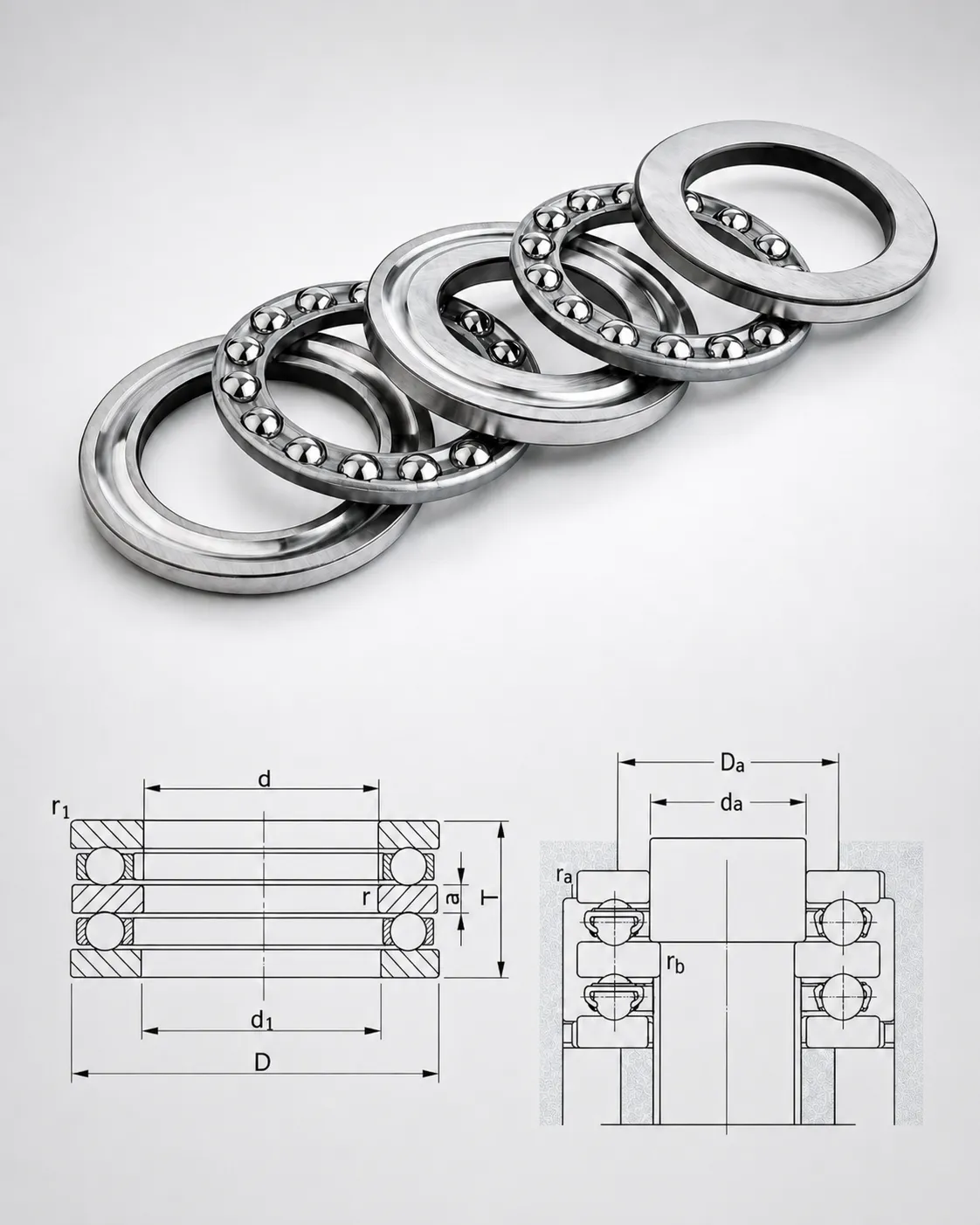

Double Direction Thrust Ball Bearings
Double direction thrust ball bearings are designed to support axial loads in both directions. They usually include two housing washers, one shaft washer, and two ball-cage assemblies. They are suitable when the shaft must be axially located in both directions.
Suitable Scenes
- • Machine tools
- • Transmission equipment
- • Screw mechanisms
- • Reversing axial forces
Structural Advantages
- • Supports load from both sides
- • Better two-way positioning
- • Stable structure
- • Handles changing force direction

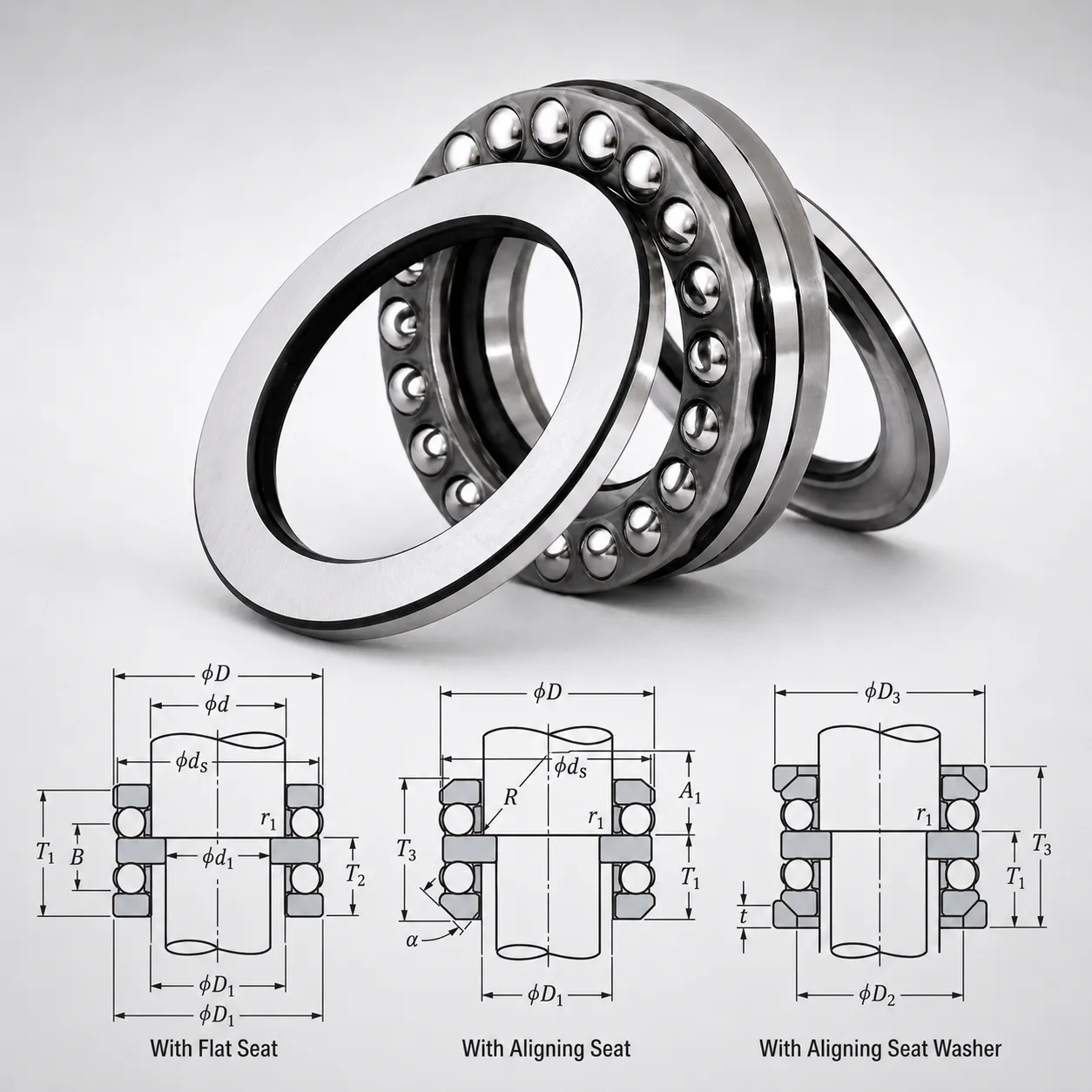

Aligning Seat Thrust Ball Bearings
Aligning seat thrust ball bearings use a sphered housing washer or aligning seat washer to help compensate for initial mounting errors. They are suitable for applications where perfect alignment between shaft and housing is difficult to maintain.
Suitable Scenes
- • Vertical shaft support
- • Equipment with mounting tolerance
- • Housing alignment challenges
Structural Advantages
- • Compensates for mounting errors
- • Reduces misalignment sensitivity
- • Available in 1-way & 2-way

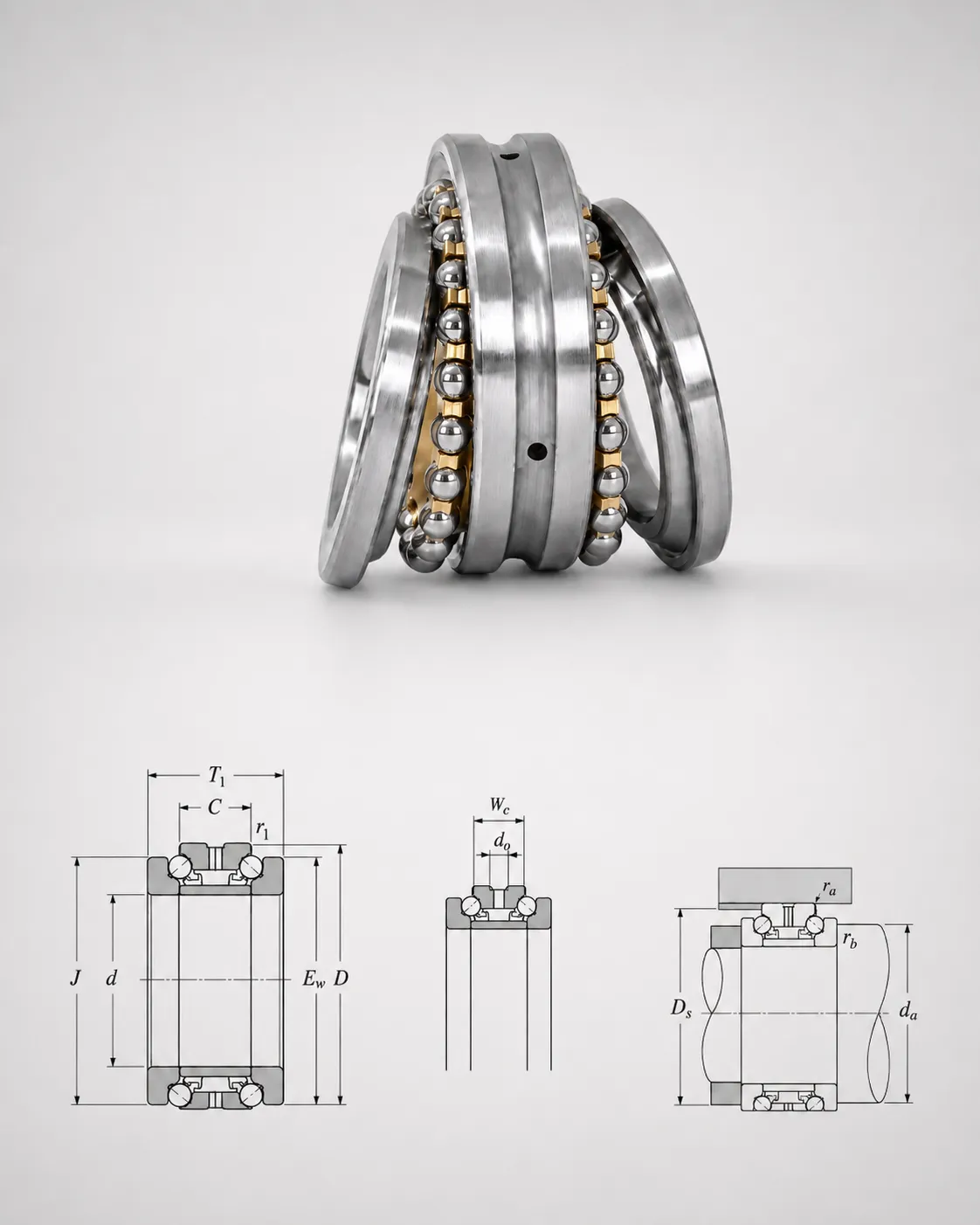

Angular Contact Thrust Ball Bearings
Angular contact thrust ball bearings are designed for high precision axial support and higher rigidity applications. They are commonly used in machine tools, ball screw support units, precision rotary tables, and high-speed axial positioning systems.
Suitable Scenes
- • Machine tools & CNC
- • Ball screw support
- • Precision rotary tables
- • Robotics & automation
Structural Advantages
- • Higher axial rigidity
- • Better positioning accuracy
- • Demanding load & speed support
- • Matched sets available
Not Just a Bearing. A Matched Axial Load Solution.
Many bearing failures are not caused by the bearing itself. They often come from incorrect load direction, poor mounting accuracy, wrong bearing series, insufficient lubrication, excessive speed, or using a thrust ball bearing where radial load support is required.
1. Machine Structure
Identify application & housing
2. Load Direction
1-way, 2-way, or precision
3. Operating Specs
Speed, precision, lubrication
4. Final Selection
Matched thrust bearing solution
Haron Bearing helps B2B buyers match thrust ball bearings before sampling, reducing selection errors during machine design, equipment maintenance, and repeat purchasing.
Related Bearing Products
Deep Groove Ball Bearings
For high-speed radial load support and general rotating machinery.
Explore ProductAngular Contact Ball Bearings
For combined radial and axial loads in high-speed and precision applications.
Explore ProductSelf-Aligning Ball Bearings
For applications requiring tolerance to shaft misalignment.
Explore ProductTapered Roller Bearings
For combined radial and axial loads in gearboxes, wheels, and heavy machinery.
Explore ProductSpherical Roller Bearings
For heavy loads, shock loads, and misalignment conditions.
Explore ProductThrust Roller Bearings
For higher axial load capacity than standard thrust ball bearings.
Explore ProductBuilt for Bearing Selection, Precision Control and Repeatable Supply
Why Haron Bearing is the reliable partner for industrial buyers.
Thrust Bearing Structure Knowledge
We support buyers in selecting single direction, double direction, aligning seat, and angular contact thrust ball bearings based on axial load direction and machine structure.
Precision and Tolerance Control
Haron Bearing can support different precision requirements for industrial machinery, machine tools, automation systems, and replacement projects.
Material and Cage Options
Support for standard bearing steel, stainless steel options, pressed steel cages, brass cages, and application-based material matching.
Application-Based Selection
We help buyers avoid selection mistakes by checking load direction, speed, lubrication, mounting accuracy, and operating environment before sampling.
OEM / ODM Project Support
Support custom size discussion, private label packaging, repeatable supply, technical documentation, and distributor cooperation.
Quality Inspection and Stable Supply
From dimension inspection to rotational performance checks, Haron Bearing focuses on stable quality and repeatable delivery for global industrial buyers.
Which Thrust Ball Bearing Fits Your Project?
| Type | Best For | Load Direction | Main Advantage |
|---|---|---|---|
| Single Direction | Vertical shafts, pumps, simple axial positioning | One-way axial load | Simple and cost-effective axial support |
| Double Direction | Machine tools, screw mechanisms, bidirectional shaft positioning | Two-way axial load | Supports axial force from both directions |
| Aligning Seat | Applications with mounting alignment challenges | One-way or two-way, depending on structure | Helps compensate for initial mounting errors |
| Angular Contact Thrust | Ball screw support, machine tools, precision rotary systems | Precision axial load support | Higher rigidity and positioning accuracy |
| Custom Thrust Solutions | OEM/ODM machinery projects | Based on machine design | Matches size, precision, material, cage, and application needs |
FAQ About Thrust Ball Bearings
Common technical and sourcing questions answered.
