Needle Roller Bearings
Compact high-load bearing solutions for limited radial space, industrial transmission systems, automotive applications, gearboxes, pumps, compressors, power tools, and OEM machinery projects.
Explore drawn cup needle roller bearings, machined ring needle roller bearings, needle roller and cage assemblies, thrust needle roller bearings, combined needle roller bearings, drawn cup roller clutches, cam followers, and matching inner rings for compact motion systems.
Precision Bearing Manufacturing for OEM and Industrial Applications
Haron Bearing supports global buyers with precision bearing manufacturing, strict quality inspection, OEM/ODM customization, flexible model matching, and repeatable supply for industrial equipment, automotive parts, gearboxes, power tools, and machinery projects.
Precision Manufacturing
Custom bearing production and model matching for industrial applications.
Strict Quality Control
Dimensional inspection, noise testing, rotation testing, and material control.
OEM / ODM Support
Private label, non-standard sizes, special clearance, cage, seal, and packaging options.
Global B2B Supply
Support for distributors, importers, OEM factories, and machinery manufacturers.

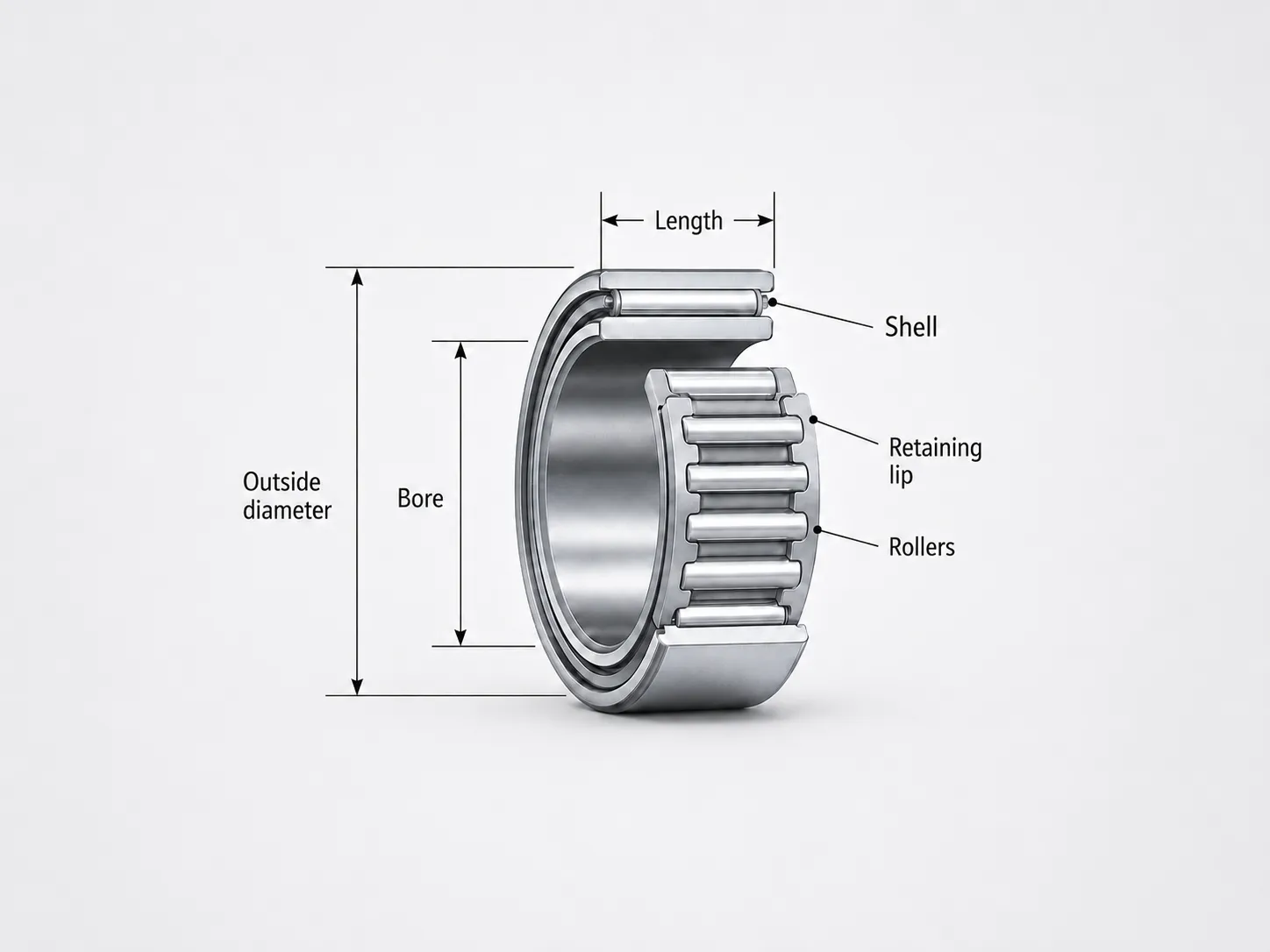

What Are Needle Roller Bearings?
Needle roller bearings use long and small-diameter cylindrical rollers to provide high radial load capacity within a compact radial section. Because the rollers are thin and long, these bearings are widely used where the available installation space is limited but the load requirement is high.
They can be designed with drawn cups, machined rings, cages, thrust washers, inner rings, seals, or combined axial components depending on the shaft condition, housing structure, load direction, speed, lubrication, and application environment.
Expert Selection Note: A good needle roller bearing selection is not only about bore size or outside diameter. It must match the shaft hardness, housing tolerance, radial space, radial load, axial load, speed, lubrication method, sealing requirement, installation method, and whether the bearing needs an inner ring or can run directly on the shaft.
How to Choose the Right Needle Roller Bearing
Follow this engineered 6-step process to ensure reliable performance in your industrial application.
Confirm the Load Direction
- Radial load
- Axial load
- Combined radial and axial load
- One-way torque transmission
- Rolling contact against a cam
If radial load: drawn cup, machined ring, or cage assemblies. If axial: thrust types. If both: combined bearings.
Confirm Available Radial Space
- Very limited radial space
- Compact housing
- Small shaft diameter
- Need for low cross-section height
Needle roller bearings are ideal when radial section is limited. Drawn cup and cage assemblies offer the most compact arrangements.
Check Shaft & Raceway Condition
- Shaft can be hardened and ground
- Shaft cannot be used as a raceway
- Inner ring is required
- Surface hardness must be checked
Bearings without inner rings require a suitable shaft raceway. Otherwise, select a bearing with an inner ring.
Choose the Bearing Structure
- Cage Assemblies (space saving)
- Drawn Cup (compact housing)
- Machined Ring (high rigidity)
- Thrust / Combined / Clutches
Each structure solves a different mechanical problem. Select based on the synthesis of Steps 1-3.
Confirm Speed & Environment
- High speed or moderate speed
- Oscillating movement
- Grease or oil lubrication
- Need for sealed bearing
Full complement types handle heavy loads at moderate speeds. Sealed types protect against contamination.
Confirm Model & Parameters
- Bore / Outside diameter / Width
- Clearance & Tolerance
- Application industry
- Target quantity
Before sampling, confirm all parameters to avoid wrong selection during machinery design or replacement.

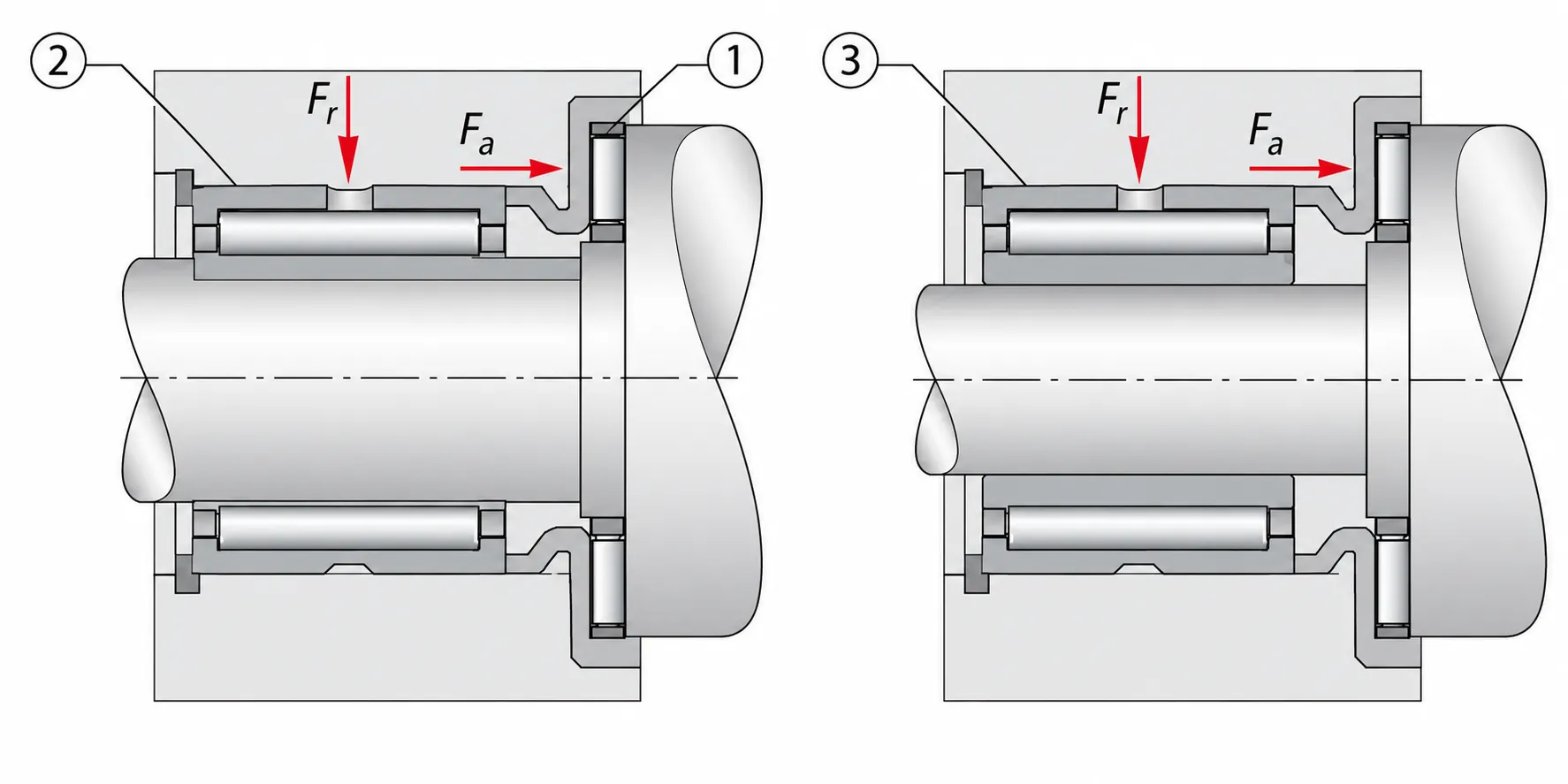

Understand Structure and Load Direction
Explore how our advanced bearing architectures are engineered to handle complex load conditions with absolute precision and enduring reliability.
Explore by Application
Needle roller bearings are not a single product, but specialized solutions for different equipment structures and transmission systems.

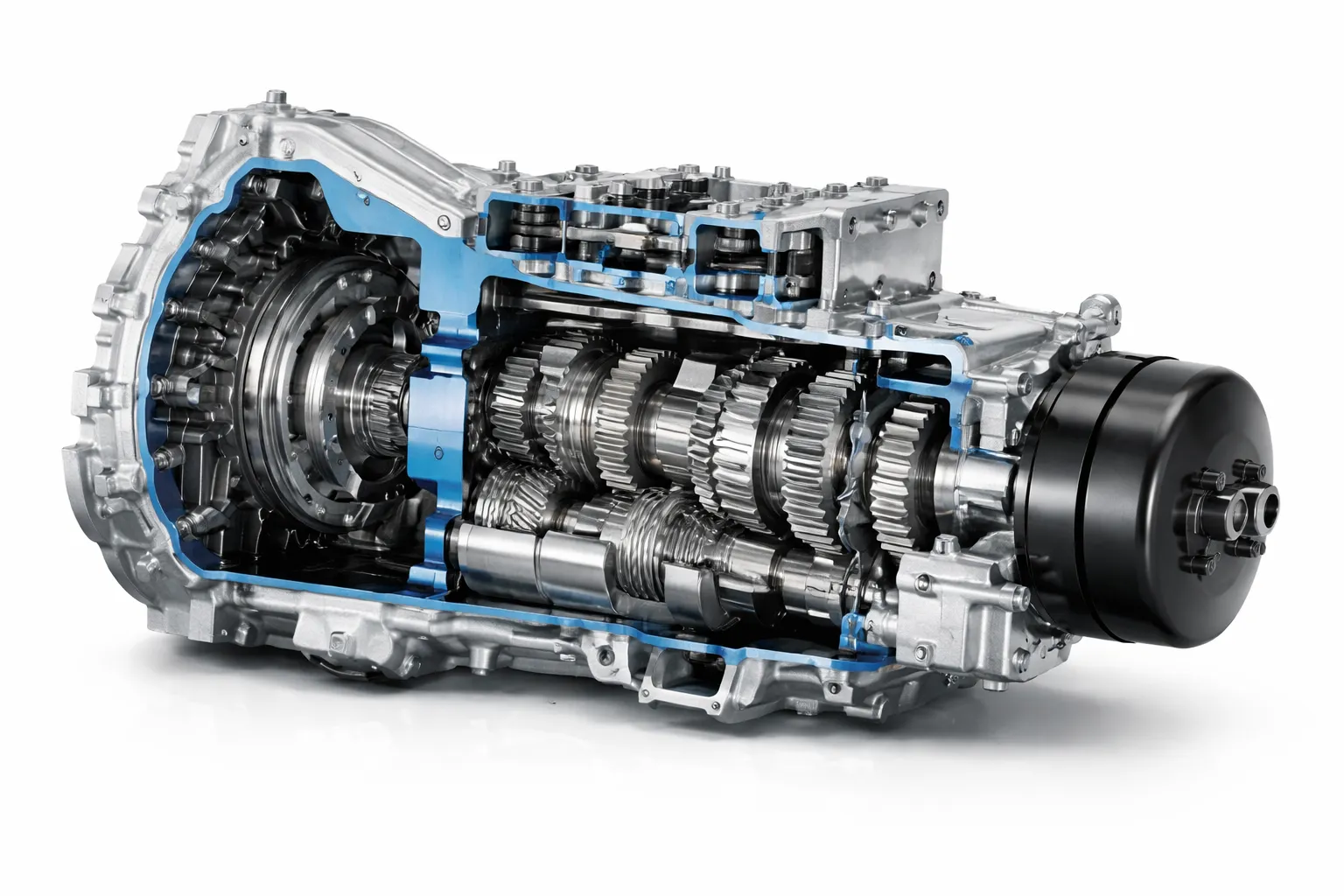

Automotive Transmissions
Needle roller bearings for compact transmission shafts, gears, clutch systems, and high-load automotive parts.
Gearboxes
Compact bearing solutions for gear shafts, intermediate shafts, and limited-space gearbox arrangements.
Pumps & Compressors
Power Tools

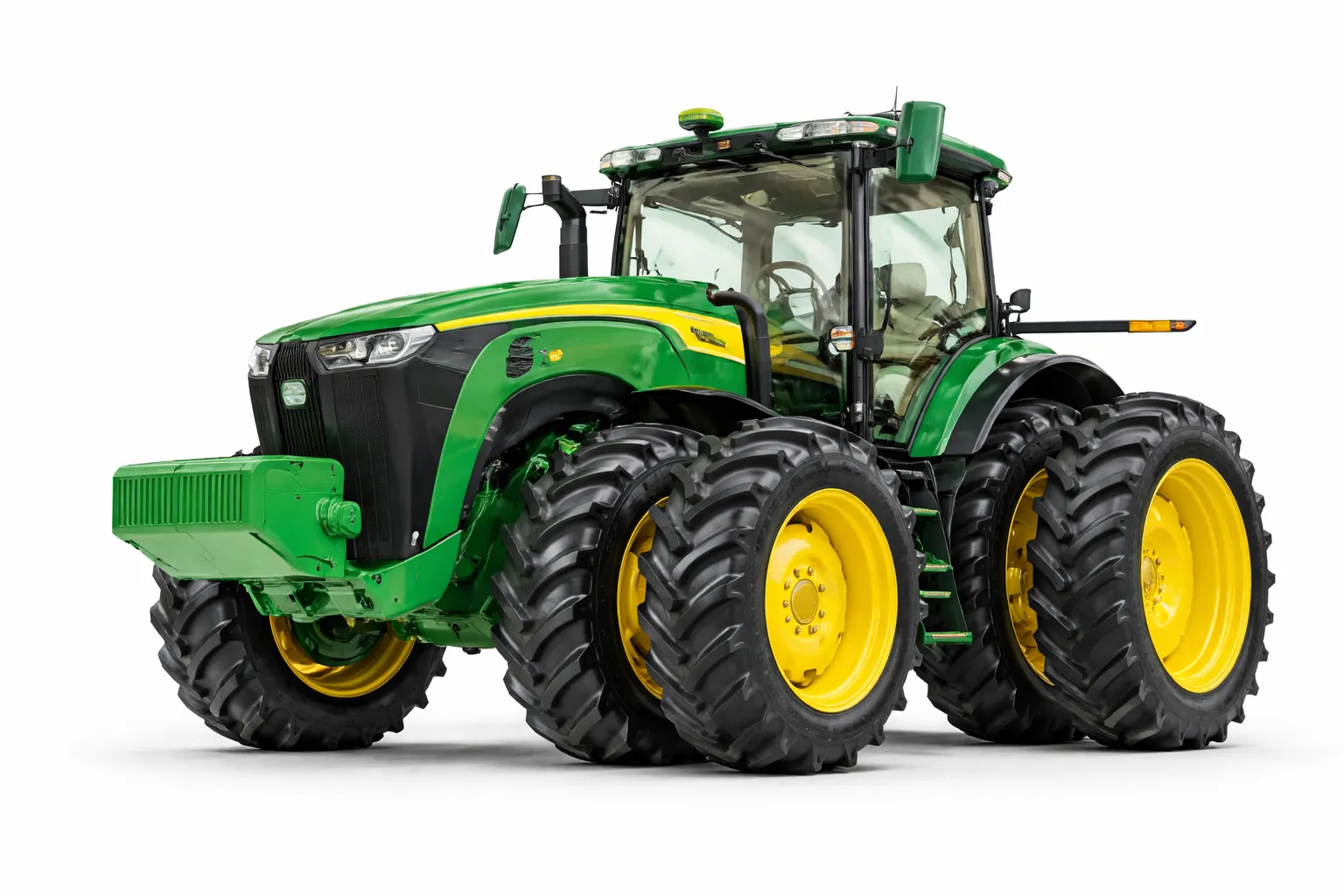

Agricultural Machinery
Construction Machinery

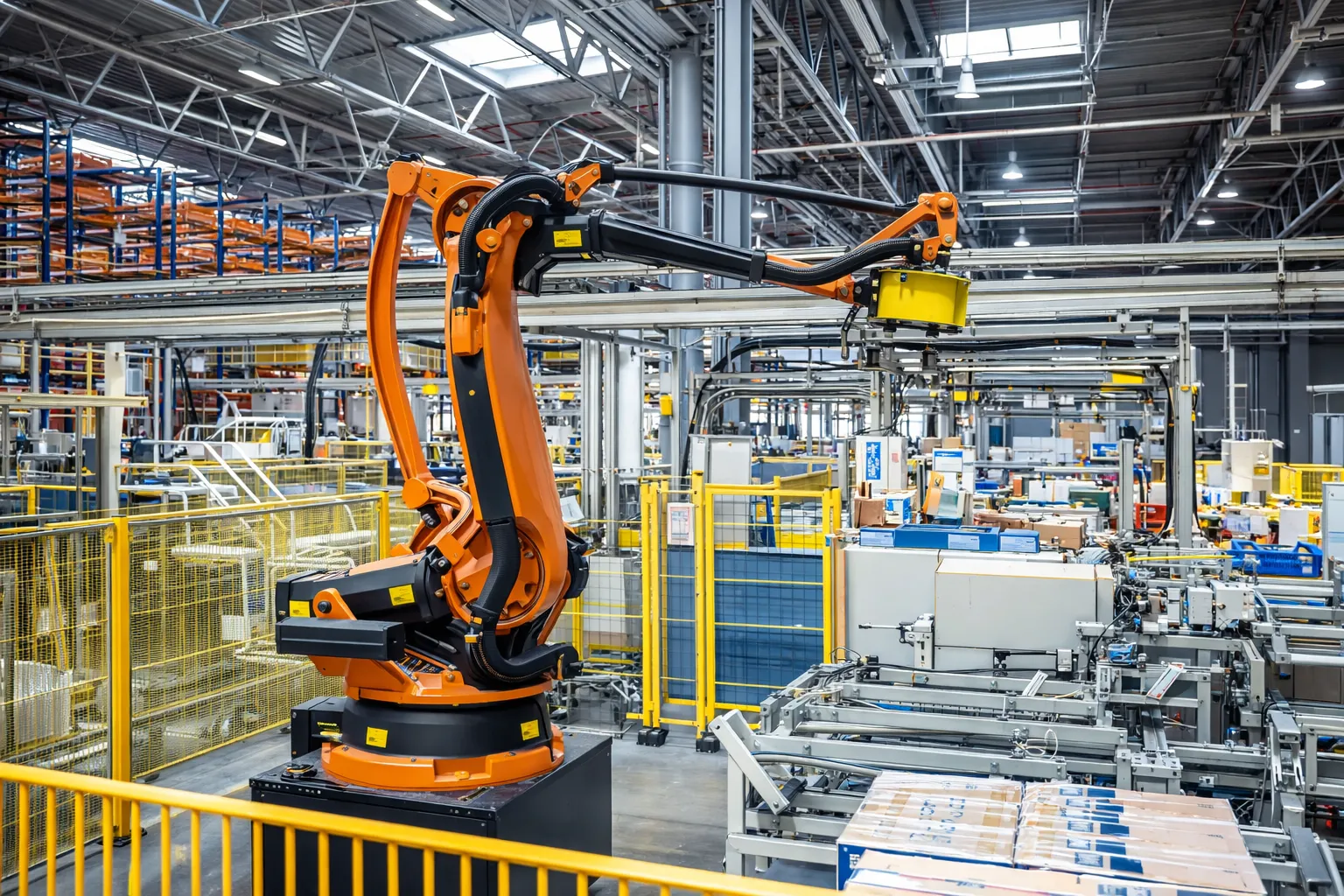

Industrial Automation
One-Way Clutch Systems
Drawn cup roller clutches for one-way torque transmission and overrunning mechanisms.
Compact Mechanical Assemblies
For applications where limited radial space requires high load capacity and precise shaft support.
Needle Roller Bearing Categories

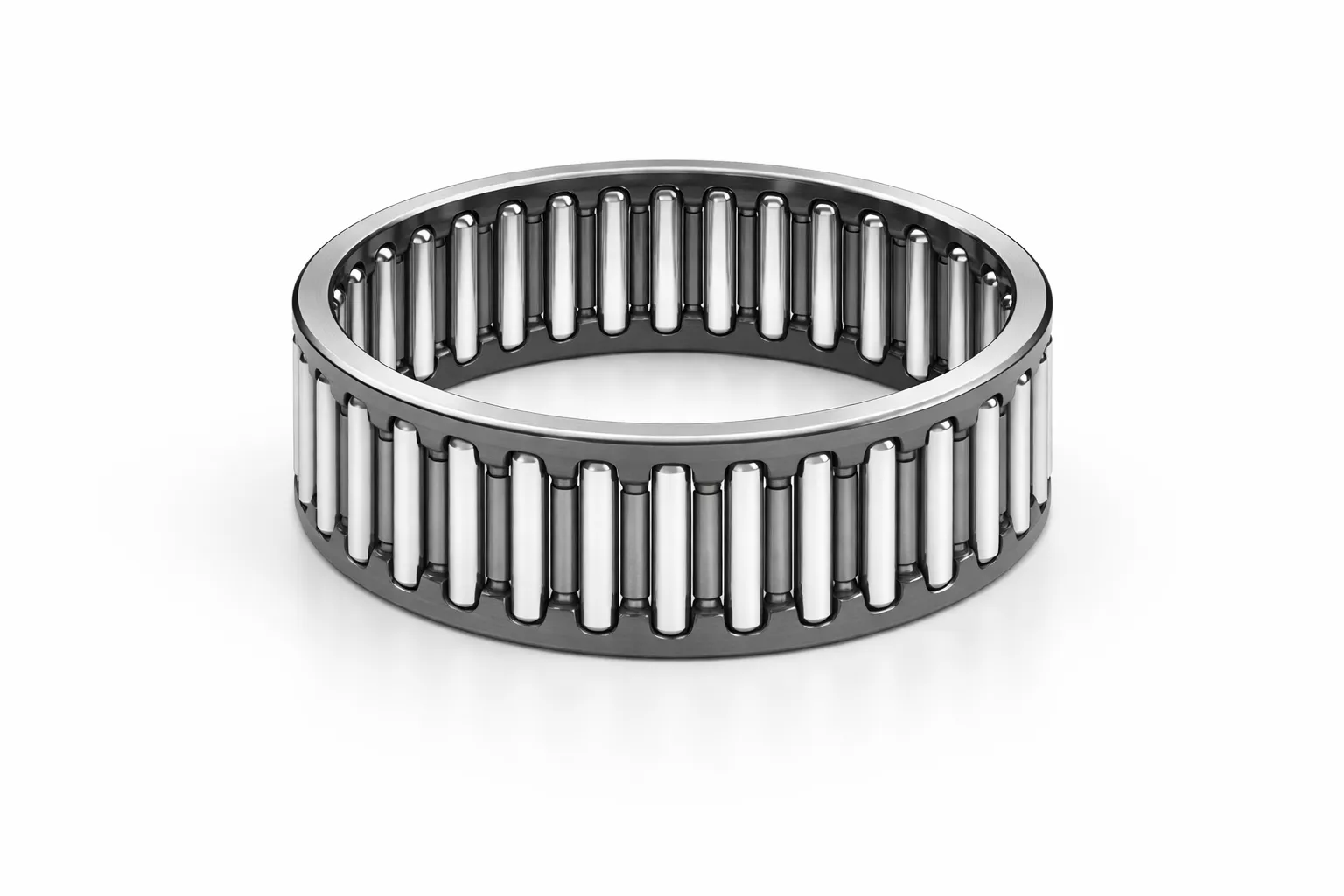

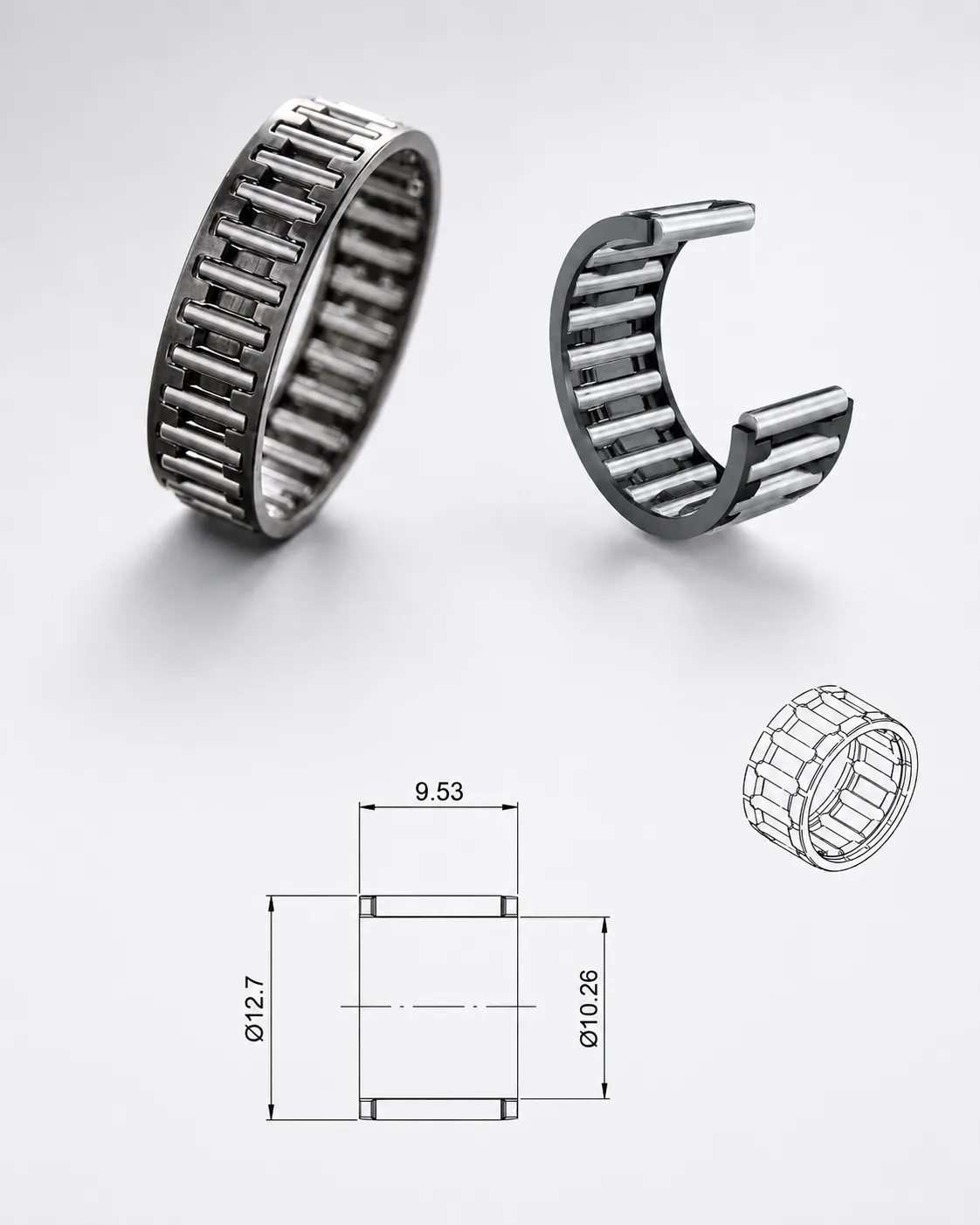

Needle Roller and Cage Assemblies
Needle roller and cage assemblies are the most compact needle bearing structure. Without inner or outer rings, they require hardened and ground shaft and housing raceways, making them suitable for applications where every millimeter of radial space matters.
- Extremely compact radial section
- Low mass and high load capacity
- Used in automotive transmissions, gear shafts, and pumps

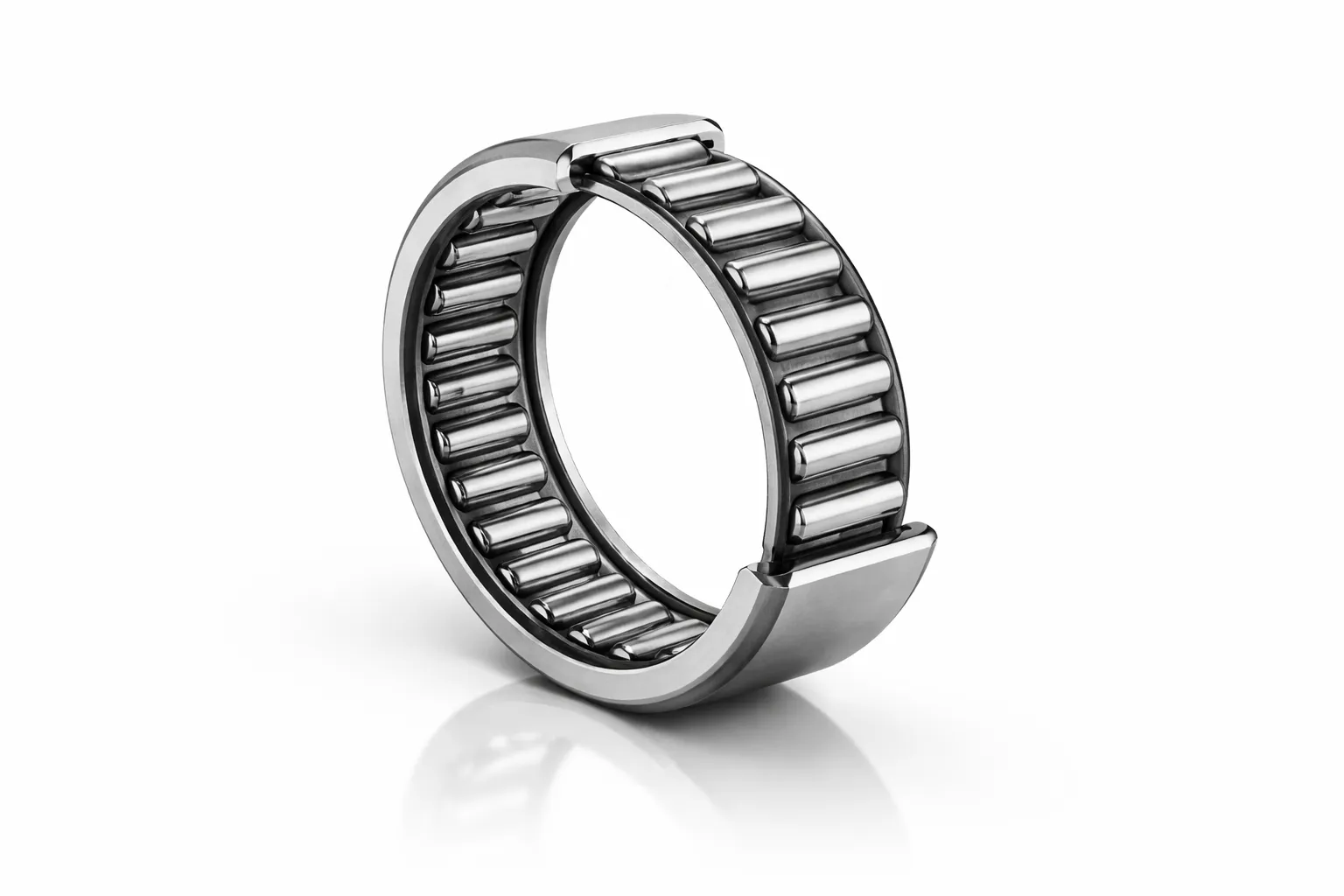

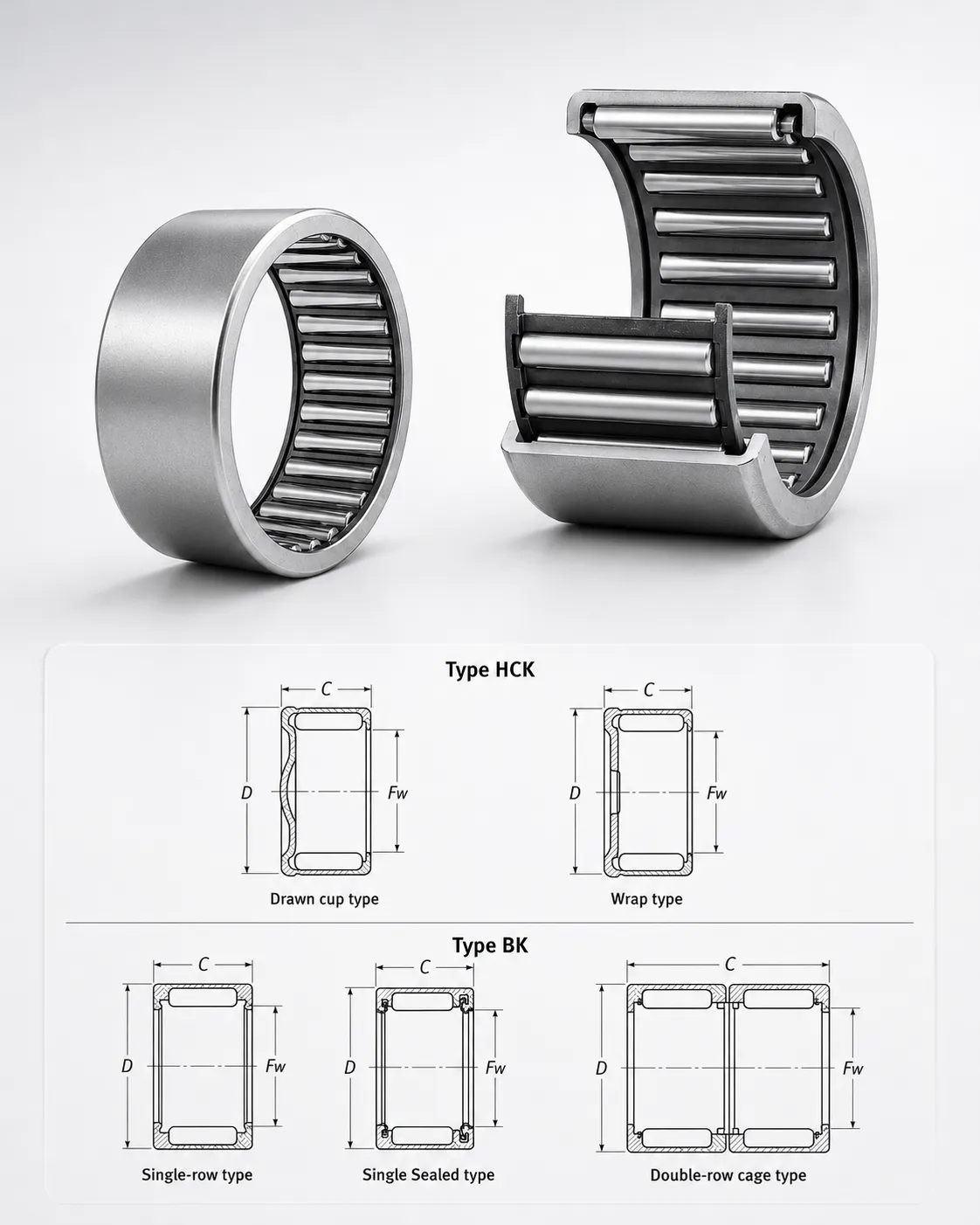

Drawn Cup Needle Roller Bearings
Drawn cup needle roller bearings use a thin-walled outer ring and a needle roller assembly to provide high radial load capacity in a compact housing. They are widely used in transmissions, power tools, pumps, compressors, and compact industrial equipment.
Open End & Closed End
Available depending on shaft end sealing requirements.
Press-Fit Installation
Economical installation into housing without snap rings.

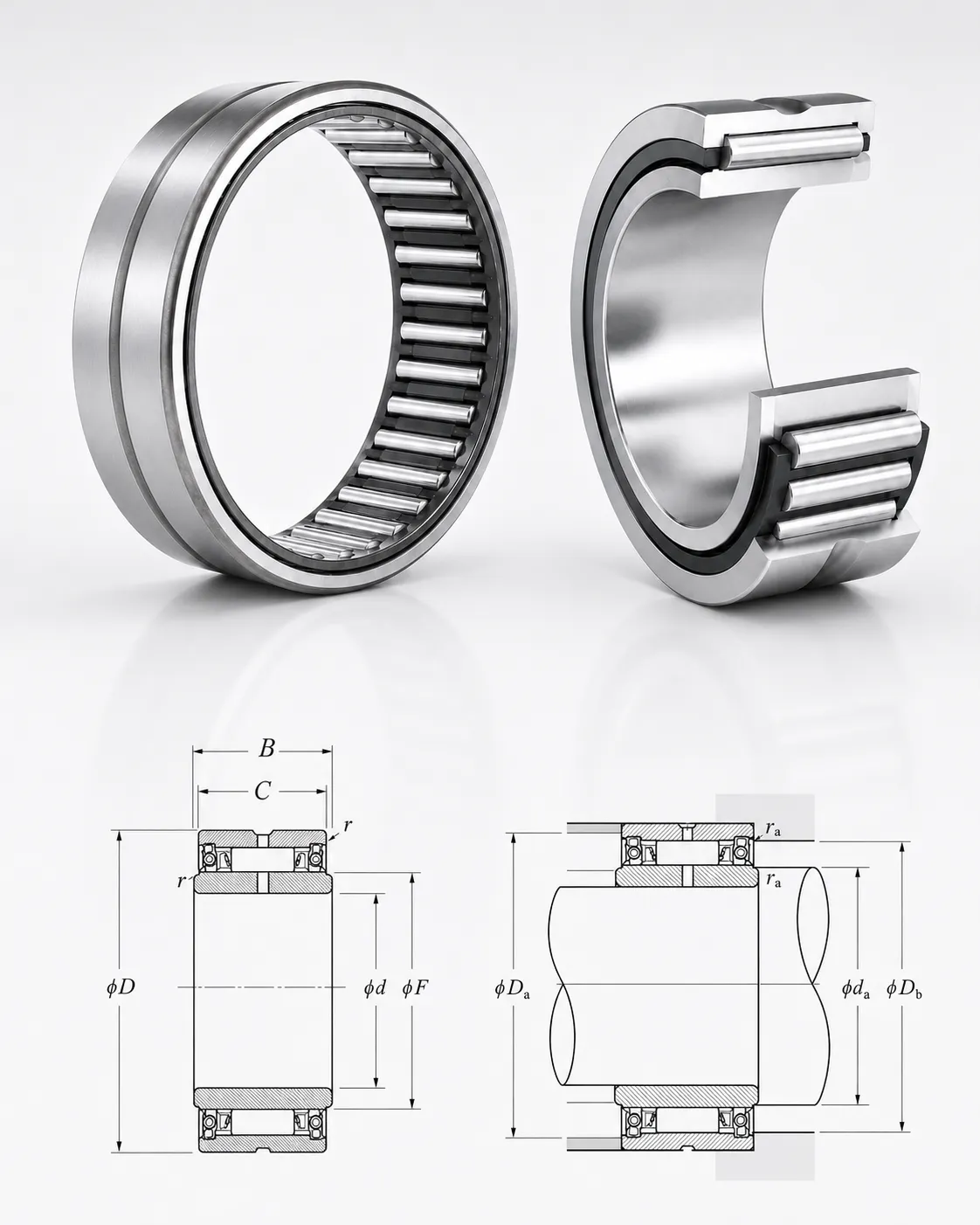

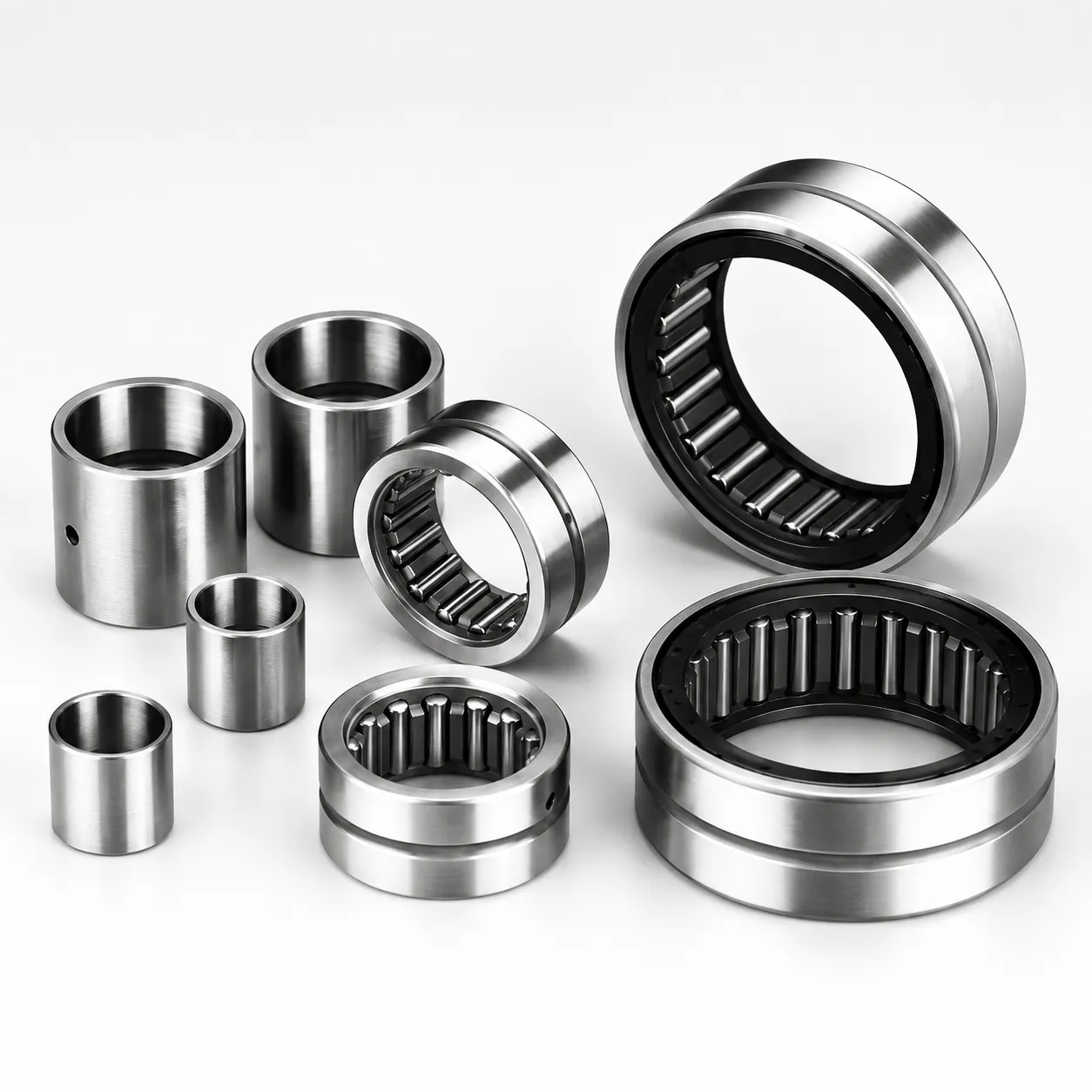

Machined Ring Needle Roller Bearings
Machined ring needle roller bearings provide higher rigidity and load capacity for industrial applications. They are available with or without inner rings, depending on whether the shaft can be used as a raceway.
- Stronger machined outer ring
- Suitable for heavier industrial loads like gearboxes
- Available with inner ring (NKI, NA) or without (NK, RNA)

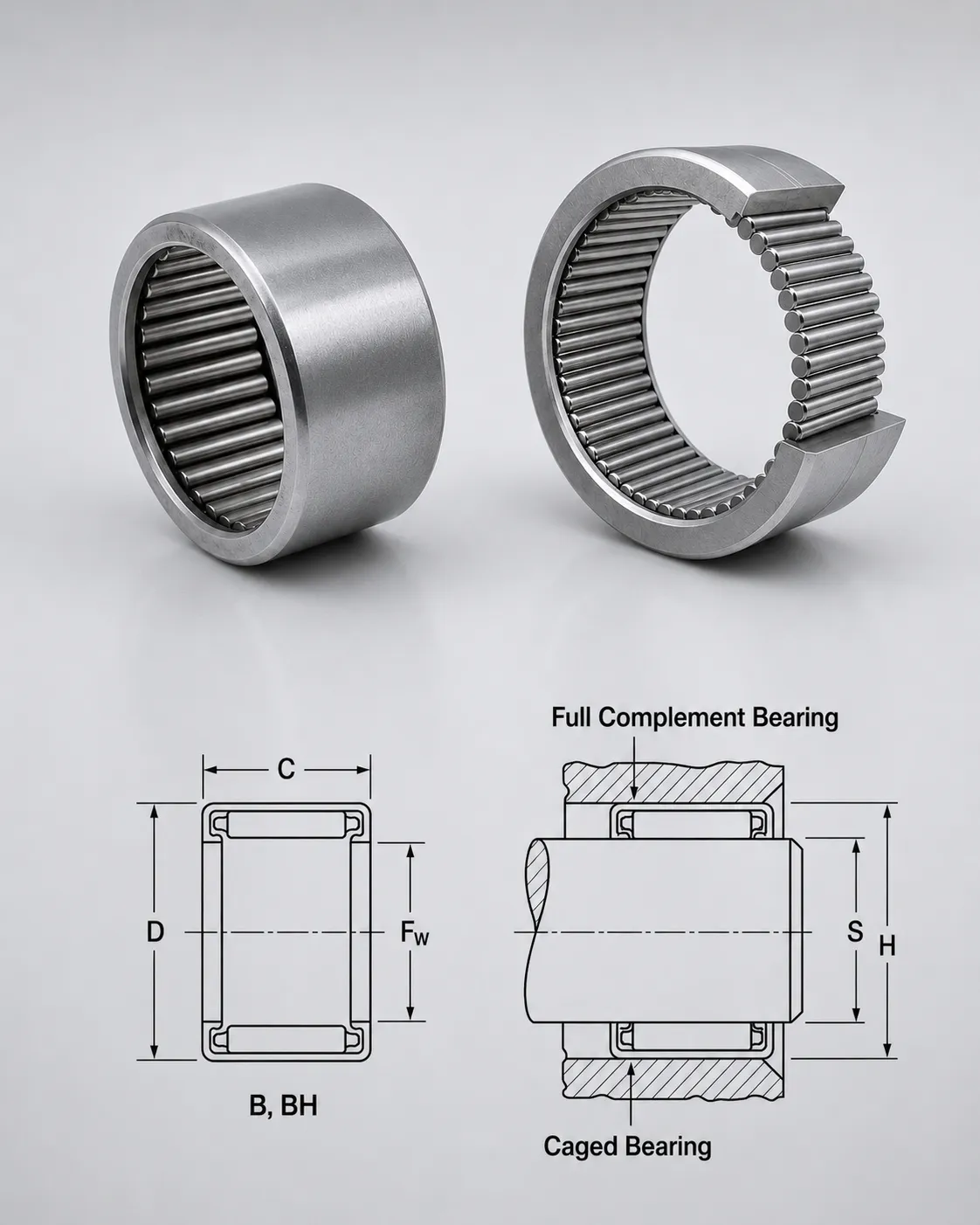

Full Complement Needle Roller Bearings
Full complement needle roller bearings contain more rollers than cage-guided designs, allowing higher radial load capacity in a compact space. They are suitable for heavy-load and moderate-speed applications where maximum load support is more important than high-speed performance.
Ideal Applications: Oscillating movement, construction machinery, agricultural equipment, and compact heavy-load supports.

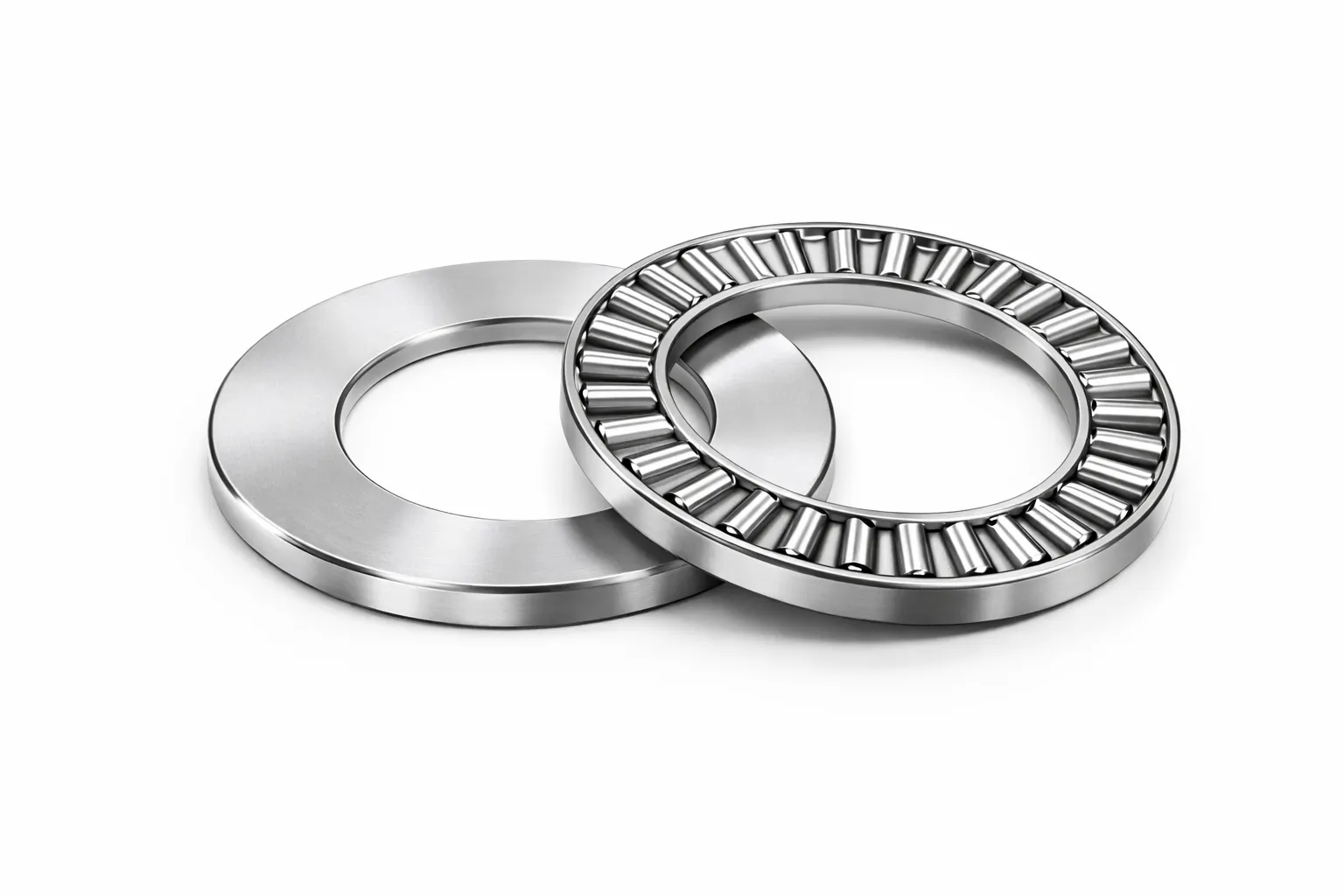

Thrust Needle Roller Bearings
Thrust needle roller bearings are designed to support axial loads in a compact axial space. They are commonly used with bearing washers when the adjacent machine surface cannot act as a suitable raceway.
- Low axial section height
- Can be matched with AS, WS, GS thrust washers
- Used in transmissions, gearboxes, and pumps

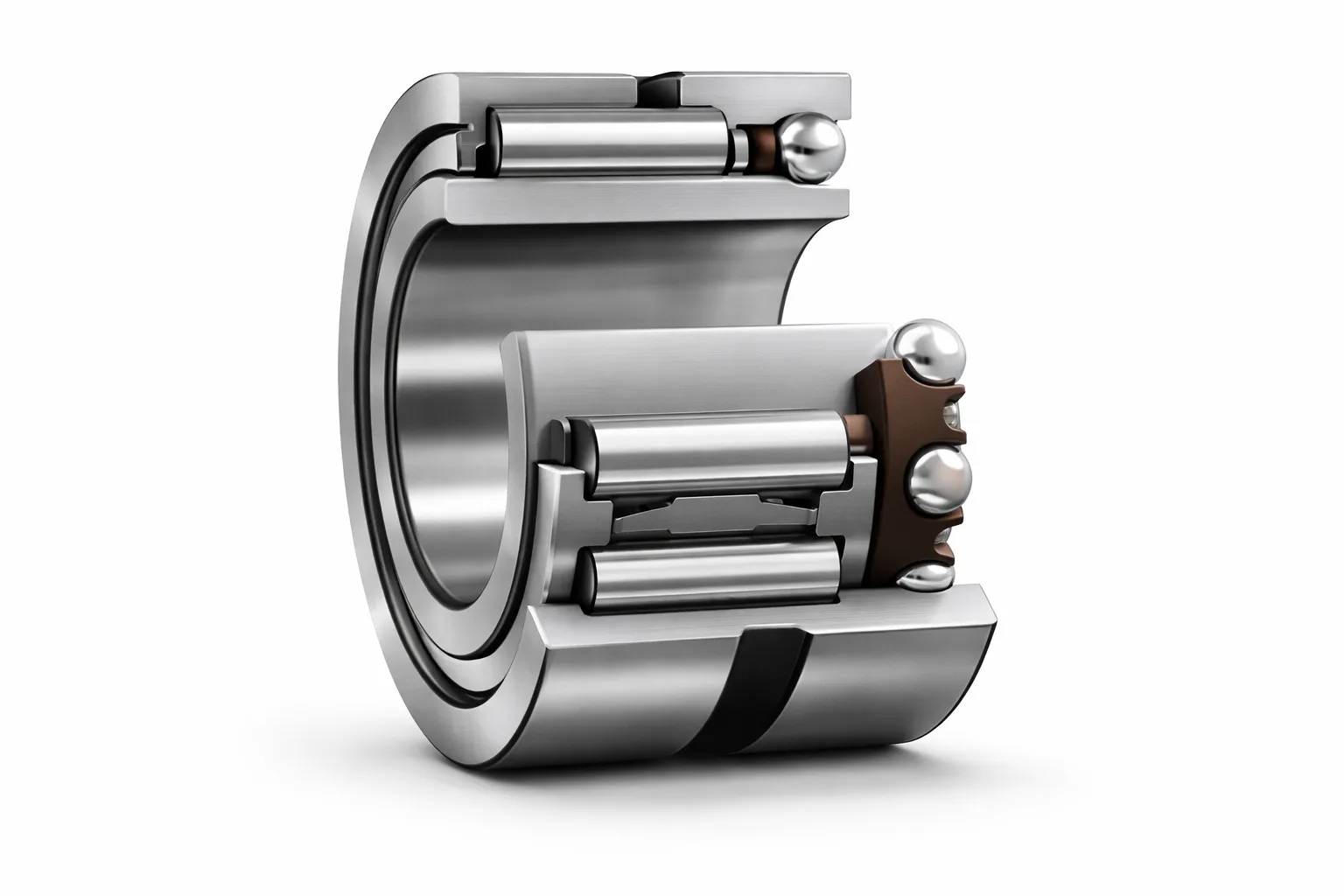

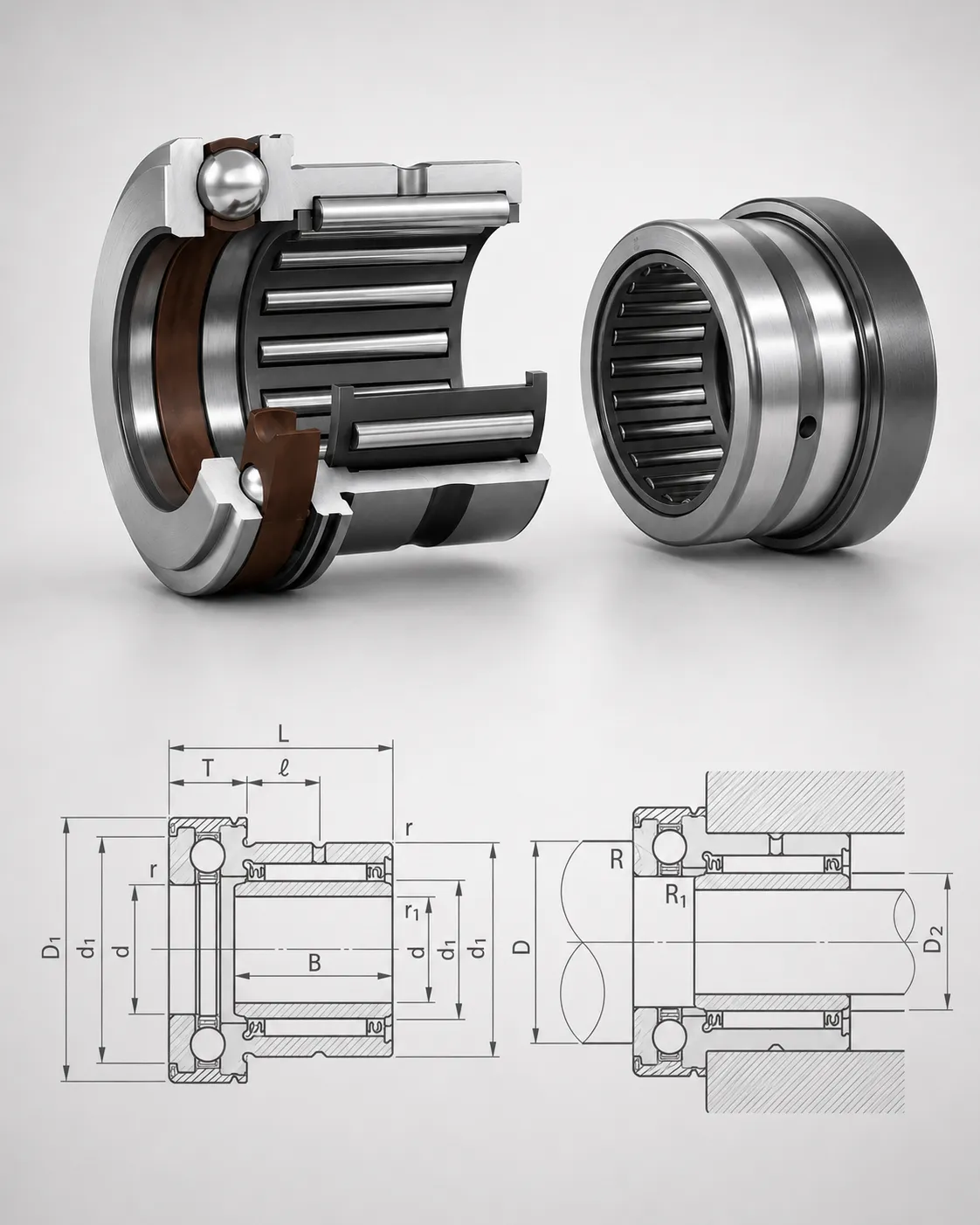

Combined Needle Roller Bearings
Combined needle roller bearings integrate radial and axial load support into one compact bearing unit. They help simplify shaft arrangements where both radial load and axial guidance are required but space does not allow separate bearings.

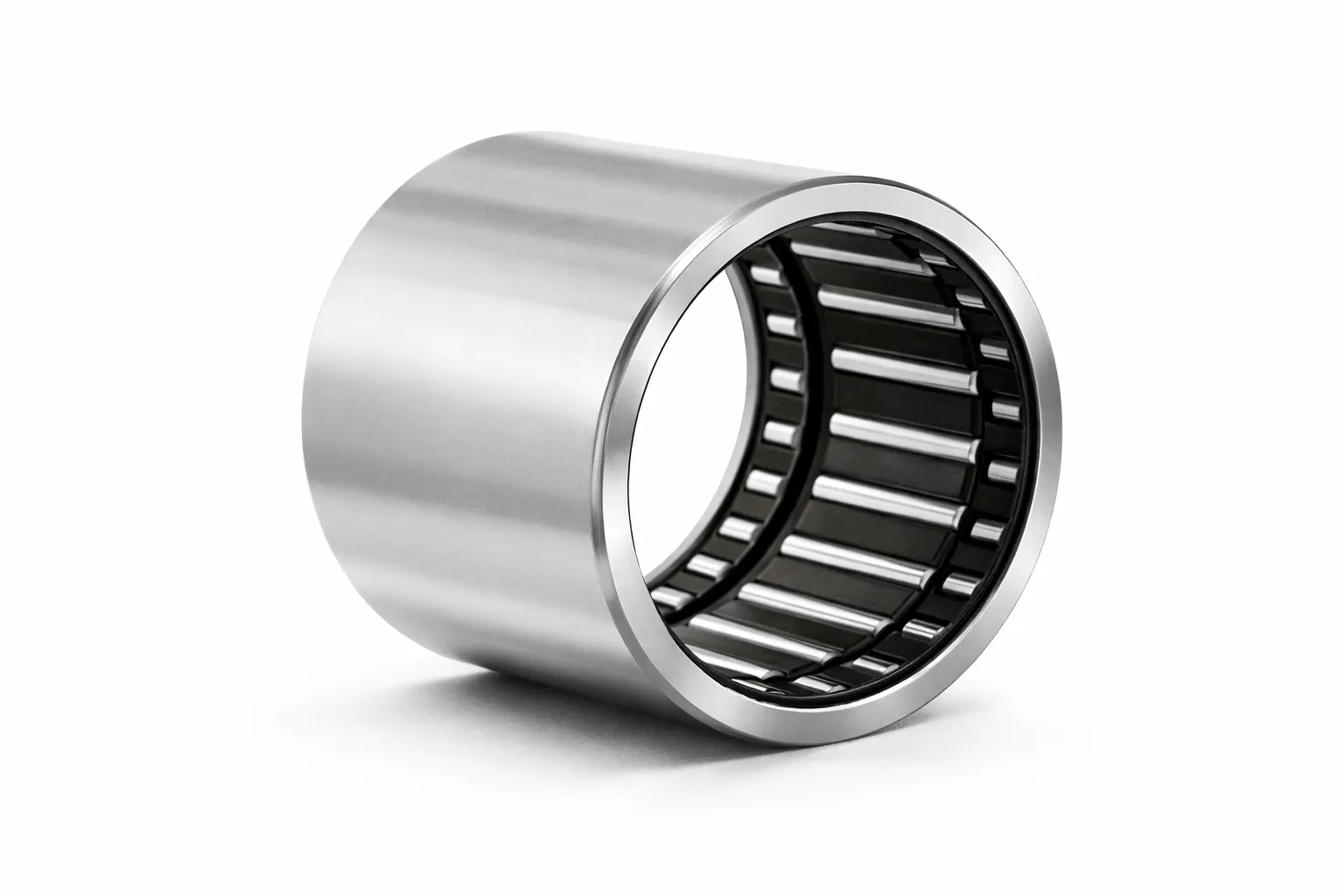

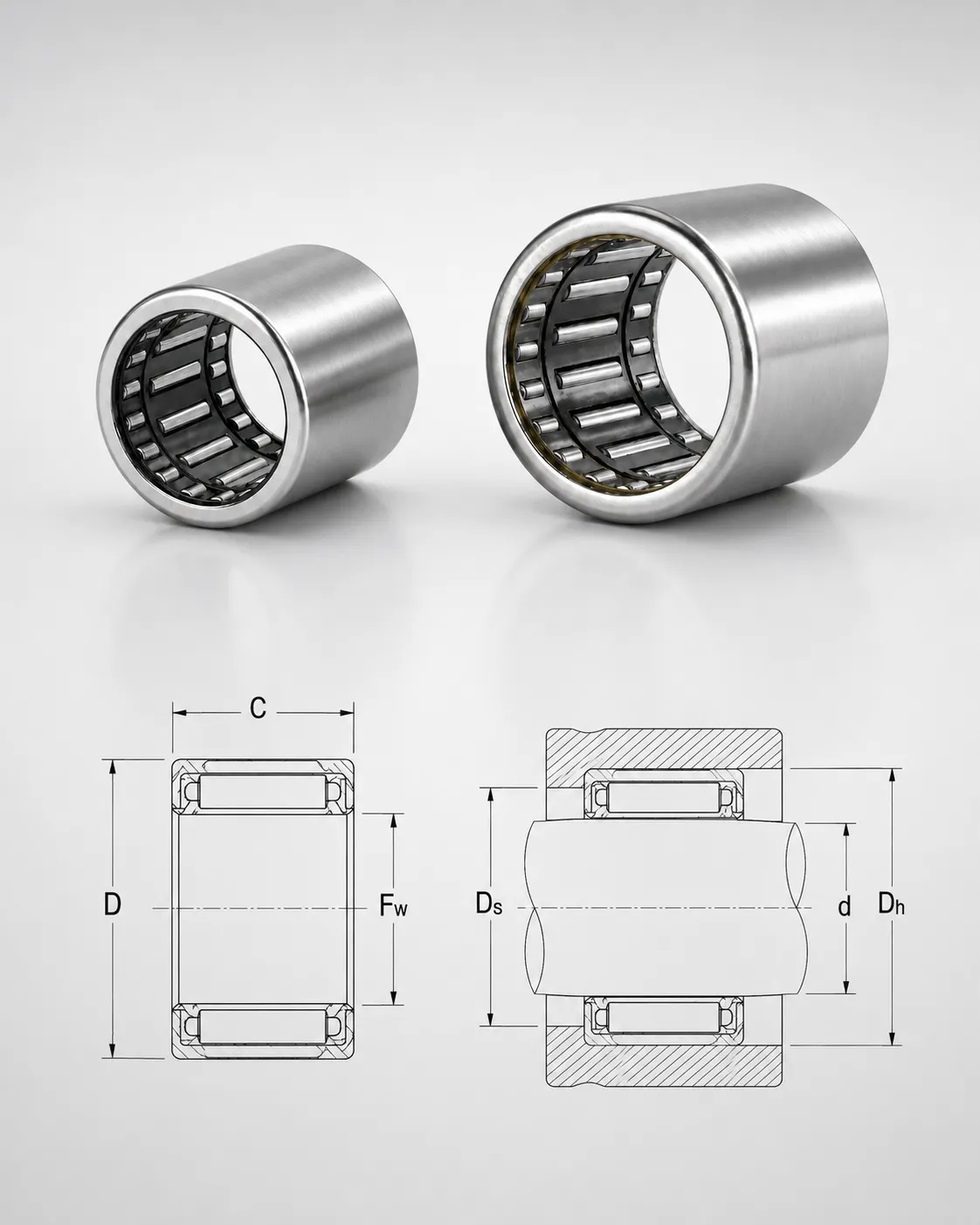

Drawn Cup Roller Clutches
Drawn cup roller clutches are compact one-way clutch units that transmit torque in one direction and allow free rotation in the opposite direction. They are suitable for compact drive systems where overrunning or indexing function is required.
- Compact drawn cup outer ring
- Starter systems, office equipment, indexing

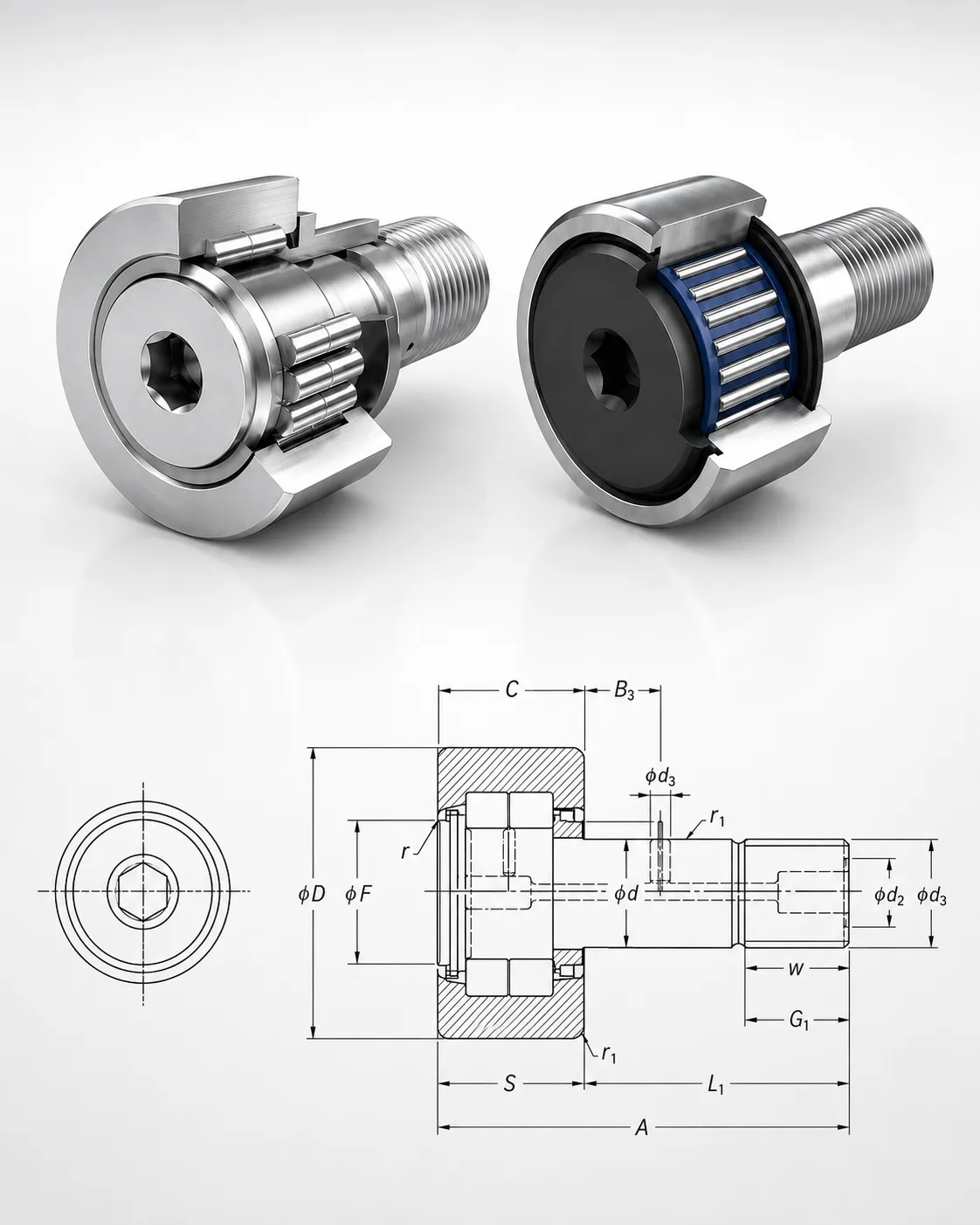

Cam Followers & Track Rollers
Cam followers and track rollers are bearing units with thick outer rings designed to run directly on cams, guide rails, or track surfaces. They are suitable for automation systems, material handling equipment, and mechanical motion guidance.
- Thick outer ring for direct rolling contact
- Can support high radial and shock loads
Which Needle Roller Bearing Fits Your Application?
| Type | Best For | Load Direction | Main Advantage | Common Series |
|---|---|---|---|---|
| Cage Assemblies | Extremely compact shaft and housing arrangements | Radial | Lowest radial section and high load capacity | K, K..ZW |
| Drawn Cup | Compact housings, automotive parts, power tools, pumps | Radial | Thin outer ring and economical press-fit installation | HK, BK, HK..RS |
| Machined Ring | Gearboxes, industrial machinery, heavier load applications | Radial | Stronger outer ring and higher rigidity | NK, NKI, NA, RNA |
| Full Complement | Heavy load and moderate-speed applications | Radial | Higher load capacity with more rollers | HN |
| Thrust Bearings | Compact axial load support | Axial | Low axial height and high stiffness | AXK, AS, WS, GS |
| Combined Bearings | Compact systems with both radial and axial loads | Radial + Axial | Two bearing functions in one compact unit | NKX, NKXR, NX |
| Roller Clutches | One-way torque transmission and overrunning mechanisms | Torque / One-way | Compact one-way clutch function | HF, HFL |
| Cam Followers | Cam mechanisms, guide rails, automation systems | Track rolling | Thick outer ring for direct rolling contact | KR, NUKR, CF |
FAQ About Needle Roller Bearings
What are needle roller bearings?
What are needle roller bearings used for?
What is the difference between drawn cup and machined ring needle roller bearings?
When should I choose a needle roller bearing with an inner ring?
What is a needle roller and cage assembly?
What are thrust needle roller bearings?
What are combined needle roller bearings?
What is a drawn cup roller clutch?
Are needle roller bearings suitable for high-speed applications?
Can needle roller bearings be customized?
How do I choose the right needle roller bearing?
Can Haron Bearing support OEM or private label needle roller bearing projects?
Need Help Choosing the Right Needle Roller Bearing?
Tell us your bearing model, shaft diameter, housing bore, load direction, speed, lubrication method, sealing requirement, application industry, and target quantity. Haron Bearing can help recommend suitable needle roller bearings for gearboxes, transmissions, pumps, compressors, power tools, machinery equipment, and OEM projects.
