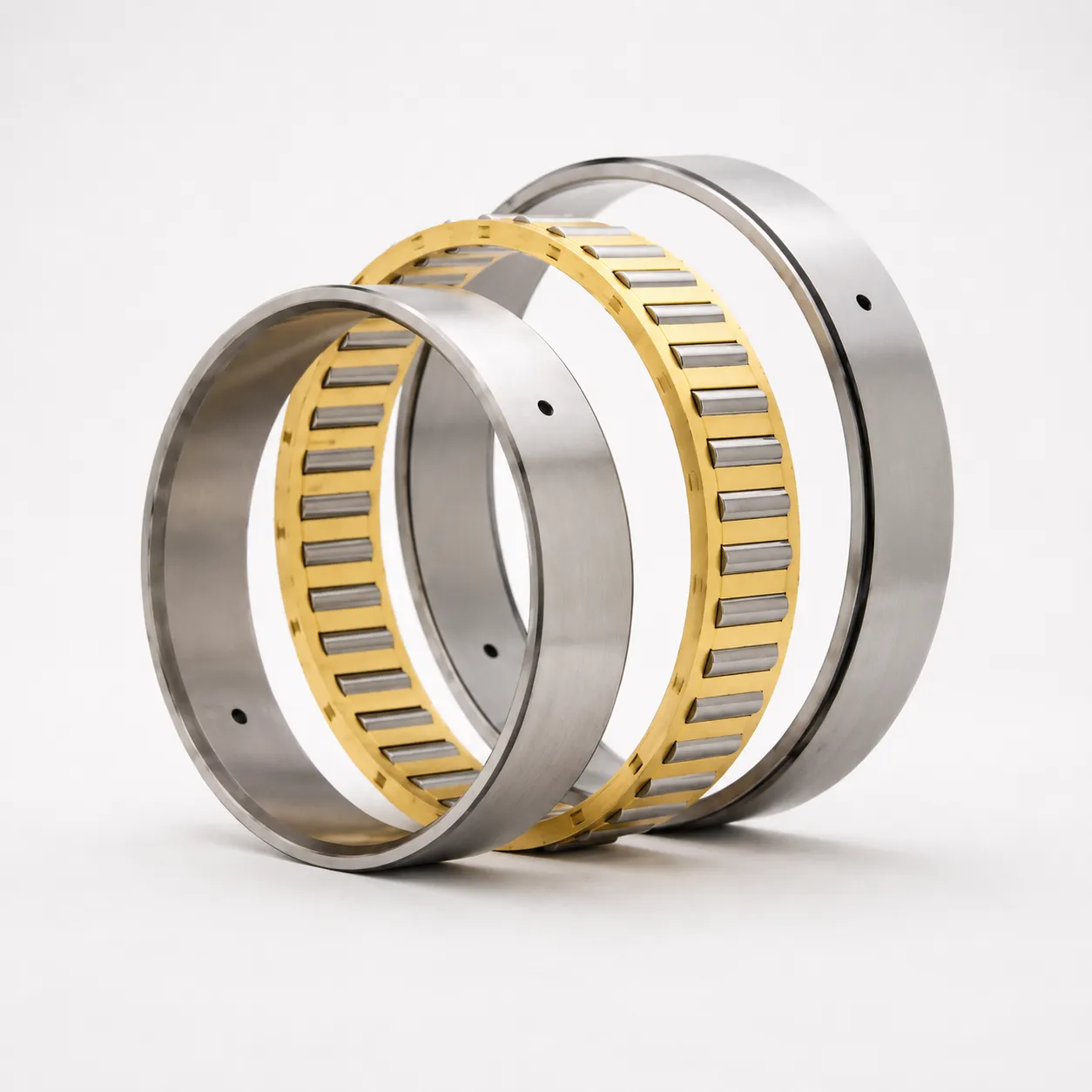

Cylindrical Roller Bearings
High radial load cylindrical roller bearing solutions for motors, gearboxes, pumps, compressors, machine tools, steel mills, robots, and heavy-duty industrial equipment.
Explore single row, double row, full complement, high-capacity, precision, sealed, and custom cylindrical roller bearings designed for high radial load, rigid shaft support, axial positioning, floating-end arrangements, and demanding industrial applications.
100+ Advanced Production Lines
High-precision manufacturing with P2 level capability, ensuring stable and reliable quality from raw materials to finished products.
Cylindrical Roller Bearing Manufacturer
Haron Bearing supports global industrial buyers with cylindrical roller bearings for motors, gearboxes, machinery, automation equipment, heavy-duty systems, and OEM projects. With precision machining, strict inspection, flexible customization, and stable supply capability, we help customers select the right bearing structure for real working conditions.
20+ Years Experience
Long-term support for industrial bearing supply and OEM projects.
P0 to P2 Precision
Precision grades available for different machine accuracy requirements.
OEM / ODM Custom Support
Support for non-standard dimensions, cage options, clearance, and private label.
Strict Quality Inspection
Dimension, noise, vibration, hardness, and clearance check before shipment.
How to Choose the Right Cylindrical Roller Bearing
Follow this engineering-focused 6-step process to ensure the correct bearing selection for your industrial application.
Confirm Load Direction
- Mainly radial load
- Radial load with one-way axial load
- Radial load with two-way axial positioning
- Heavy radial load with limited speed
Cylindrical roller bearings are mainly designed for radial loads. However, different rib arrangements allow some structures to support one-way or two-way axial positioning.
Decide Arrangement
- Floating-end bearing
- Fixed-end bearing
- Axial displacement required
- Thermal expansion compensation
NU and N types are commonly used as floating-end bearings. NJ/NF support one-way, while NUP/NH support two-way axial positioning.
Choose Structure
- NU, N, NJ, NF, NUP, NH Type
- NN, NNU Type (Double Row)
- Full Complement Type
- Sealed or Precision Type
Each structure has a different rib design, load direction ability, assembly method, and application range.
Confirm Conditions
- Radial & Axial load limits
- Speed & Shock load
- Operating temperature
- Shaft deflection
Cage-guided types are better for higher speed. Full complement types provide higher load capacity for lower-speed heavy-duty applications.
Select Parameters
- Steel / Brass / Polyamide cage
- C3 / C4 clearance
- P0 / P6 / P5 / P4 / P2 precision
- Grease or oil lubrication
Cage material, clearance, precision grade, and lubrication method affect bearing speed, heat generation, vibration, and service life.
Confirm Custom Needs
- Bearing model & Dimension
- OEM / ODM & Brand requirement
- Drawing or sample
- Packaging & Delivery
For OEM projects, buyers should provide bearing model, size, application, load, speed, temperature, and lubrication information before quotation.

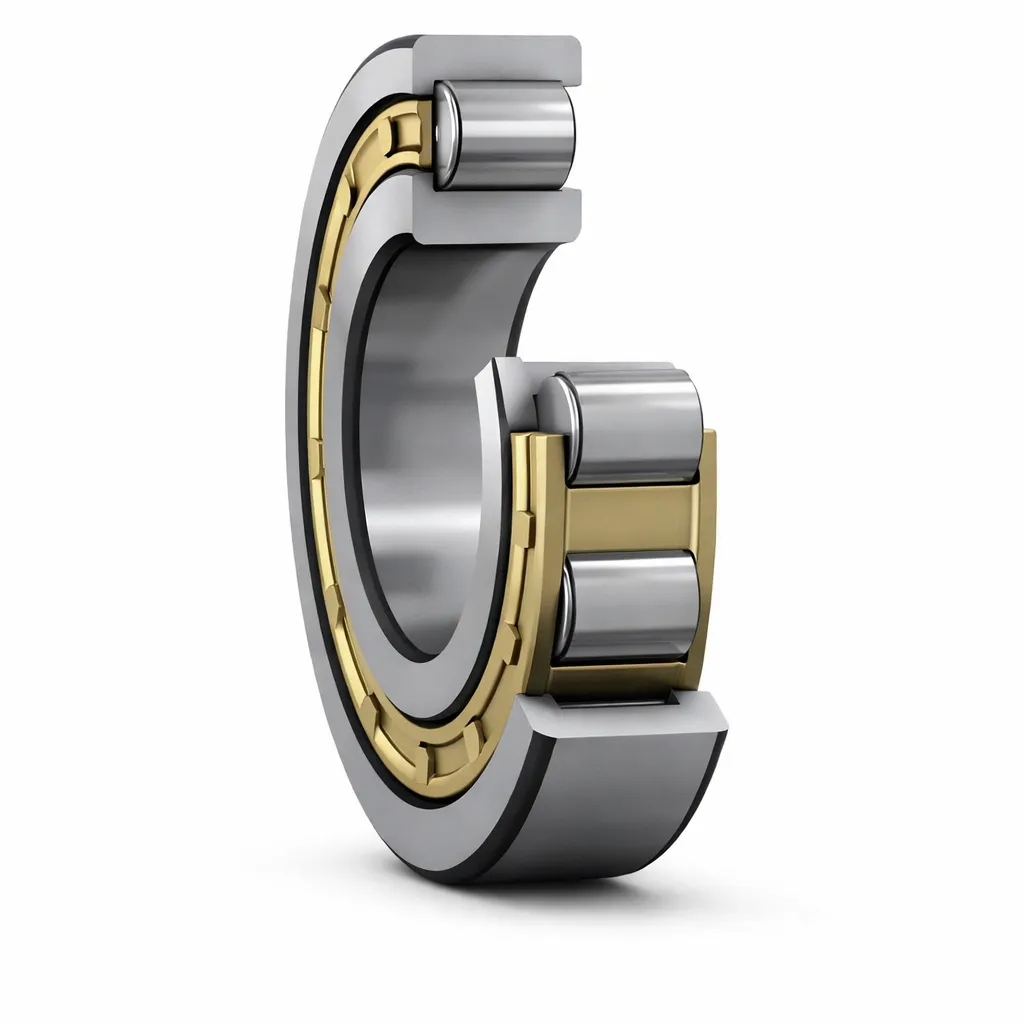

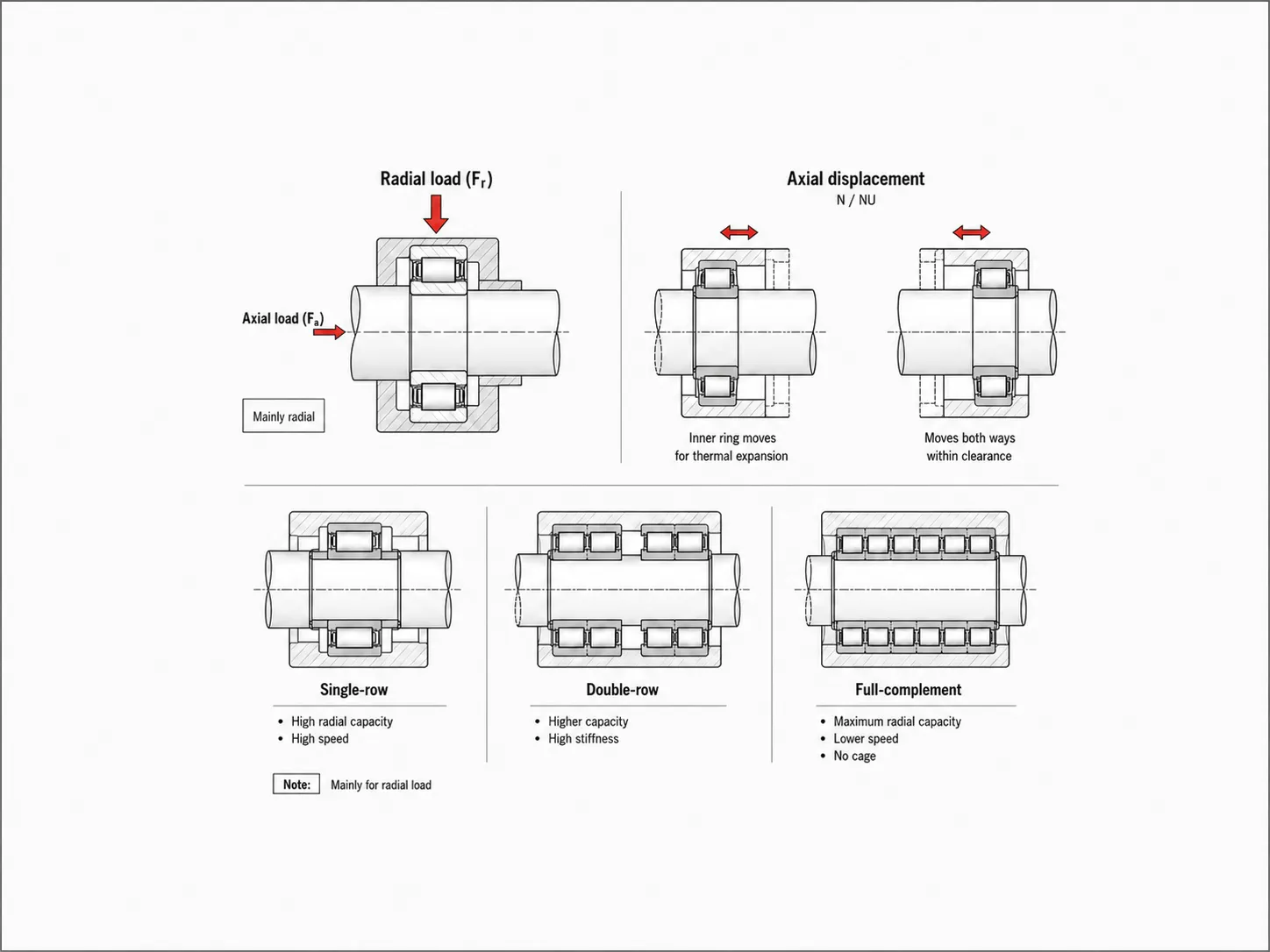

Understand Load Direction and Bearing Structure
Application
Electric Motors
Gearboxes

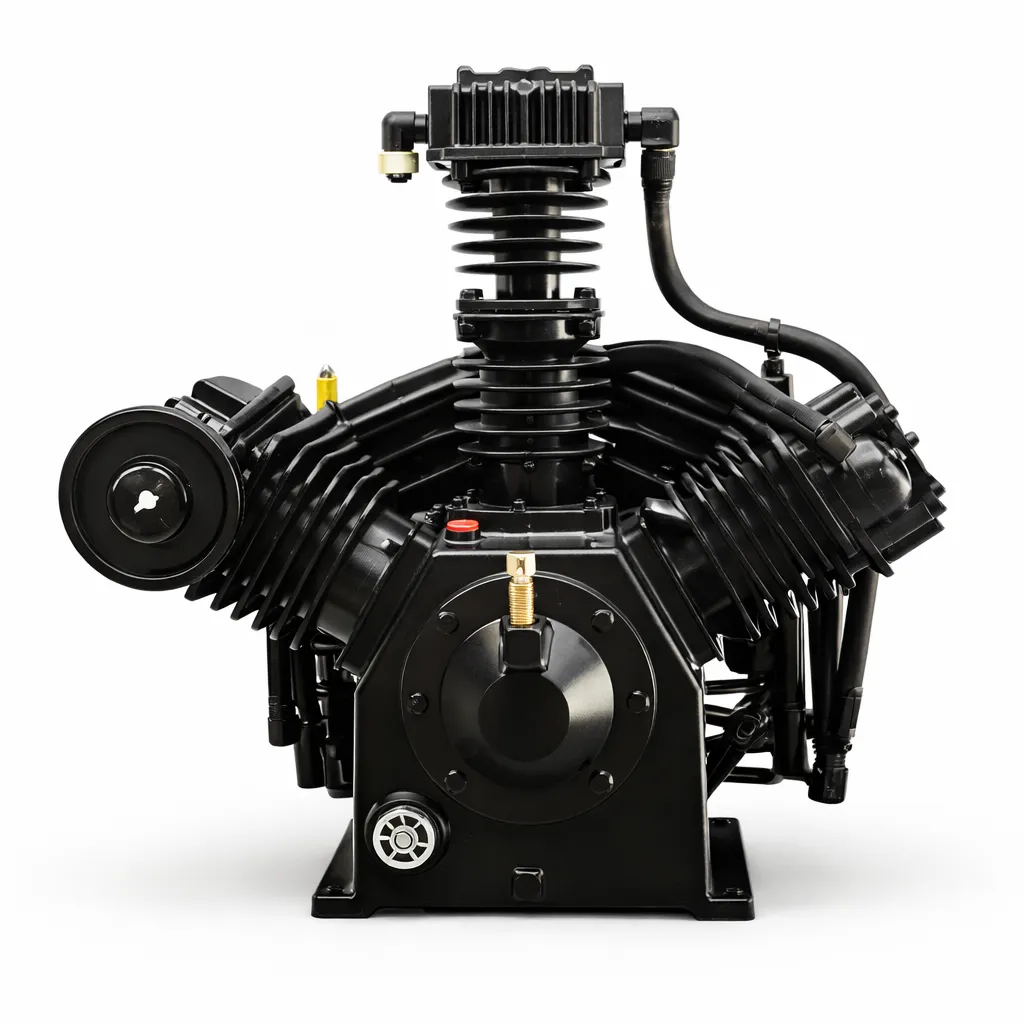

Pumps & Compressors

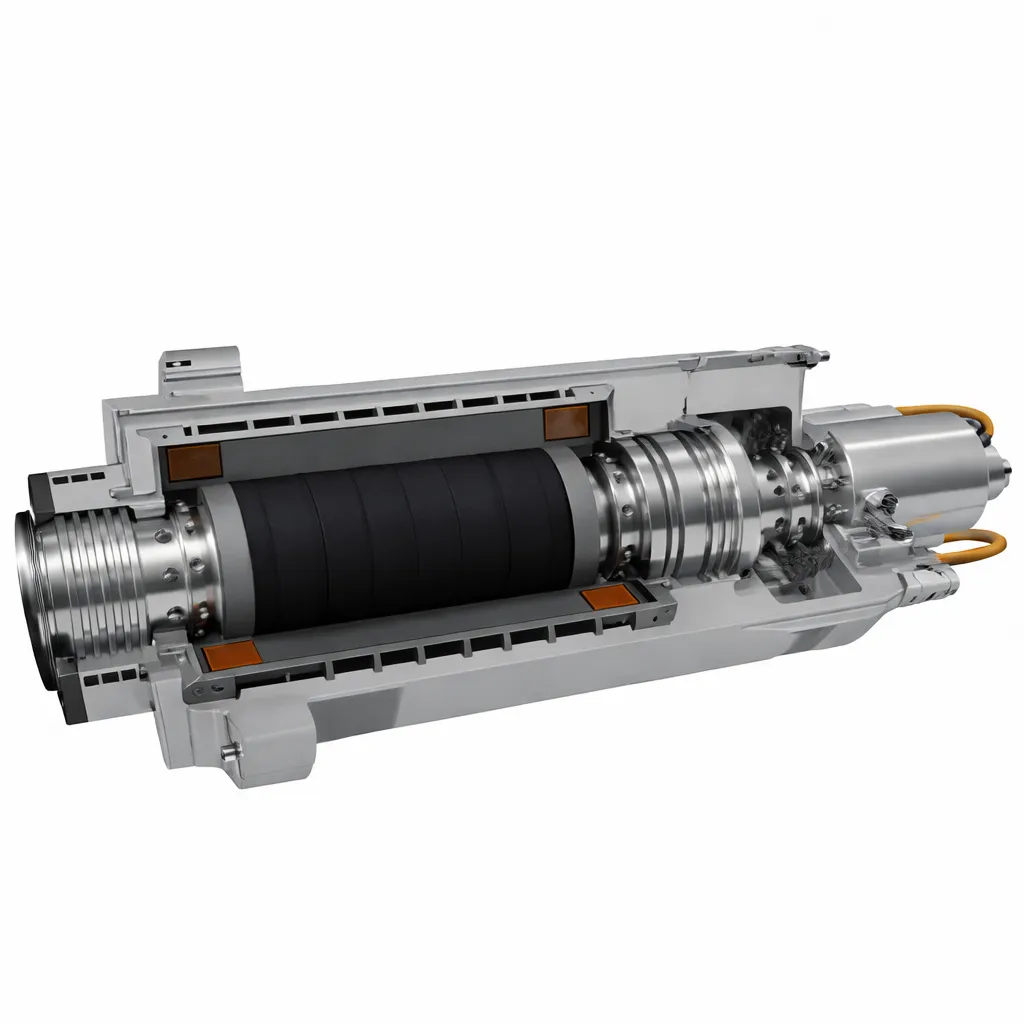

Machine Tool Spindles

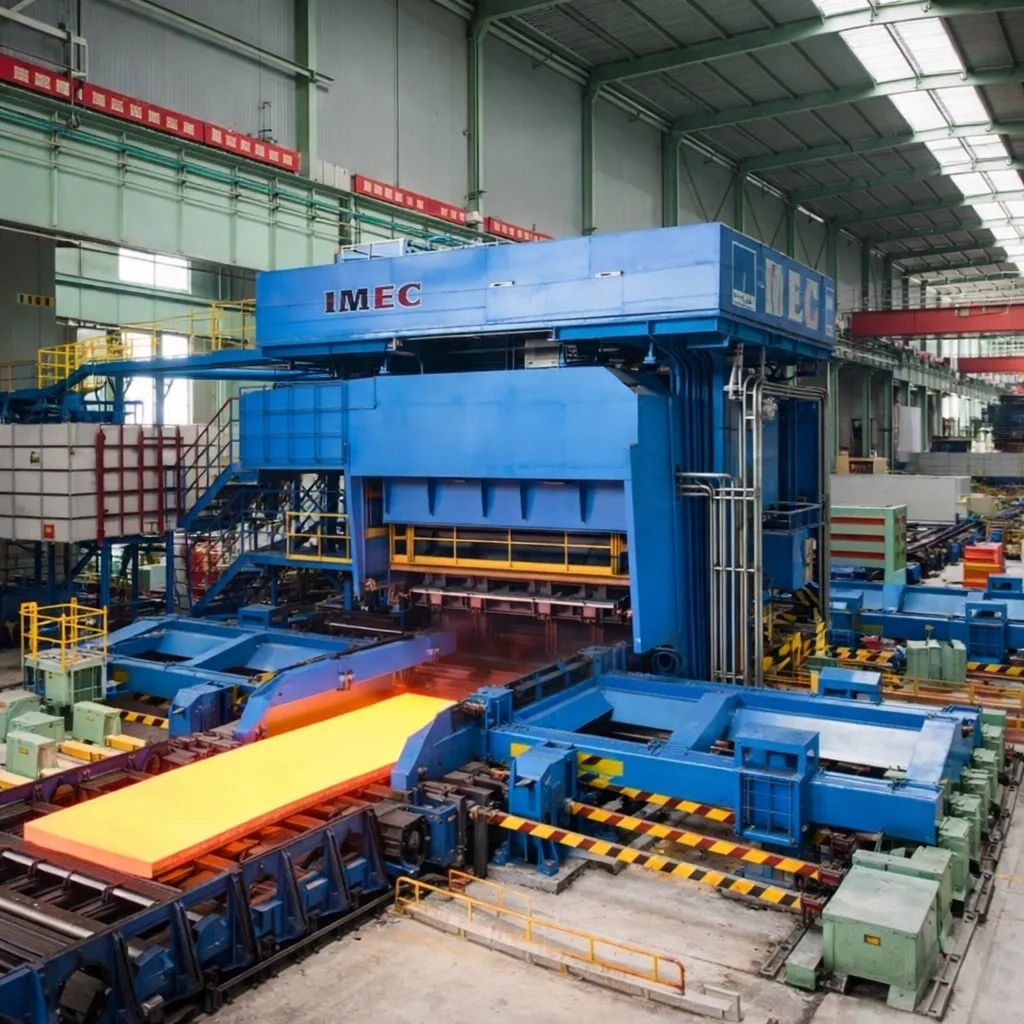

Steel Rolling Mills

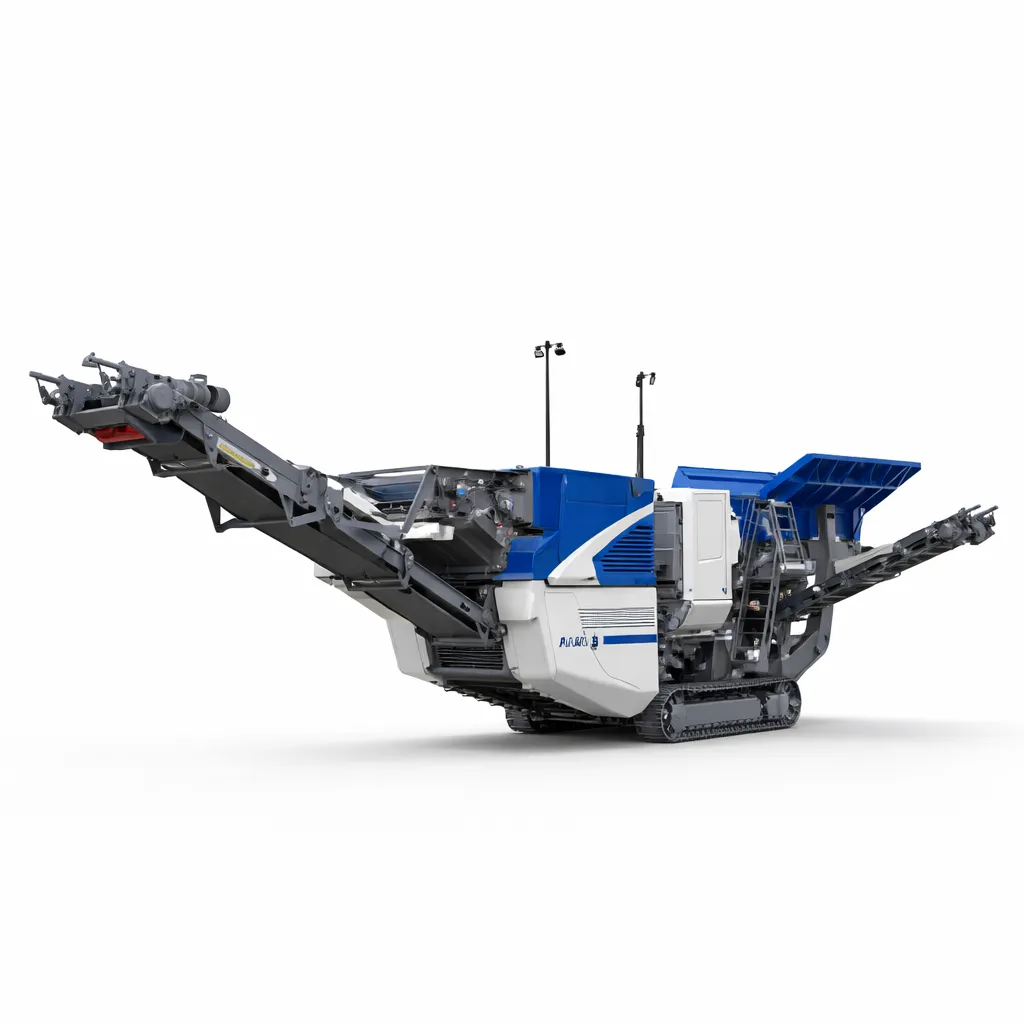

Mining Machinery
Construction Machinery
Industrial Robots

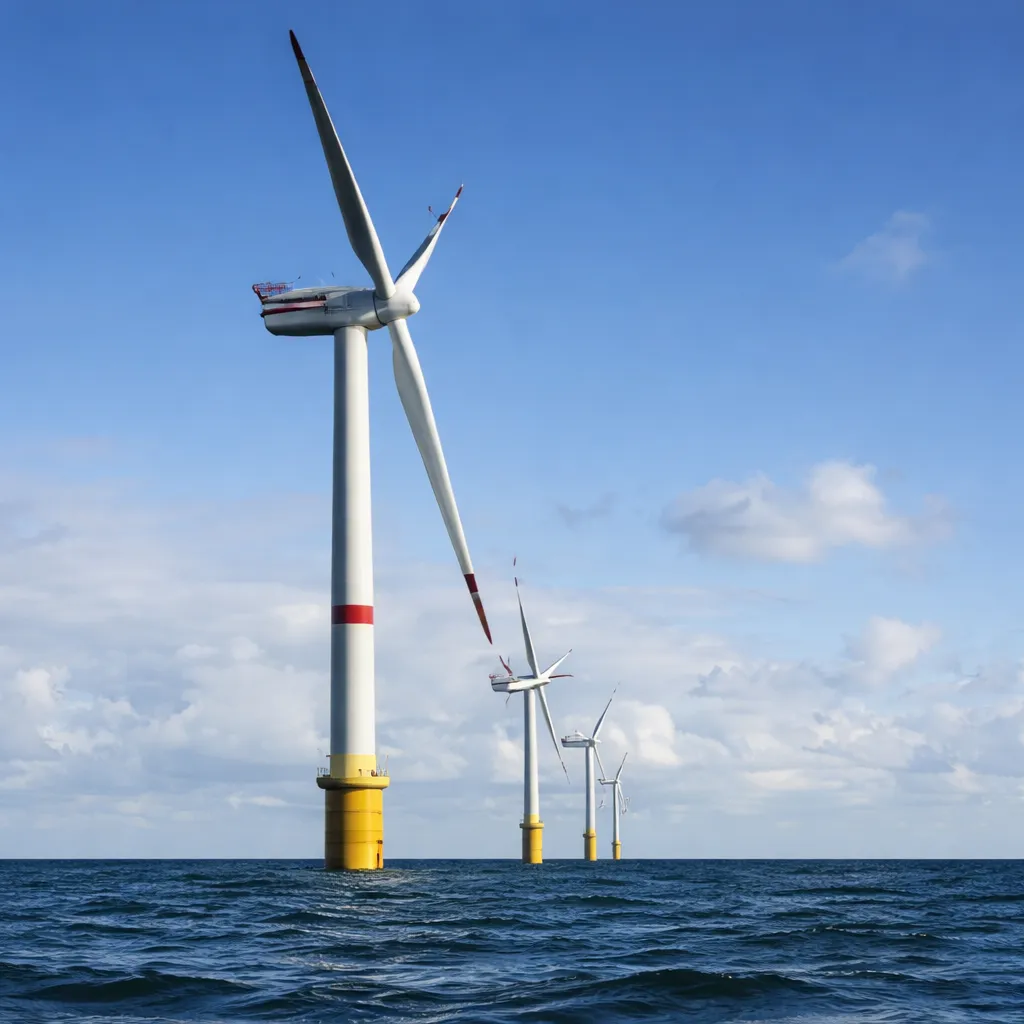

Wind Power Equipment
Cylindrical Roller Bearing Categories
Single Row
General purpose, high radial load.
Explore Type →Double Row
High rigidity, precision support.
Explore Type →Full Complement
Max load capacity, lower speed.
Explore Type →High-Capacity
Enhanced design for compact spaces.

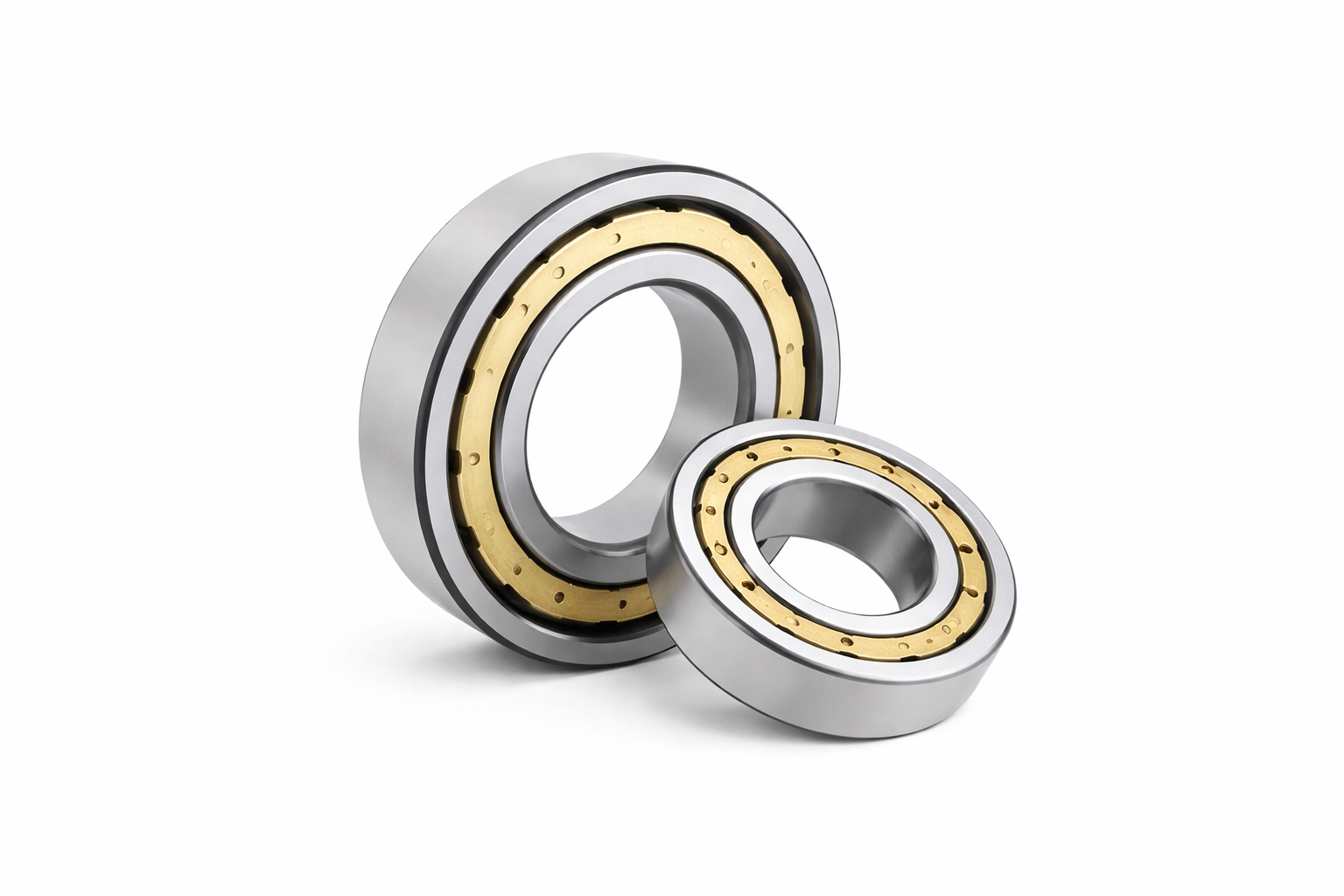

Explore Type →Precision
Machine tools and accurate rotation.
Explore Type →With Cage
Steel, brass, polyamide options.
Explore Type →Sealed
Protection against contamination.
Explore Type →Custom Solutions
OEM, special dimensions, private label.
Explore Type →

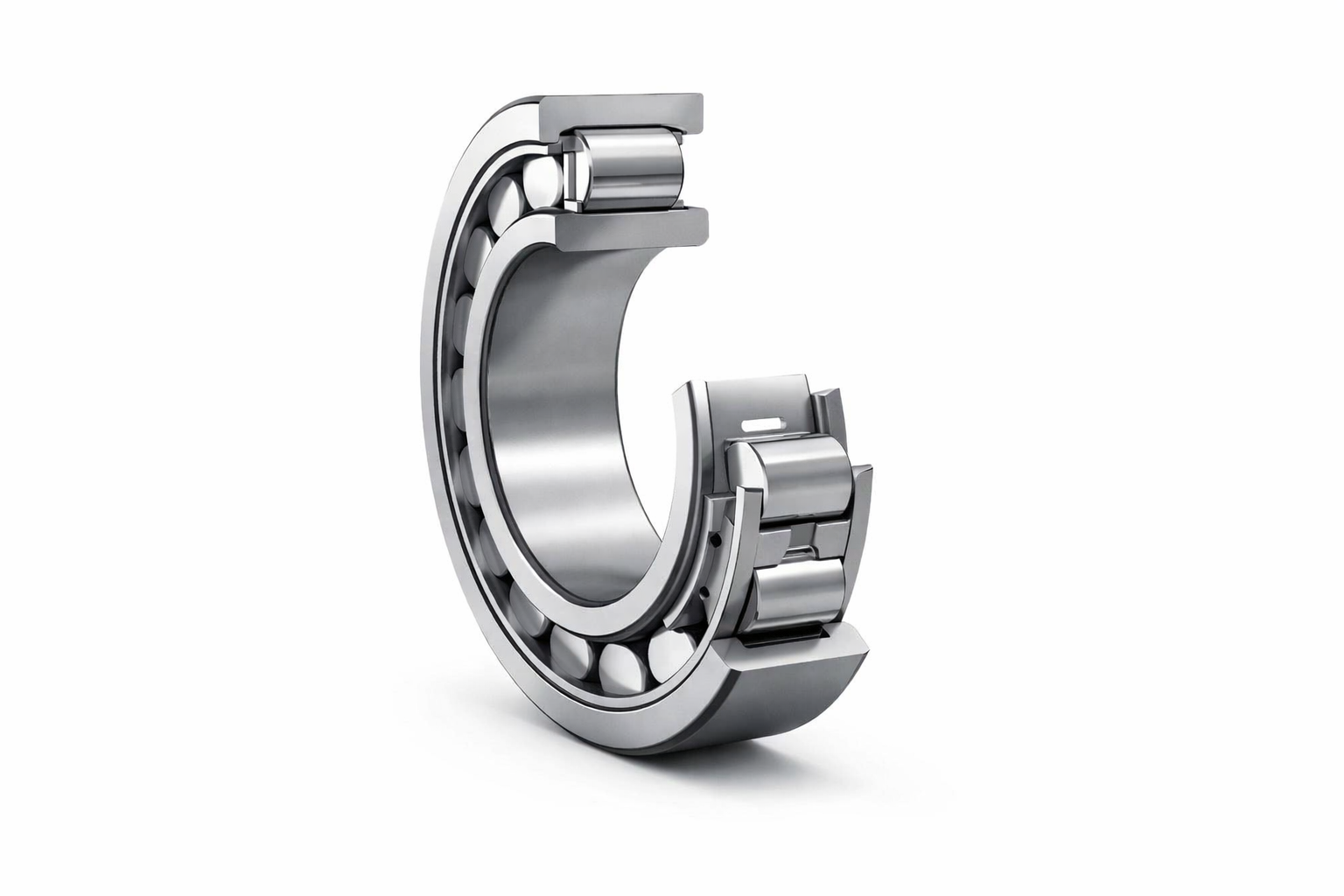

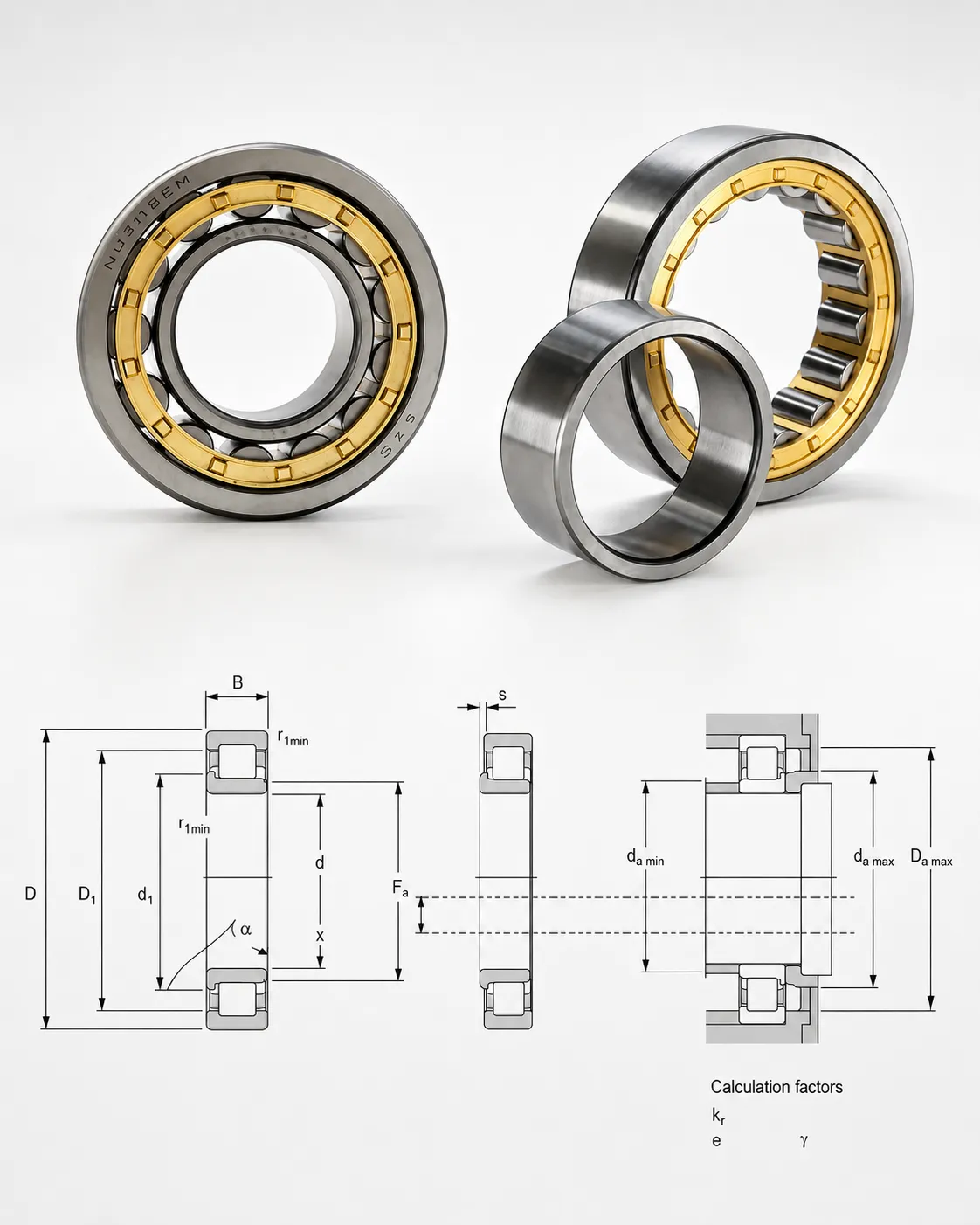

Single Row Cylindrical Roller Bearings
Single row cylindrical roller bearings are widely used in industrial machinery where high radial load capacity, stable shaft support, and flexible bearing arrangement are required. Different rib designs such as N, NU, NJ, NF, NUP, and NH allow floating-end support, one-way axial positioning, or two-way axial locating functions.
Common Types
NU, N, NJ, NF, NUP, NH
Load Logic
Radial load + axial positioning depending on rib.

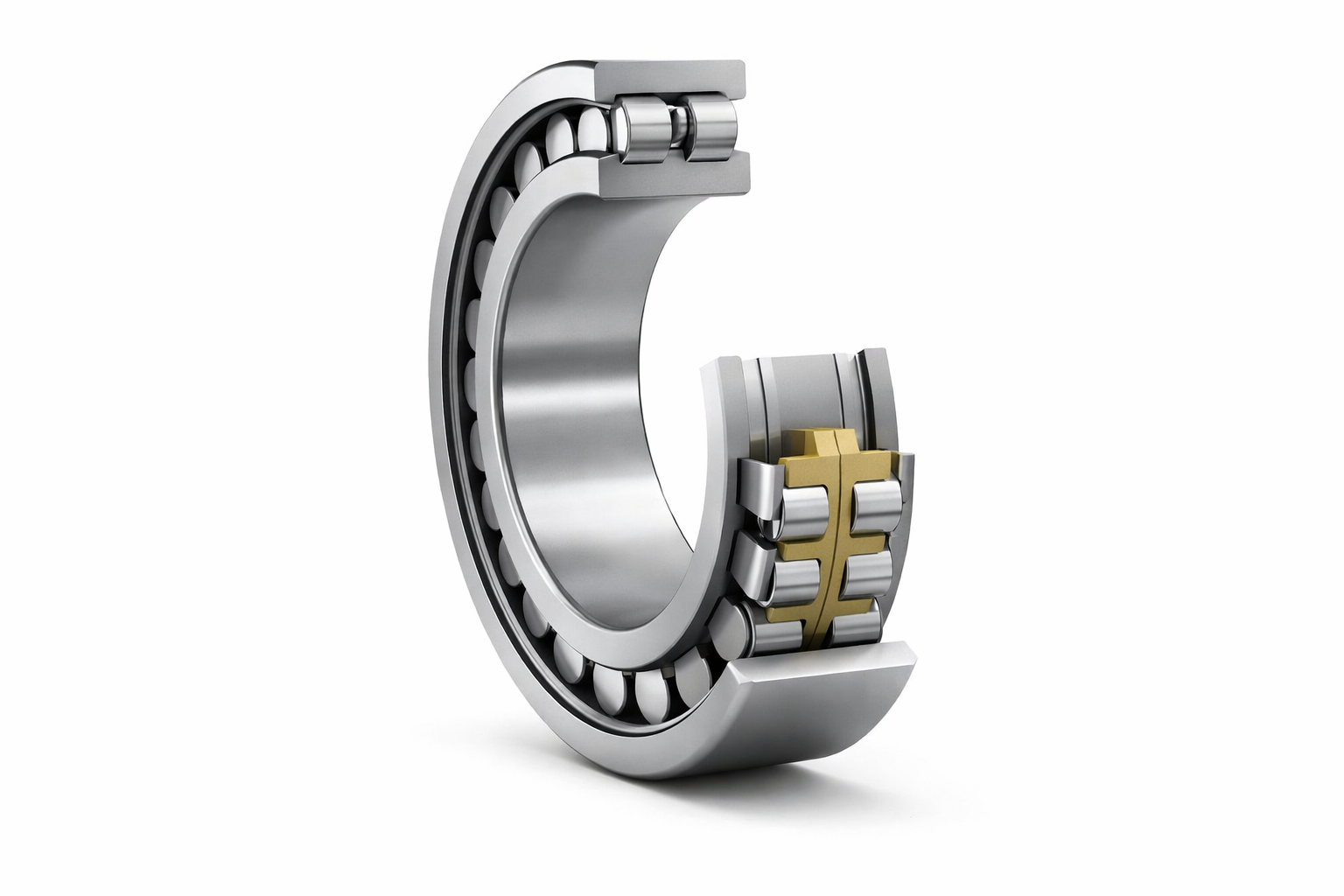

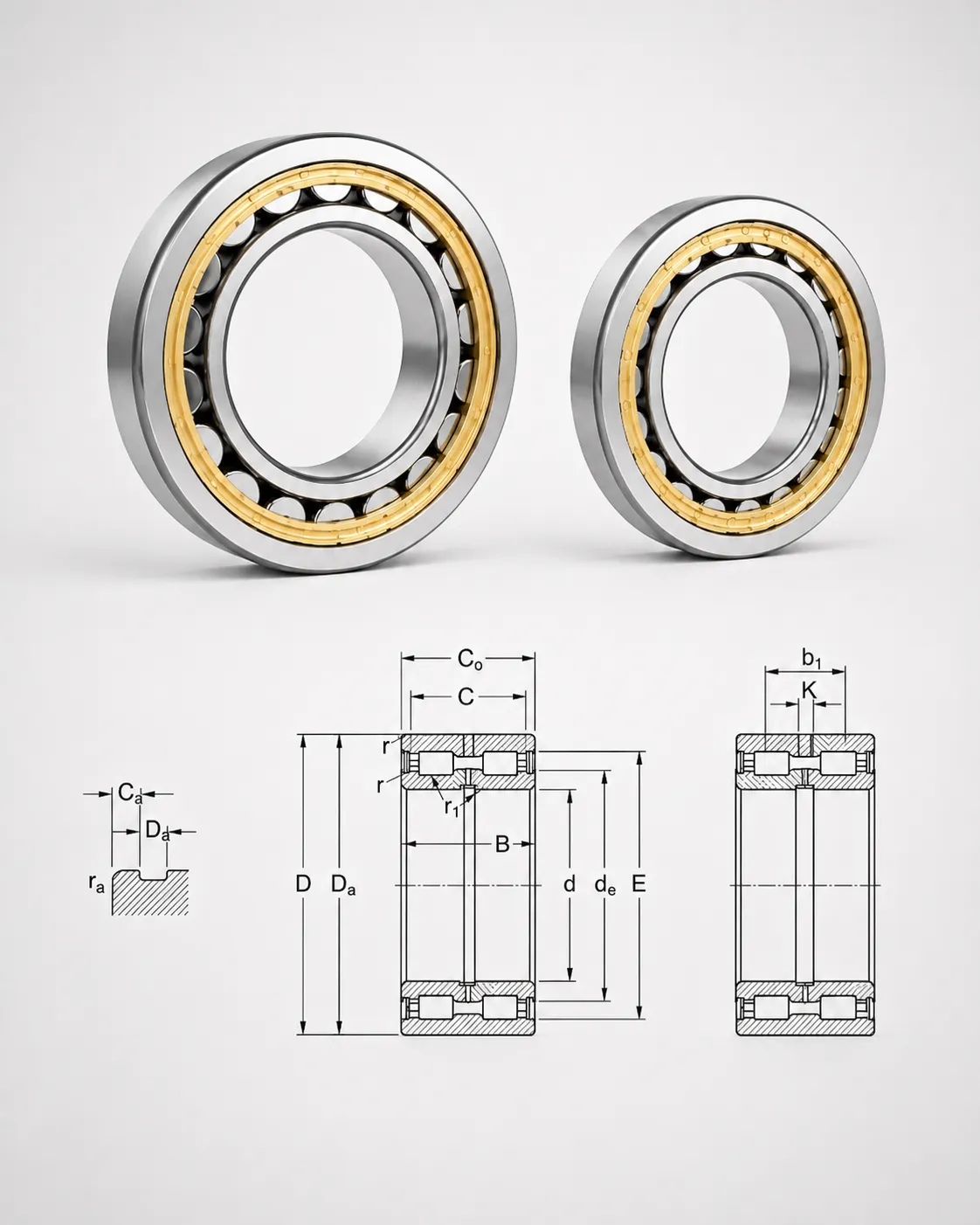

Double Row Cylindrical Roller Bearings
Double row cylindrical roller bearings are designed for applications requiring high radial stiffness, precise shaft support, and stable operation under demanding load conditions. NN and NNU types are commonly used in machine tool spindles, rolling mills, precision equipment, and heavy industrial systems.
Common Types
NN, NNU
Best For
High rigidity, precision spindle support.

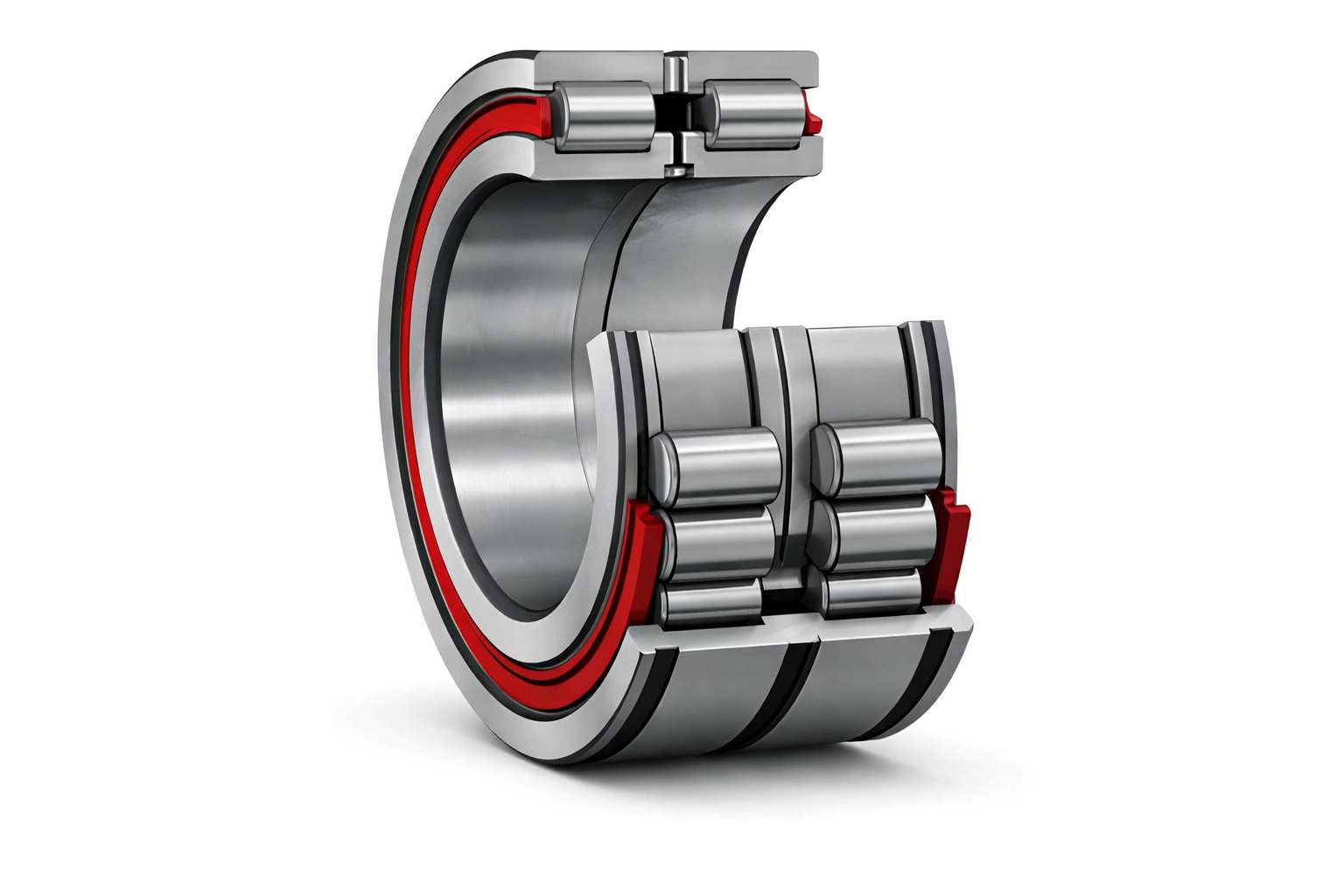

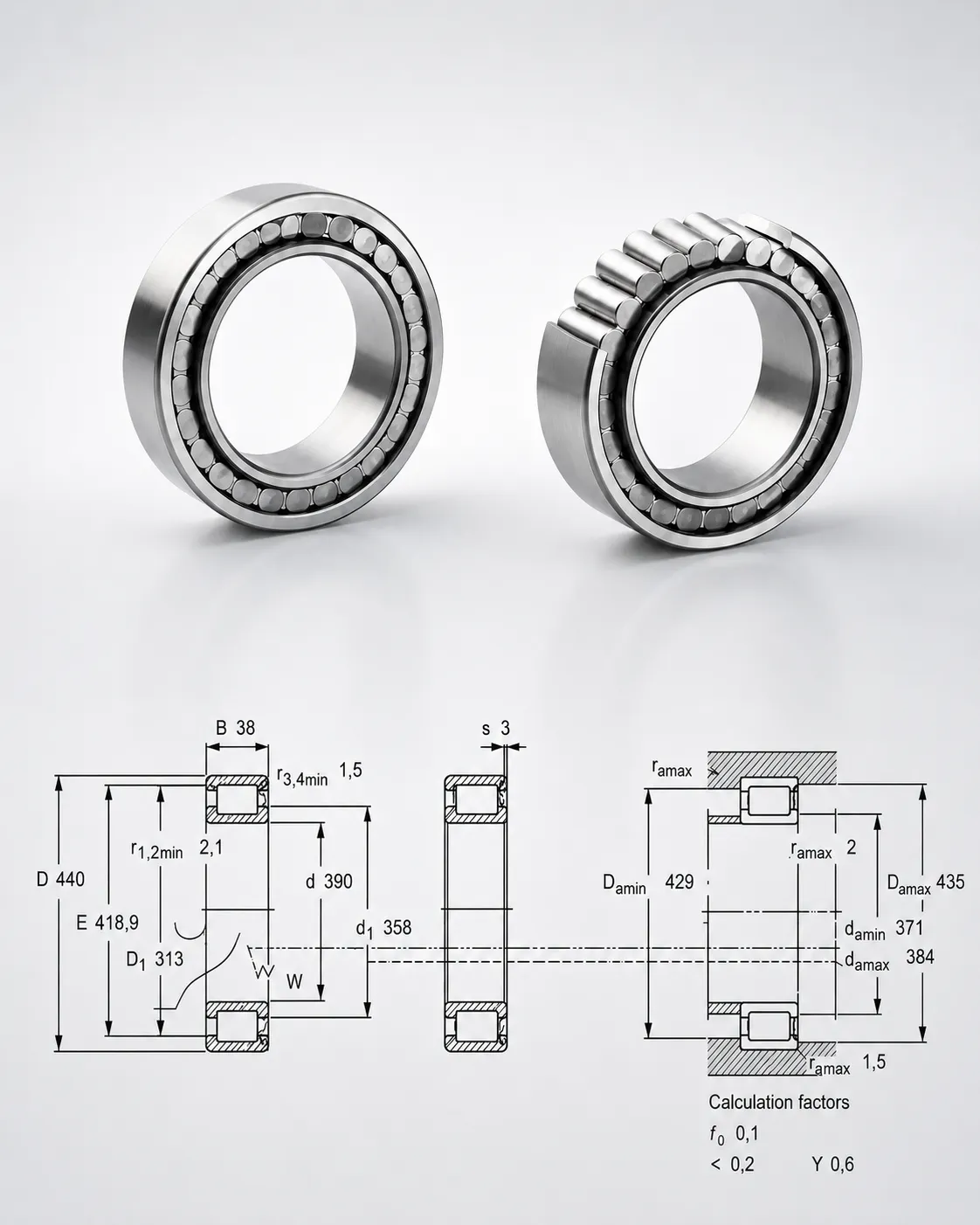

Full Complement Cylindrical Roller Bearings
Full complement cylindrical roller bearings are suitable for applications where maximum radial load capacity is more important than high-speed performance. They are often used in steel mills, mining machinery, construction machinery, and other heavy-duty industrial equipment.
Structure
Maximized rollers, no traditional cage.
Load Logic
Very high radial load capacity, lower speeds.

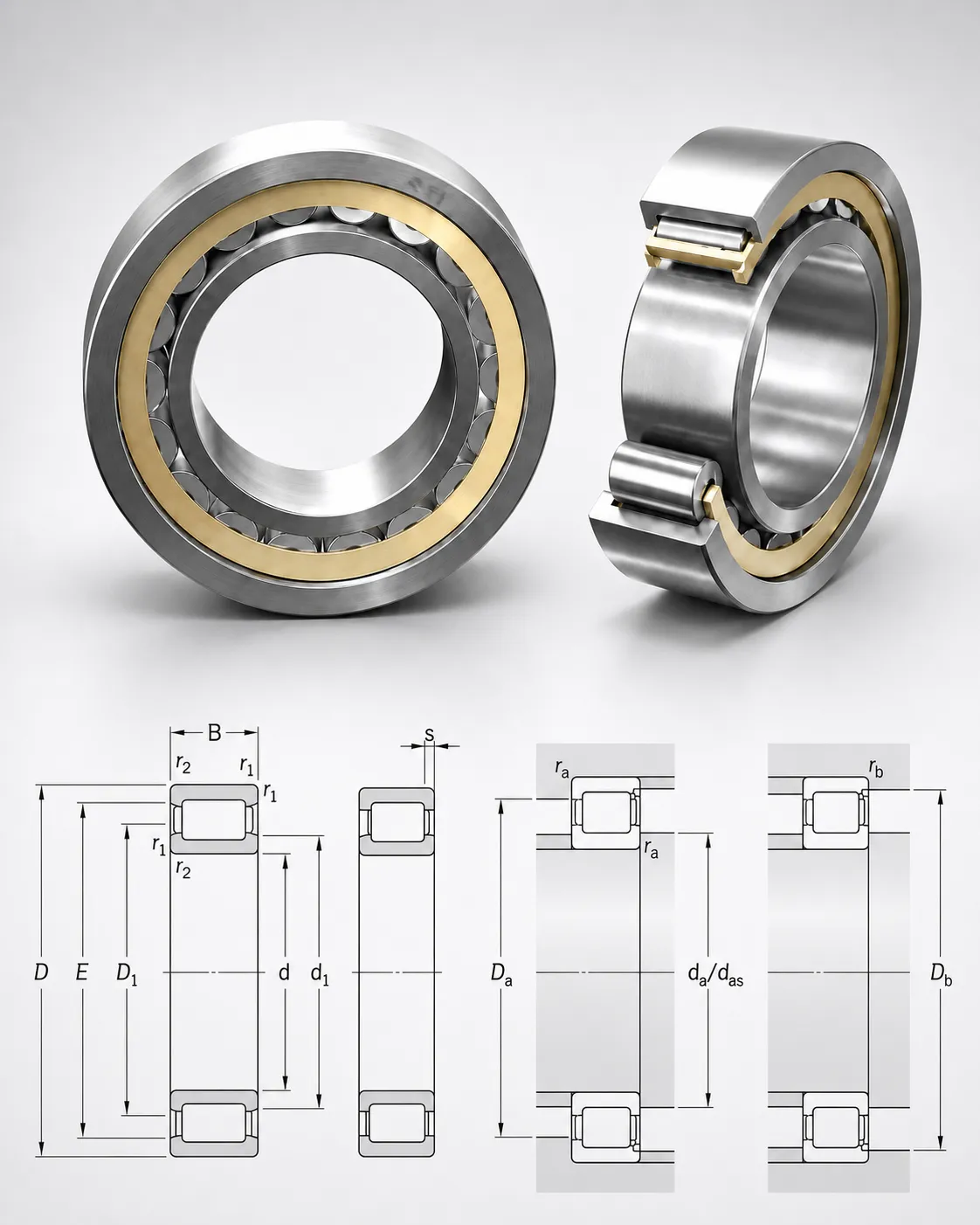

High-Capacity Cylindrical Roller Bearings
High-capacity cylindrical roller bearings help customers achieve stronger radial load performance within limited installation space. They are suitable for gearboxes, industrial drives, heavy-duty motors, wind power systems, and compact machinery designs.
Design Feature
Optimized internal geometry, reinforced rollers.
Advantage
Higher dynamic load rating in standard sizes.
Cylindrical Roller Bearings with Cage
Cage selection affects bearing speed, temperature, lubrication performance, and long-term reliability. Steel cages are common for general applications, brass cages are suitable for heavy-duty or high-temperature use, and polyamide cages may be selected for lower friction and lighter-duty high-speed applications.
Steel Cage
General industrial use, good balance of strength and speed.
Brass Cage
Heavy-duty, high vibration, or high-temperature applications.
Polyamide Cage
Lower friction, quiet operation, specific high-speed needs.

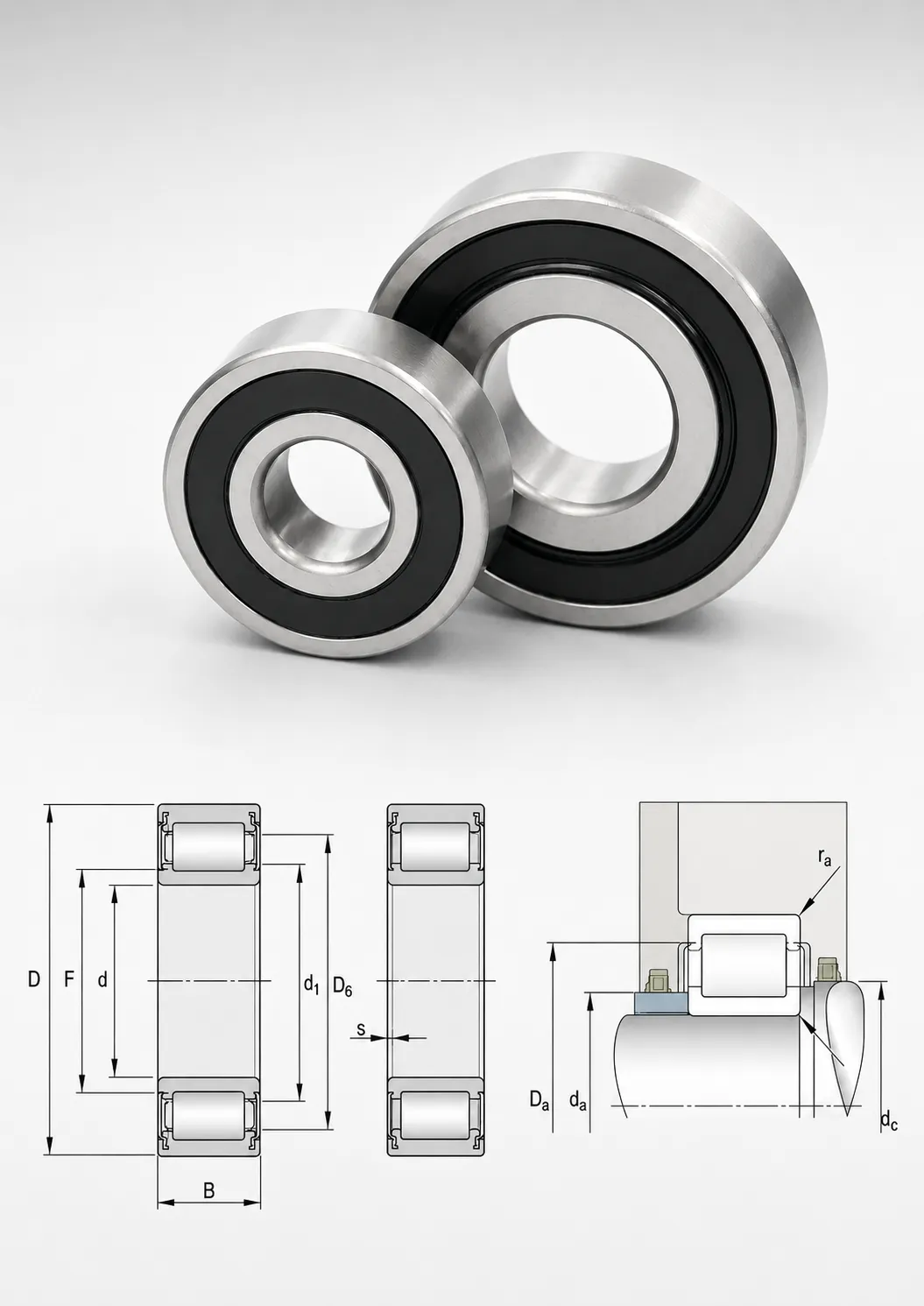

Sealed Cylindrical Roller Bearings
Sealed cylindrical roller bearings are used in applications where dust, moisture, grease leakage, or maintenance access may affect bearing life. They are suitable for construction machinery, mining equipment, agricultural machinery, and heavy-duty equipment.
Protection
Single or double-sealed options available.
Advantage
Reduced maintenance in contaminated environments.

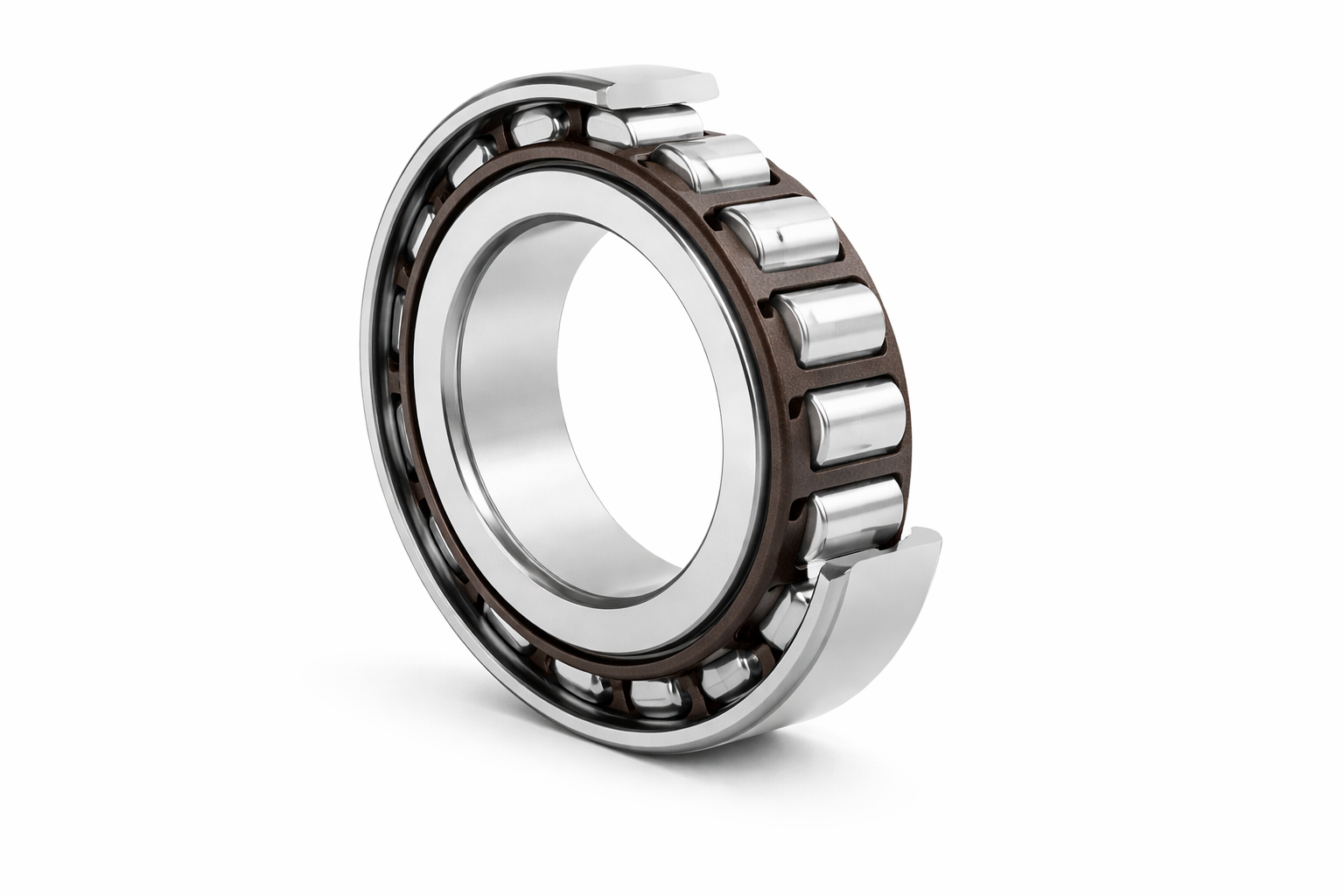

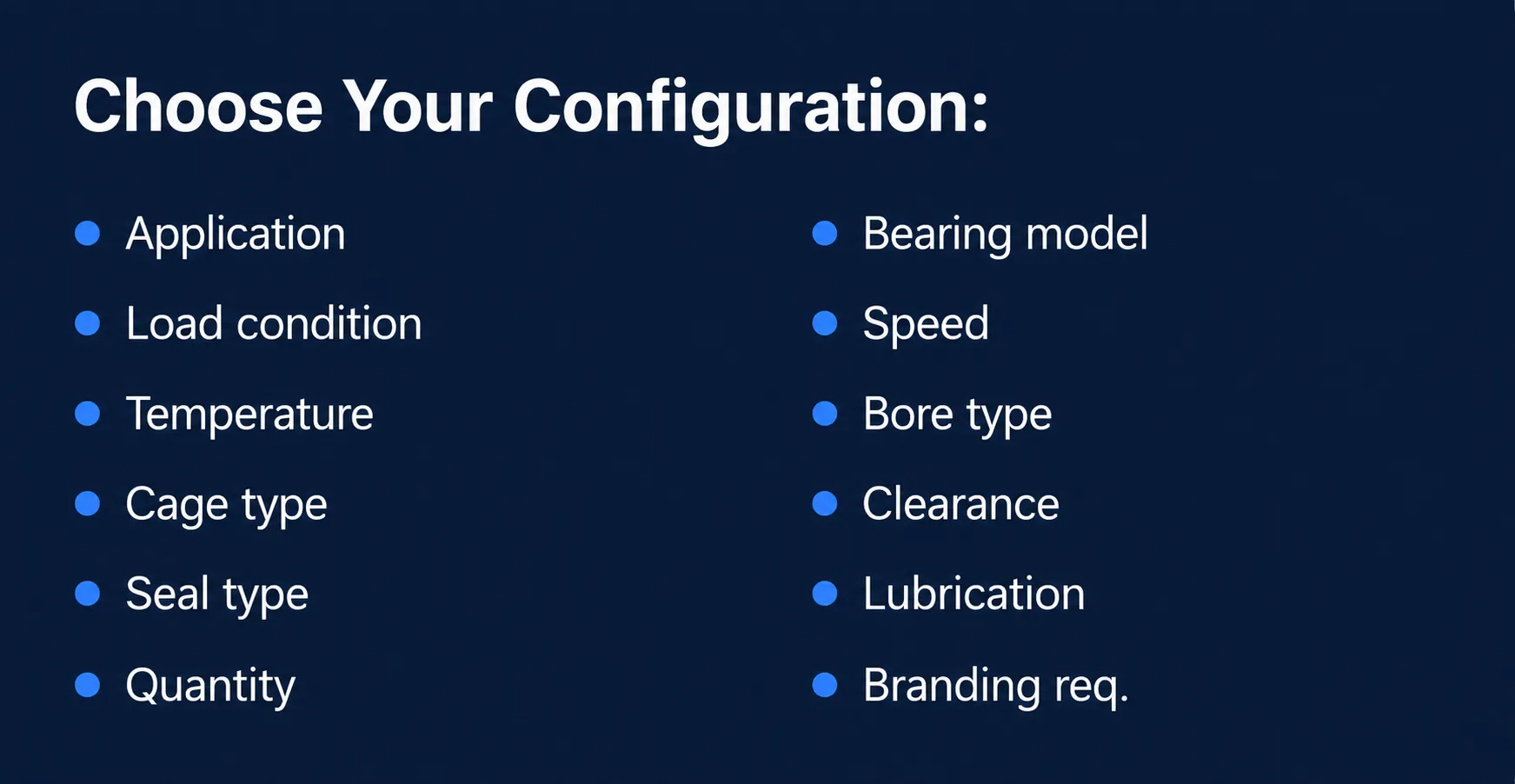

Custom Cylindrical Roller Bearing Solutions
For OEM projects, replacement programs, machinery manufacturers, and industrial distributors, Haron Bearing can support custom cylindrical roller bearing solutions based on drawings, samples, working conditions, target brand replacement, and project requirements.
- ✓ Non-standard dimensions
- ✓ Precision grade & Clearance
- ✓ Cage material options
- ✓ Custom sealing & Lubrication
- ✓ Tapered bore
- ✓ Private label & Packaging
Not Just a Bearing Model. A Complete Bearing Selection System.
Many cylindrical roller bearing failures are not caused by the bearing itself. They happen because load direction, shaft arrangement, clearance, cage type, lubrication, alignment, housing rigidity, installation accuracy, and operating conditions were not matched correctly from the beginning.
Haron Bearing helps B2B buyers match cylindrical roller bearing structures before sampling, reducing installation problems, premature failure, vibration, overheating, and maintenance risk in industrial equipment.
Built for Industrial Bearing Projects, Not Just Product Display
Our engineering capabilities ensure reliable supply for demanding B2B applications.
Bearing Structure Matching
Support for NU, N, NJ, NF, NUP, NH, NN, NNU, full complement, sealed, precision, and custom structures.
Load Direction Understanding
Help customers match radial load, axial positioning, fixed-end support, floating-end support, and heavy-duty load conditions.
Precision and Clearance Control
Support for different precision grades, internal clearance options, and tolerance requirements based on speed and temperature.
Cage and Material Options
Support for steel cage, brass cage, polyamide cage, bearing steel, stainless options, lubrication choices, and special needs.
Inspection and Quality Control
Dimension, noise, vibration, hardness, clearance, surface inspection, and packaging control before shipment.
OEM / ODM Project Support
Support for drawings, samples, non-standard dimensions, private label, custom packaging, and repeat supply for industrial projects.
Which Cylindrical Roller Bearing Fits Your Project?
| Type | Best For | Load Direction | Main Advantage |
|---|---|---|---|
| NU Type | Floating-end bearing arrangements, motors, gearboxes | High radial load, axial displacement allowed | Compensates thermal expansion and allows shaft movement |
| N Type | Floating-end support, industrial machinery | High radial load, axial displacement allowed | Inner ring rib structure with non-locating function |
| NJ Type | Gearboxes, pumps, machinery shafts | Radial load + one-way axial load | Provides one-way axial positioning |
| NF Type | Industrial drives and machinery applications | Radial load + one-way axial load | Alternative one-way locating bearing structure |
| NUP Type | Fixed-end bearing arrangements | Radial load + two-way axial positioning | Locates shaft axially in both directions |
| NN / NNU Type | Machine tools, spindles, precision machinery | High radial load + high rigidity | Double row structure for higher stiffness and accuracy |
| Full Complement | Steel mills, mining, construction machinery | Very high radial load, lower speed | Maximum roller quantity for heavy-duty load capacity |
| Sealed Type | Dusty, contaminated, or difficult-maintenance environments | Radial load with contamination protection | Improved protection and reduced maintenance |
FAQ About Cylindrical Roller Bearings
What are cylindrical roller bearings?
What are cylindrical roller bearings used for?
What is the difference between NU and N type cylindrical roller bearings?
What is the difference between NJ and NUP cylindrical roller bearings?
Can cylindrical roller bearings carry axial load?
What is a full complement cylindrical roller bearing?
What is the difference between single row and double row cylindrical roller bearings?
Which cage material is best for cylindrical roller bearings?
What precision grades are available?
Can cylindrical roller bearings be customized?
How do I choose the right cylindrical roller bearing?
Are cylindrical roller bearings suitable for high-speed applications?
What information should I provide for a quotation?
Does Haron Bearing support OEM or private label cylindrical roller bearings?
Need Help Choosing the Right Cylindrical Roller Bearing?
Tell us your bearing model, application, load direction, radial load, axial load, speed, precision grade, clearance, cage type, lubrication method, sealing requirement, quantity, and OEM needs. Our team can help recommend the right cylindrical roller bearing structure for motors, gearboxes, pumps, compressors, machine tools, robots, and heavy-duty industrial equipment.
