High Speed Deep Groove Ball Bearings Manufacturer
Precision-engineered deep groove ball bearings for high RPM rotation, low friction torque, low noise and stable running in motors, fans, pumps, automation equipment and precision machinery.
RPM: Confirmed by working conditions
Noise Level: Low
Built by Haron Bearing — A High Precision Bearing Manufacturer Since 2000
Haron Bearing supports global OEM buyers with high precision deep groove ball bearings for high speed applications. With 100 advanced production lines, 400+ employees and strict quality inspection, we help customers match bearing speed, clearance, cage, lubrication and sealing design to real working conditions.
2000
Established
400+
Employees
100
Production Lines
4-8 Wks
Lead Time
Quick Engineering Overview for High Speed Applications
Key factors to consider when designing for elevated RPM and stable continuous rotation.
Speed Capability
High speed performance depends on bearing size, cage type, seal design, lubrication, internal clearance, load and heat dissipation. Haron helps confirm the suitable design based on your RPM and working conditions.
Low Friction Torque
Super-finished raceways, high-grade balls and optimized lubrication help reduce friction torque and heat generation during continuous rotation.
Noise & Vibration Control
For motors, fans and precision equipment, low vibration and stable running are critical. Haron can provide low-noise selection and inspection support.
Seal & Shield Selection
Open and ZZ / 2RZ designs are often preferred for higher speed, while 2RS provides stronger contamination protection but may create higher friction torque.
Clearance & Fit
C0, C3 and custom clearance options can be selected according to speed, thermal expansion, shaft fit and load condition.
Lubrication
High-speed grease or oil lubrication should be selected based on RPM, temperature and service life requirements.
What Are High Speed Deep Groove Ball Bearings?
High speed deep groove ball bearings are single-row deep groove ball bearings optimized for stable rotation at elevated RPM. They are commonly used where low friction torque, low heat generation, smooth running and reliable radial support are required.
Compared with standard deep groove ball bearings, high speed versions usually require better raceway finish, controlled internal clearance, suitable cage design, cleaner steel, high-grade balls and speed-matched lubrication.
- Suitable for radial loads and light axial loads in both directions
- Designed for low friction and smooth rotation
- Available in open, shielded and sealed structures
- Commonly used in motors, fans, pumps, compressors and automation equipment
- Can be customized by precision grade, clearance, grease, cage and material
High Speed Deep Groove Ball Bearing Parameters
| Bearing Type | Single row deep groove ball bearing |
|---|---|
| Series | 6000, 6200, 6300, 6800, 6900 series and custom models |
| Bore Diameter | Model-dependent, custom support available |
| Outer Diameter | According to ISO series or customer drawing |
| Precision Grade | P0, P6, P5, P4, P2 available |
| Internal Clearance | C0, C2, C3, C4 or customized |
| Seal / Shield | Open, ZZ, 2Z, 2RZ, 2RS |
| Cage | Steel cage, brass cage, polymer cage, custom cage |
| Material | GCr15 / 52100, stainless steel, hybrid ceramic options |
| Lubrication | High-speed grease, low-noise grease, oil lubrication support |
| Noise / Vibration | Low noise selection & low vibration inspection support |
| Lead Time | 4–8 weeks |
* Final speed rating must be confirmed according to bearing size, load, lubrication, temperature, mounting fit and operating environment.

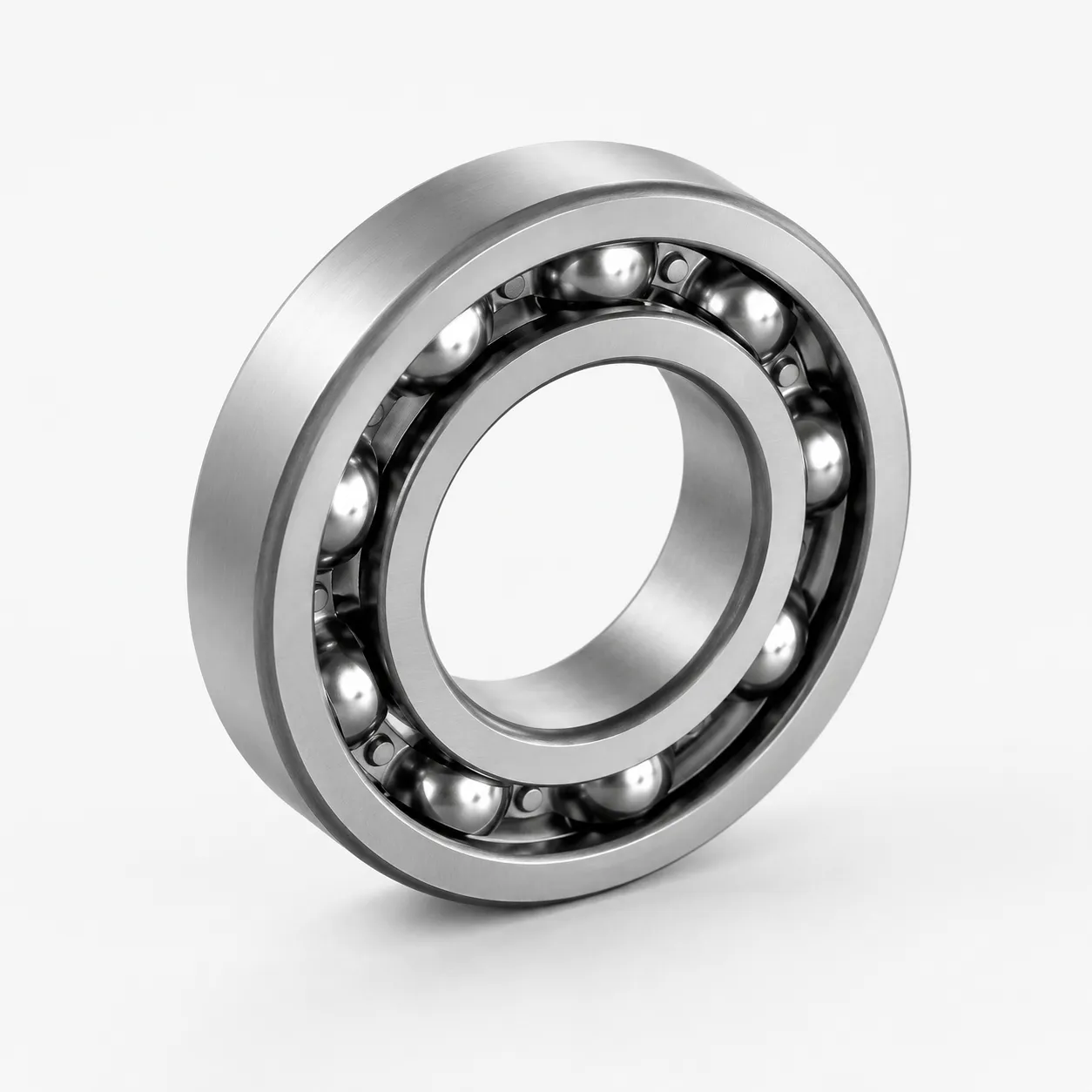

Engineering drawing reference (d, D, B, r)
High Speed Deep Groove Ball Bearing Types
Select the right structure and seal design based on your RPM, contamination level, and friction requirements.
Open High Speed Bearings
For maximum speed potential and low friction where external lubrication or clean working conditions are available.
- Optimized for ultra-high RPM industrial applications.
- Minimal friction design significantly reduces heat generation.
- Requires external lubrication systems like oil bath or mist.
ZZ High Speed Bearings
Metal shields help retain grease and protect against coarse particles while keeping friction relatively low.
- Dual metal shields (ZZ) provide excellent grease retention.
- Non-contact shielding ensures low friction at high velocities.
- Maintenance-free design, pre-lubricated for the bearing's lifespan.

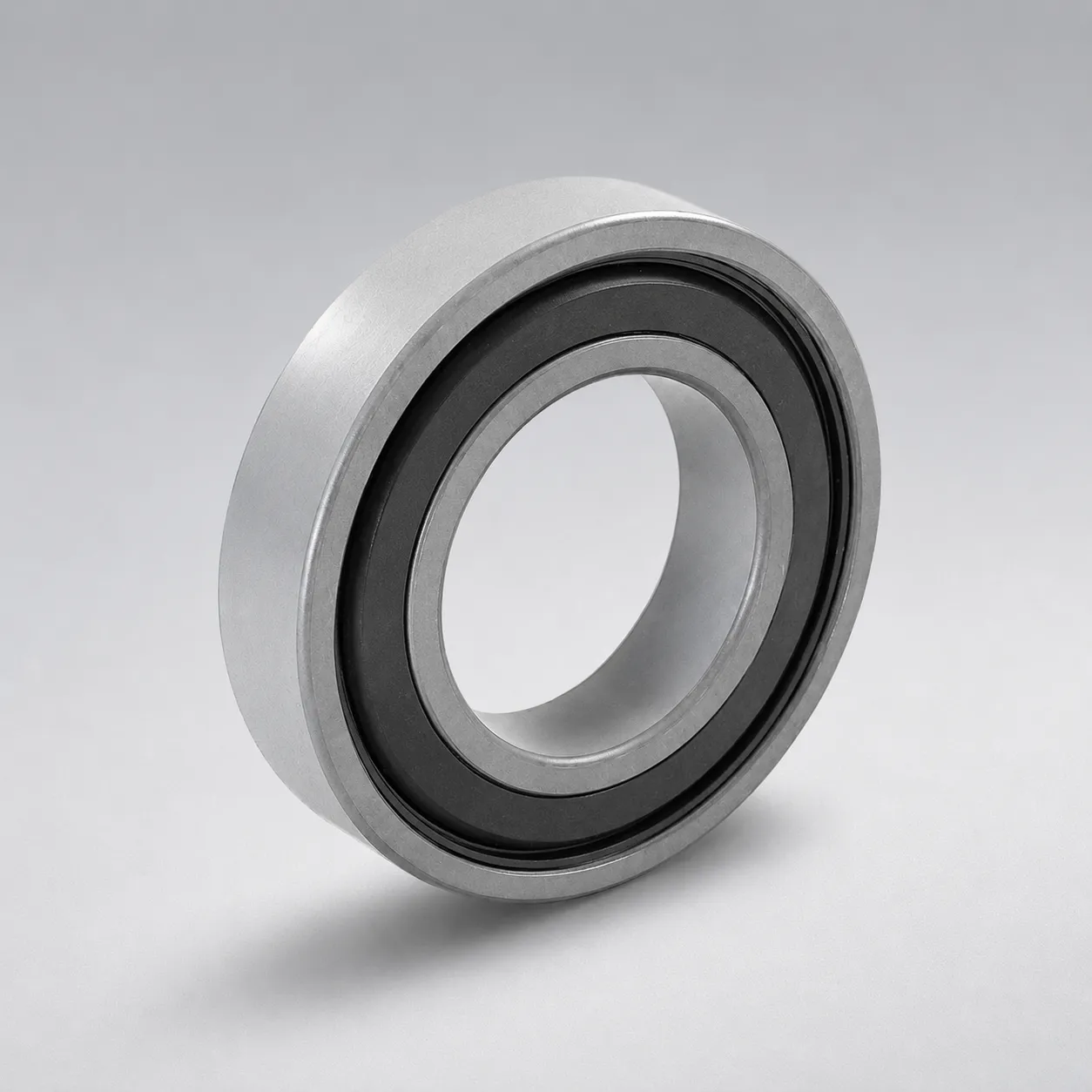

2RZ Non-Contact Sealed
Non-contact seals provide better contamination protection than shields while maintaining lower torque than contact seals.
- Advanced non-contact sealing technology for superior protection.
- Zero friction from seals allows for maximum operational speed limits.
- Perfect balance between dust resistance and high-speed performance.
2RS Sealed Bearings
Contact seals offer stronger protection, but speed and torque must be carefully checked for high RPM use.
- Premium rubber contact seals (2RS) for maximum environmental protection.
- Effectively blocks fine dust, moisture, and harsh contaminants.
- Engineered grease fill for an extended operational lifespan.

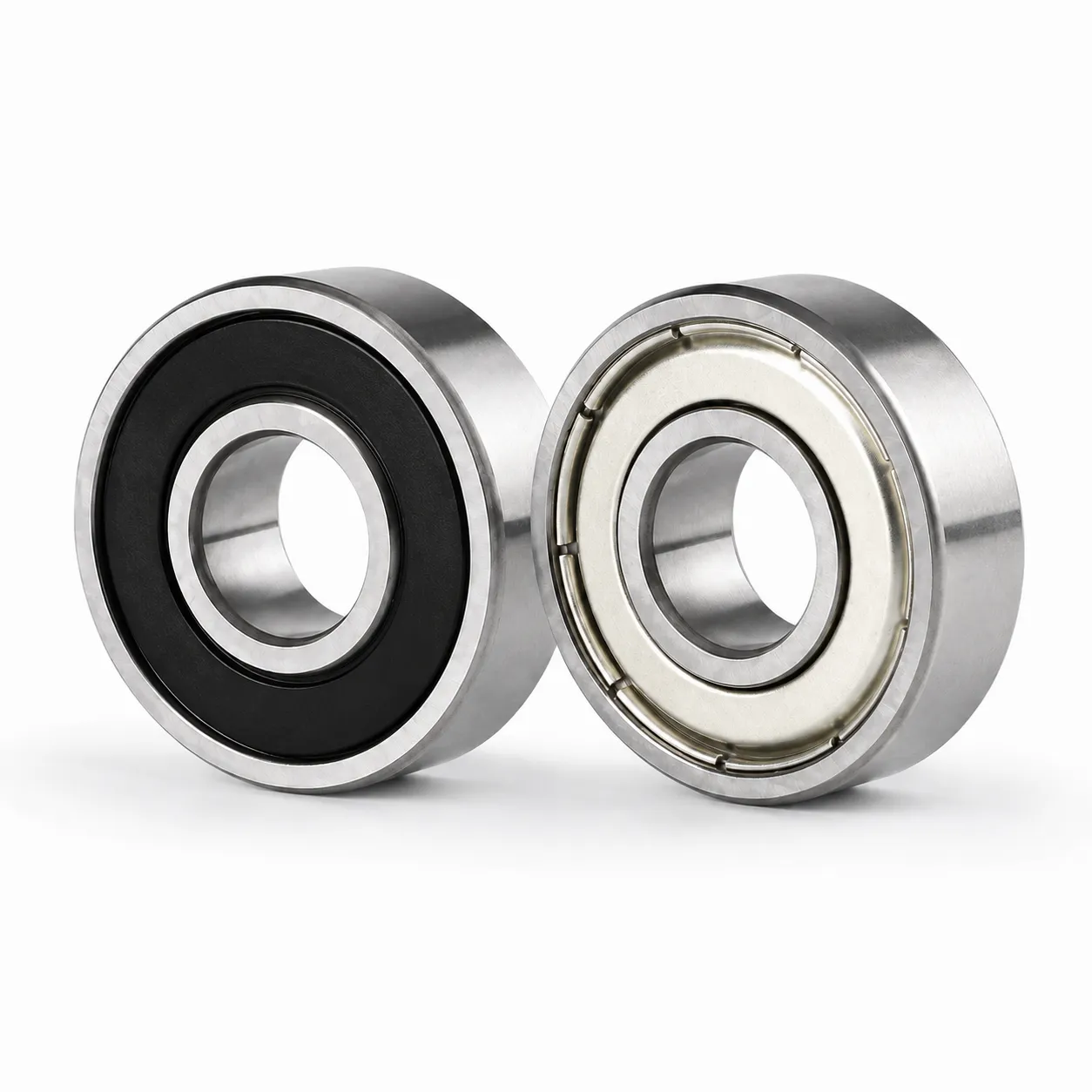

Low Noise Bearings
Designed for motors, fans, blowers and precision equipment requiring smooth, quiet rotation.
- Precision-honed raceways for whisper-quiet, frictionless operation.
- Strict vibration testing parameters (Z1/Z2/Z3/Z4 grades available).
- High-quality grease selected specifically for acoustic dampening.
Electric Motor Bearings
Optimized for motor running stability, low vibration, low heat and long service life.
- Tailored internal clearances (C3/C4) to accommodate thermal expansion.
- Enhanced running stability prevents motor rotor wear and tear.
- Extended service life even under demanding, continuous operations.
Hybrid Ceramic Bearings
Si3N4 ceramic balls reduce rolling mass and support high-speed, low-heat applications.
- Silicon Nitride (Si3N4) balls offer 40% lower density than steel.
- Significantly reduces centrifugal force and heat at extreme RPMs.
- Natural electrical insulation properties prevent arcing in EV motors.
Common Problems in High RPM Bearing Applications
Excessive Heat
Cause: high friction, unsuitable grease, excessive preload or tight fit.
Haron Solution: optimized clearance, low-torque grease, proper seal selection and fit recommendation.
Noise & Vibration
Cause: poor raceway finish, ball grade inconsistency, contamination or incorrect mounting.
Haron Solution: super-finished raceways, high-grade balls, vibration inspection and low-noise selection.
Grease Breakdown
Cause: high temperature, overfilling, wrong grease viscosity or long continuous operation.
Haron Solution: speed-matched grease, controlled grease quantity and application-based lubrication advice.
Seal Drag
Cause: contact seals increase friction torque at high speed.
Haron Solution: recommend Open, ZZ or 2RZ designs where speed is more important than heavy contamination resistance.
Cage Instability
Cause: unsuitable cage design under high RPM or high temperature.
Haron Solution: cage material selection including steel, brass or polymer according to application.
Short Service Life
Cause: wrong bearing size, incorrect clearance, misalignment, excessive load or poor installation.
Haron Solution: engineering review based on RPM, load, shaft/housing fit and working temperature.
Why Choose Haron for High Speed Deep Groove Ball Bearings?
Super-Finished Raceways
Smooth raceway surfaces help reduce friction, noise and heat generation during continuous high-speed rotation.
High-Grade Balls
Carefully selected balls support stable running accuracy, lower vibration and smoother rotation.
Precision Clearance Control
C0, C3 and custom clearance options help match thermal expansion, shaft fit and actual RPM requirements.
Speed-Matched Lubrication
Haron supports high-speed grease, low-noise grease and oil lubrication solutions based on working conditions.
Multiple Shield & Seal Designs
Open, ZZ, 2RZ and 2RS options allow buyers to balance speed, contamination protection, torque and maintenance needs.
OEM / ODM Engineering Support
Send your model, drawing, RPM, load and working environment. Haron helps confirm the suitable bearing structure.
Applications of High Speed Deep Groove Ball Bearings
Electric Motors
Need: low noise, low vibration, low heat.
Rec: ZZ, 2RZ, low-noise grease, C3 clearance.
Fans & Blowers
Need: high RPM, quiet running, stable airflow.
Rec: ZZ or 2RZ high speed bearings.
Pumps & Compressors
Need: stable rotation, heat resistance.
Rec: High precision with suitable lubrication.
CNC Auxiliary Systems
Need: stable running and low vibration.
Rec: P5 / P4 precision bearings.
Automation Equipment
Need: compact size, smooth motion.
Rec: 6000 / 6800 / 6900 series.
Precision Tools
Need: low torque, high RPM, compact size.
Rec: open or shielded high speed bearings.
Robotics & Servo Systems
Need: accurate rotation, low vibration.
Rec: high precision or customized clearance.
HVAC Equipment
Need: low noise, reliable continuous running.
Rec: sealed or shielded bearings.
High Speed Deep Groove Ball Bearings vs Standard Deep Groove Ball Bearings
High Speed Bearing
Standard Bearing
| Item | High Speed DGBB | Standard DGBB |
|---|---|---|
| Main Goal | Stable rotation at elevated RPM | General-purpose rotation |
| Friction Torque | Lower, optimized for speed | Standard level |
| Raceway Finish | More strictly controlled | General industrial finish |
| Noise & Vibration | Low noise / low vibration selection available | Standard noise level |
| Lubrication | Speed-matched grease or oil | General-purpose grease |
| Clearance | C0 / C3 / custom according to heat and fit | Standard clearance |
| Seal Choice | Open, ZZ, 2RZ often preferred for speed | 2RS, ZZ, open depending on use |
| Engineering Review | Recommended before selection | Often selected by standard model |
High speed does not only mean a higher RPM number. It requires the correct combination of bearing geometry, clearance, cage, lubrication, seal design, mounting fit and temperature control.
Open, ZZ, 2RZ or 2RS — Which Structure Is Better for High Speed?
For high RPM applications, open, ZZ or non-contact sealed designs are often preferred. If the environment is dusty, wet or contaminated, 2RS may be considered, but speed and heat generation must be checked carefully.
Open
Speed: Highest
Friction: Very low
Best for clean systems, oil lubrication, maximum RPM.
ZZ / 2Z
Speed: High
Friction: Low
Best for motors, fans, general high-speed equipment.
2RZ
Speed: High
Friction: Low to medium
High speed with improved non-contact sealing.
2RS
Speed: Lower
Friction: Higher
Best for dusty/humid environments where protection matters.
How to Choose High Speed Deep Groove Ball Bearings
Step 1 — Confirm RPM
Provide working speed, peak speed and continuous running time.
Step 2 — Confirm Load
Provide radial load, axial load direction, shock load and duty cycle.
Step 3 — Confirm Environment
Check dust, moisture, temperature, chemicals, washdown or clean-room conditions.
Step 4 — Select Seal / Shield
Choose Open, ZZ, 2RZ or 2RS according to speed and contamination level.
Step 5 — Select Clearance & Lubrication
Use C0, C3 or custom clearance. Choose high-speed grease, low-noise grease or oil.
Step 6 — Confirm Precision & Inspection
Use P6, P5, P4. Ask for dimensional inspection, noise/vibration test when needed.
Preparation Checklist
Before requesting a quote, please prepare:
- Bearing model or drawing
- RPM and working speed range
- Radial / axial load
- Operating temperature
- Seal preference
- Noise or vibration requirement
- Annual quantity
Inspection Support for High Speed Bearing Reliability
High speed bearings require more than dimensional accuracy. Haron can support inspection related to running accuracy, noise, vibration, surface finish, material and lubrication consistency.
Custom High Speed Deep Groove Ball Bearings for OEM Projects
For OEM buyers, Haron can customize high speed deep groove ball bearings according to drawings, working speed, operating temperature, load and service life targets.
Custom Options
- Custom dimensions
- P5 / P4 / P2 precision
- C3 or special clearance
- High-speed grease
- Hybrid ceramic balls
Ideal For
- Motor manufacturers
- Fan & blower factories
- Pump manufacturers
- Automation builders
- Precision machinery
How to Work with Haron Bearing
Send Model / Drawing
Send bearing model, drawing, RPM, load and application details.
Engineering Review
Haron reviews speed, clearance, seal, lubrication and precision.
Sample / Quote
Confirm technical details, price, lead time and packaging.
Production & Inspect
Production starts with process control and inspection.
Delivery & Support
Packed and shipped with technical support for future orders.
Standard lead time: 4–8 weeks depending on model, quantity and customization requirements.
