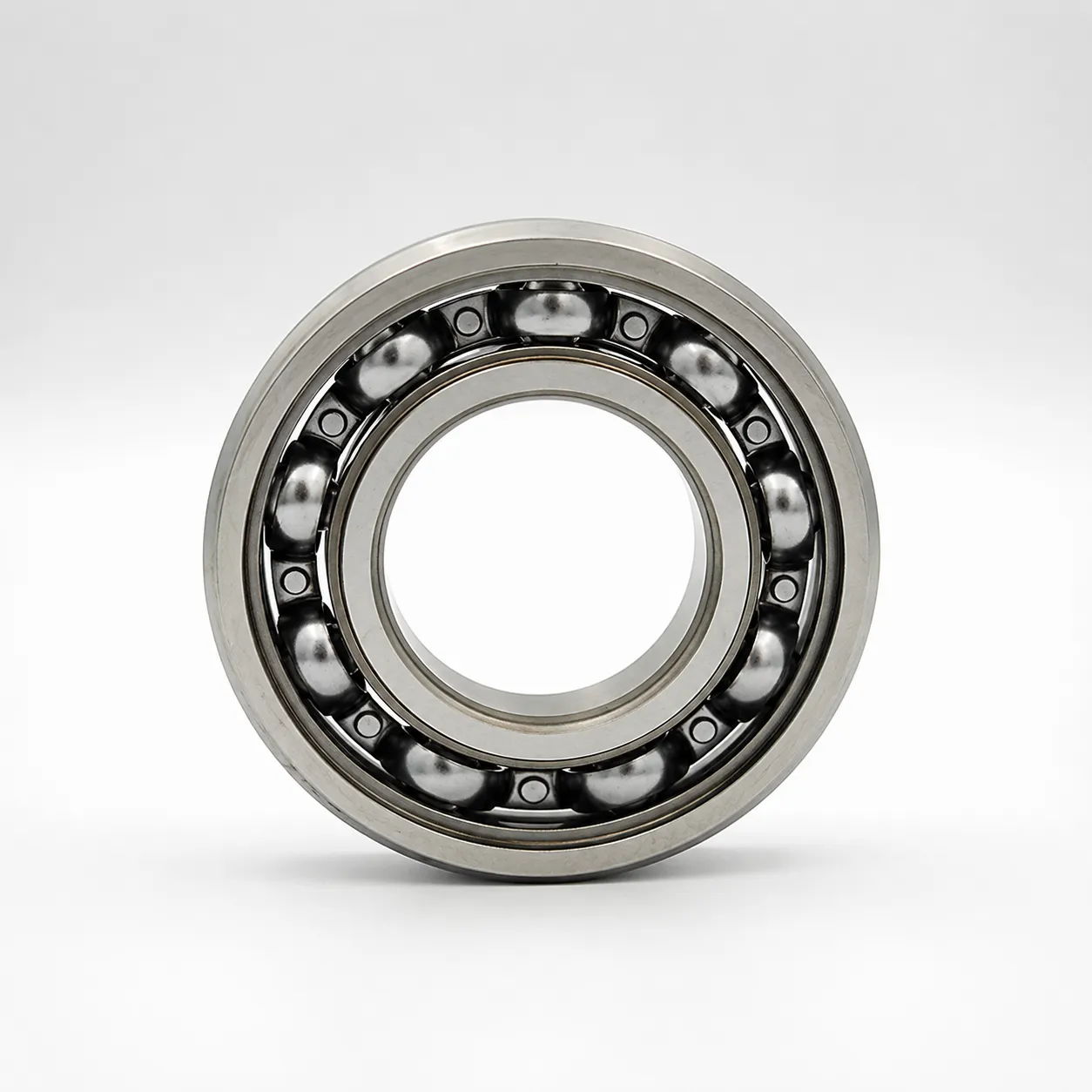

6200 Series Deep Groove Ball Bearings Manufacturer
Balanced load capacity, high-speed performance and universal metric dimensions for motors, pumps, fans, conveyors, gearboxes and general industrial equipment.
- 6200 to 6220 standard metric sizes available
- Open, ZZ / 2Z, 2RS and custom sealing options
- Chrome steel, stainless steel and hybrid ceramic options
- P0, P6, P5, P4 and P2 precision grades available
- OEM / ODM, private label and drawing-based production
2000
Founded
100+
Production Lines
30+
QC Inspectors
4-8 wks
Lead Time
Quick Answer
6200 series deep groove ball bearings are single-row radial ball bearings with a balanced cross-section between the lighter 6000 series and the heavier 6300 series. They are commonly used when designers need a good combination of radial load capacity, high-speed rotation, compact installation and broad availability. Typical applications include electric motors, pumps, fans, gearboxes, conveyors, agricultural equipment, power tools and general OEM machinery.
Quick Specs
- Series: 6200 series
- Common Models: 6200 - 6210+
- Load: Radial + moderate axial
- Sealing: Open, ZZ, 2RS
- Material: GCr15, SS, Ceramic
- Precision: P0, P6, P5, P4, P2
- Clearance: CN, C2, C3, C4
- Lead Time: 4–8 weeks
Factory-Direct 6200 Series Bearing Supply for OEM Buyers
Haron Bearing supports stable B2B supply of 6200 series deep groove ball bearings for OEM machinery, electric motors and industrial equipment manufacturers. From material inspection and precision grinding to noise testing, clearance control and export packaging, each production step is built around consistent batch performance.
Precision Grinding Line
Automated Assembly
Noise & Vibration Testing
Material Inspection
P2 Level Quality Control
Large-scale Storage
Global Client Visits
OEM Export Packaging
Engineering & Design Advantages
Built for stable performance in standard and custom industrial applications.
Balanced 62 Series Design
The 6200 series provides a practical balance between compact size and higher load capacity compared with lighter 6000 series bearings.
High-Speed Rotation
Suitable for motors, fans, pumps and automation equipment where smooth rotation and low friction are required.
Open, ZZ & 2RS Options
Choose open type for clean systems, ZZ for lower-friction dust protection, and 2RS for better grease retention and contamination resistance.
Flexible Clearance
CN is common for general use. C3 or C4 can be selected for higher temperature, higher speed or tighter shaft fits.
Material Choices
Chrome steel is standard; stainless steel and hybrid ceramic options are available for corrosion resistance or special environments.
OEM Custom Support
Customize size, grease, cage, seal, precision grade, noise level, marking and packaging according to your application or drawing.
6200 Series Deep Groove Ball Bearing Specifications
Technical Parameters
- Product Name 6200 Series Deep Groove Ball Bearings
- Bore Range Commonly 10 mm to 100 mm
- Outer Diameter Commonly 30 mm to 180 mm
- Material GCr15 / AISI 52100 chrome steel, SS, hybrid ceramic
- Sealing Type Open, Z, ZZ / 2Z, RZ, 2RS, custom
- Precision Grade P0, P6, P5, P4, P2
- Clearance CN, C2, C3, C4, custom
- Noise / Vibration Z1V1, Z2V2, Z3V3 available
- Customization Size, clearance, material, cage, seal, grease, marking, packaging
Popular 6200 Series Sizes
| Model | Bore d (mm) | Outer D (mm) | Width B (mm) |
|---|---|---|---|
| 6200 | 10 | 30 | 9 |
| 6201 | 12 | 32 | 10 |
| 6202 | 15 | 35 | 11 |
| 6203 | 17 | 40 | 12 |
| 6204 | 20 | 47 | 14 |
| 6205 | 25 | 52 | 15 |
| 6206 | 30 | 62 | 16 |
Final load ratings, speed limits, tolerance and grease selection should be confirmed according to the exact model, seal type, clearance, material and operating condition.
6200 Series Deep Groove Ball Bearings We Supply
Factory configurations tailored for different speeds, environments and applications.

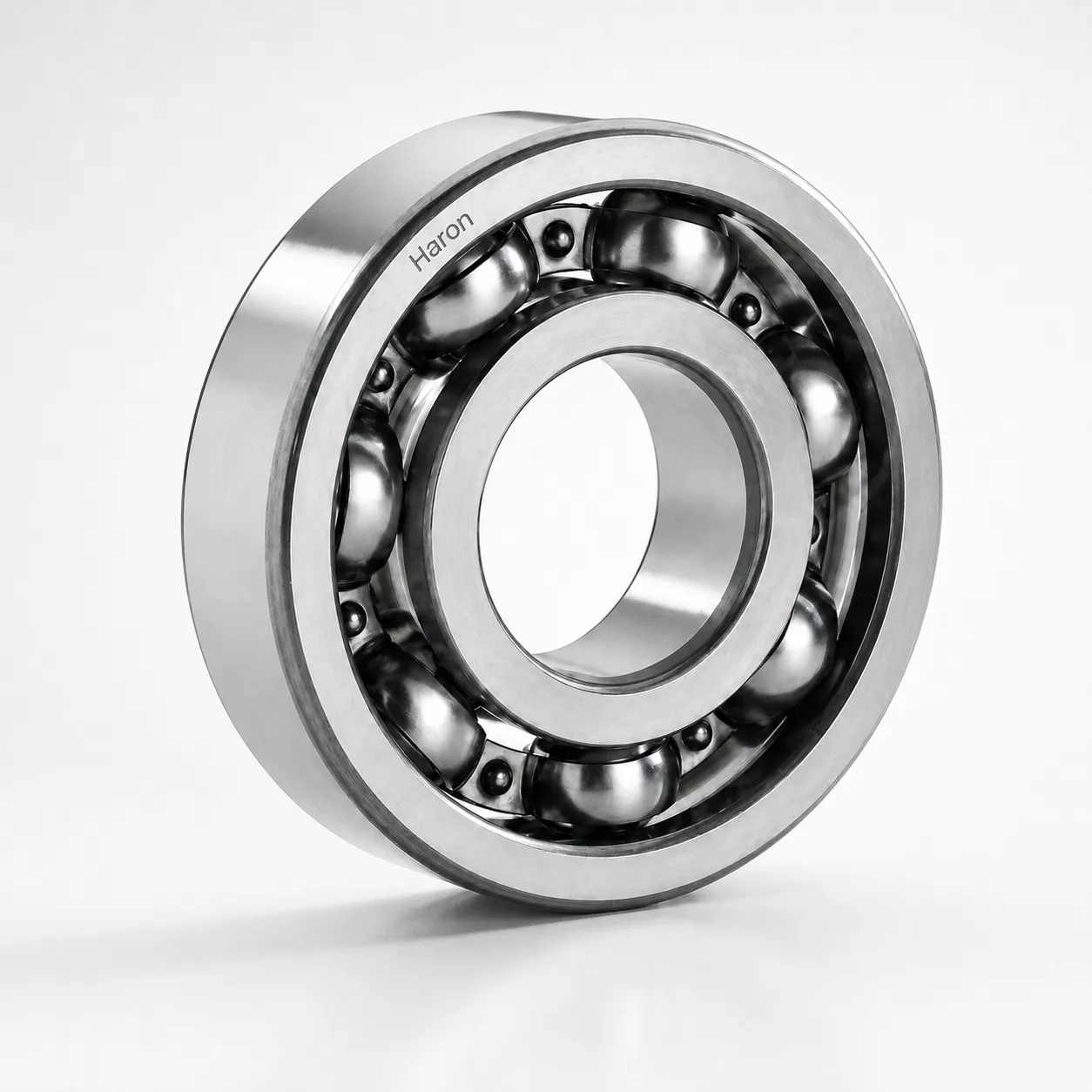

Open 6200 Series Bearings
Open 6200 series bearings are suitable for clean, enclosed or externally lubricated systems where low friction and high-speed rotation are important.
Best for:
- • Gearboxes with oil bath
- • Clean motor systems
- • Internal components
Not ideal for:
- • Dusty environments
- • Water exposure

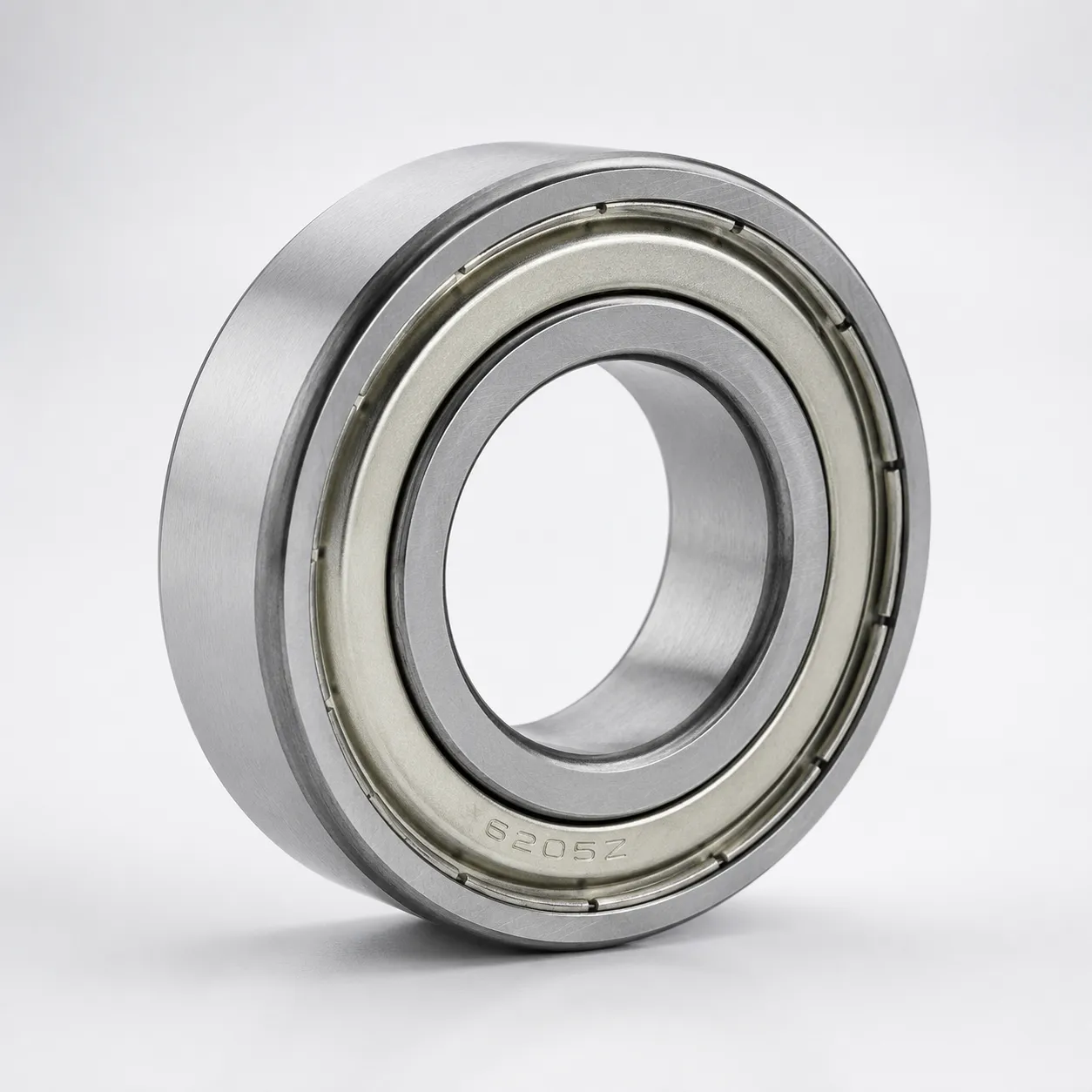

6200 ZZ / 2Z Shielded Bearings
6200ZZ bearings use metal shields on both sides to help retain grease and reduce the entry of larger dry particles while keeping friction lower than contact rubber seals.
Best for:
- • Electric motors
- • Fans and blowers
- • Office equipment
- • General machinery

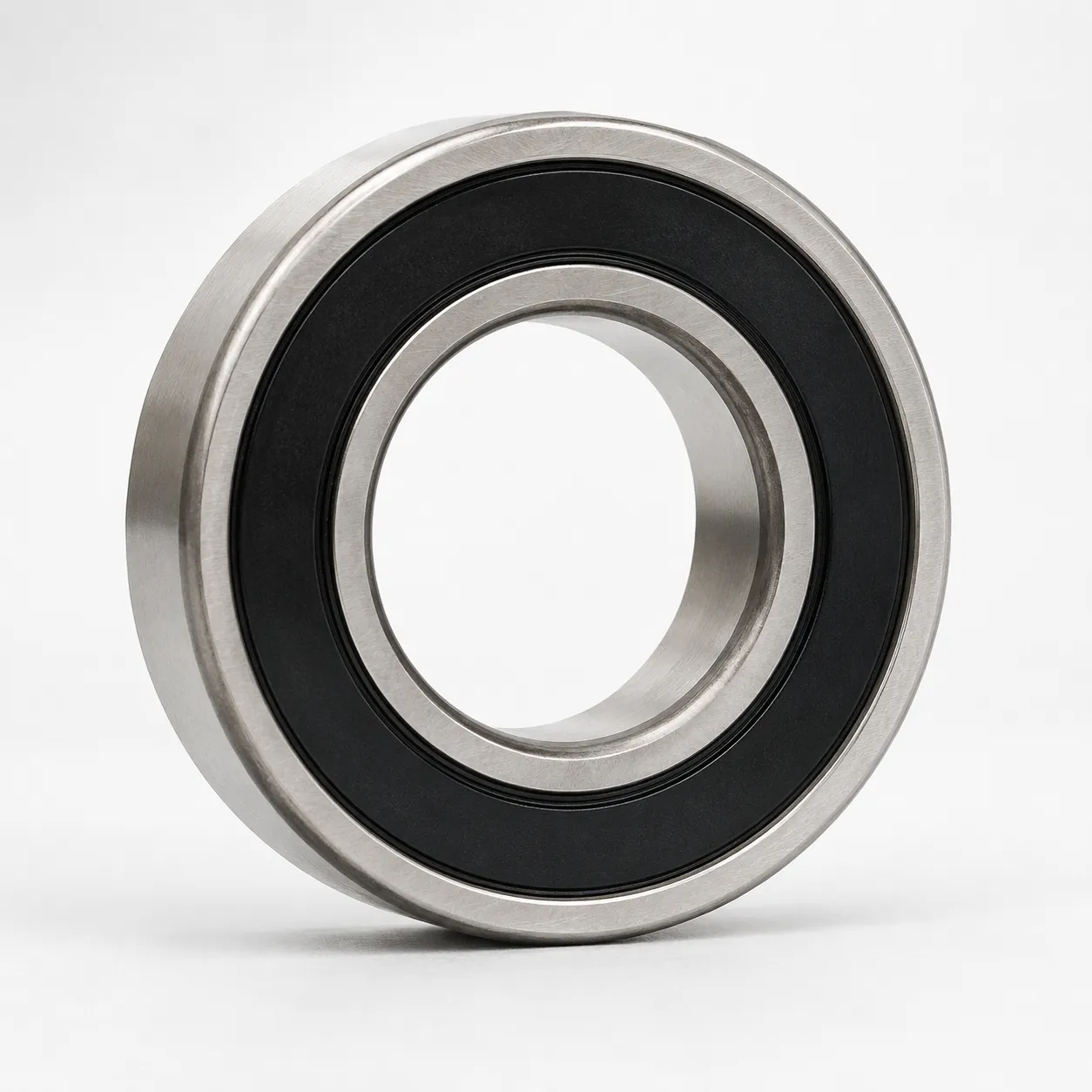

6200 2RS Sealed Bearings
6200-2RS bearings use rubber seals on both sides for better grease retention and protection against dust, moisture and contamination.
Best for:
- • Pumps
- • Outdoor machinery
- • Agricultural equipment
- • Washdown environments
Open vs ZZ vs 2RS: Which Should You Choose?
Open Type
- Structure: No shield/seal
- Friction: Lowest
- Speed: Highest potential
- Protection: None
- Lubrication: External required
ZZ / 2Z Type
- Structure: Metal shields
- Friction: Low
- Speed: High
- Protection: Dry particles
- Lubrication: Pre-greased
2RS Type
- Structure: Rubber seals
- Friction: Higher than ZZ
- Speed: Lower than Open/ZZ
- Protection: Dust & moisture
- Lubrication: Retained inside
6200 vs 6000 vs 6300 Series
The 6200 series is often selected when the equipment needs a practical balance of load capacity, speed capability, standard availability and compact installation size.
| Series | Load Capacity | Typical Use |
|---|---|---|
| 6000 Series | Lower | Small motors, light-duty |
| 6200 Series | Moderate | Motors, pumps, fans |
| 6300 Series | Higher | Heavy machinery |
Where Are 6200 Series Bearings Used?
Electric Motors
Low-noise 6200ZZ or 6200-2RS bearings for stable motor shaft support.
Pumps
Sealed 6200 series bearings for grease retention and contamination resistance.
Fans & Blowers
Low-friction ZZ or low-noise configurations for smooth fan rotation.
Gearboxes
Open or ZZ 6200 bearings for enclosed gearboxes depending on lubrication.
Conveyors
6200-2RS or ZZ bearings for conveyor rollers and drive systems.
Agricultural Machinery
2RS sealed 6200 bearings for dusty or outdoor operating environments.
Common Problems When Sourcing 6200 Series Bearings
1. Wrong Size or Interchange
A small difference in bore, OD, width or suffix can cause assembly failure.
Solution: Send model number, drawing or sample photo for confirmation.
2. Noise and Vibration Issues
Poor raceway finish or unsuitable grease causes noise in motors and fans.
Solution: Use low-noise grade, controlled clearance and suitable grease.
3. Unclear Seal Selection
Open, ZZ and 2RS perform differently in speed, friction and contamination.
Solution: Match seal type to environment, speed and maintenance plan.
Why Choose Haron Bearing?
Factory Direct Supply
Stable production capacity and engineering support for global OEM customers.
Strict Dimensional Control
Bore, OD, width, chamfer and runout checked to support stable assembly.
Noise & Vibration Testing
Controlled testing helps reduce abnormal sound and heat generation in motors.
Flexible OEM Options
Customize clearance, precision, material, cage, seal, grease and marking.
Export-Ready Packaging
Anti-rust protection, tubes, cartons, pallets and private label available.
Engineering Selection Support
Team helps confirm equivalent models, suffix meanings and suitable structures.
FAQ About 6200 Series Bearings
What are 6200 series deep groove ball bearings?
What is the size of a 6200 bearing?
What is the difference between 6200, 6200ZZ and 6200-2RS?
Should I choose Open, ZZ or 2RS 6200 bearings?
What are the common applications for 6200 series bearings?
What precision grades are available for Haron's 6200 series bearings?
Can I request custom 6200 series bearings for specific requirements?
What is the load capacity of a standard 6200 bearing?
How do you ensure the quality and reliability of your bearings?
Need 6200 Series Bearings for Your OEM Project?
Send us your bearing model, drawing, sample photo or application details. Haron Bearing will help confirm the suitable 6200 series deep groove ball bearing structure, clearance, material, grease and packaging for your equipment.
