Cross roller bearings are ideal for robotic joints because they support radial, axial, and moment loads in one compact structure, delivering high rigidity and high rotational accuracy. In robotics, they’re commonly used in rotary joints, harmonic-drive gearheads, robot arms, and precision rotary tables—especially where stiffness, repeatability, and low runout matter.
Working Principle, Key Benefits, and Where They Fit in Robotics

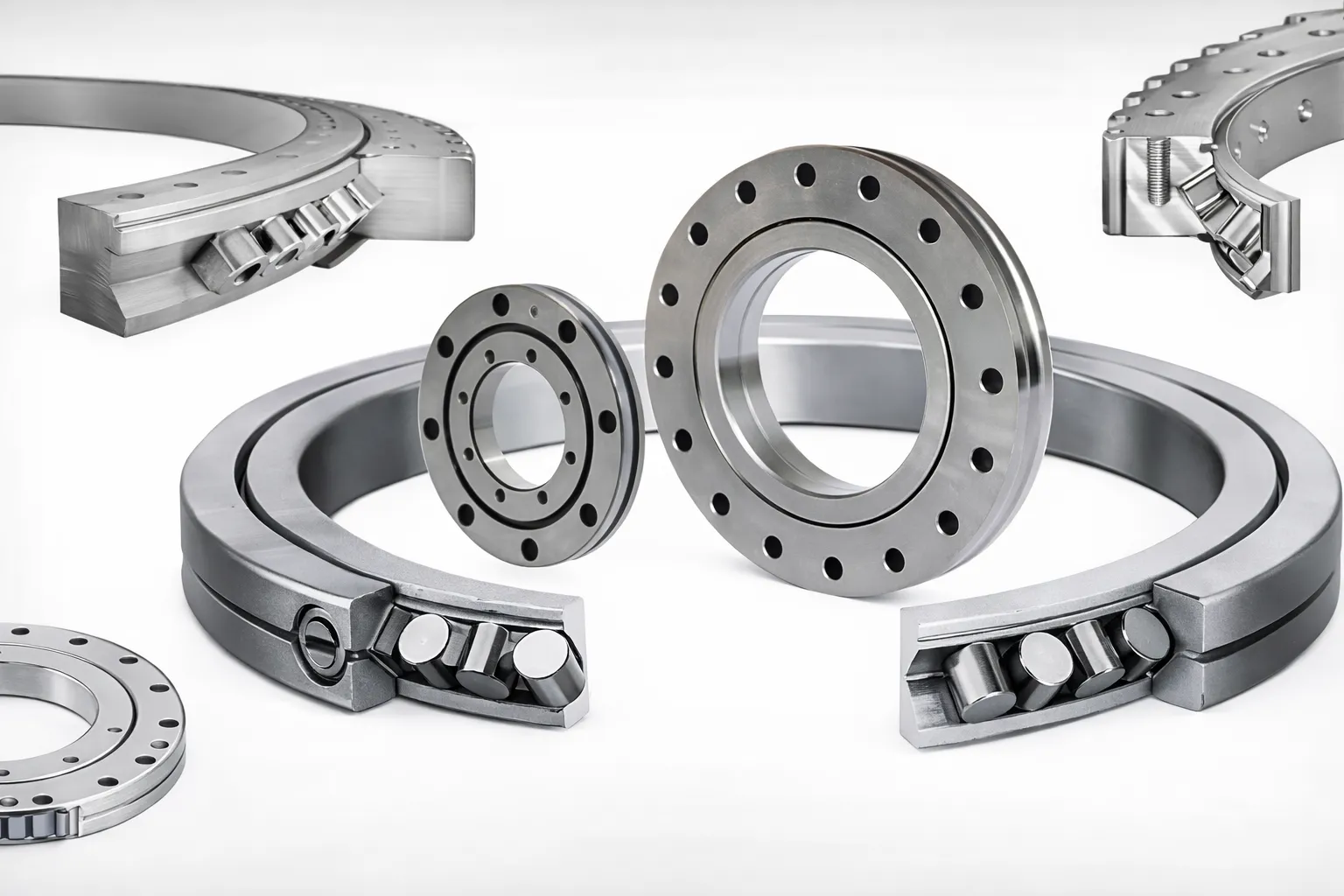

A cross roller bearing for robotics uses cylindrical rollers arranged alternately at 90° between inner and outer rings. This crossed orientation lets one bearing set carry radial + axial (both directions) + overturning moment loads at once. For robot joints, that means fewer components, better stiffness, and more stable accuracy under dynamic torque and shock.
Why engineers choose cross roller bearings in robot joints
- Multi-directional load handling: axial/radial/moment in a single bearing
- High rigidity: low elastic deformation improves TCP repeatability
- High rotational accuracy: low runout supports precision positioning
- Compact design: enables thinner joint stacks and shorter overhangs
- Simplified assembly: often reduces the need for paired bearings + spacers
| Robotics requirement | What the crossed-roller structure delivers | Practical impact in robot joints |
|---|---|---|
| High moment stiffness | Rollers act like multiple “columns” around the raceway | Better pose stability at extended reach |
| Bidirectional axial load | Alternating roller orientation supports both thrust directions | Stable performance through reversals and acceleration |
| Accuracy & repeatability | Low runout potential with proper preload and raceway finish | Better positioning, less calibration drift |
| Compact joint packaging | Single bearing can replace duplex/paired solutions | Smaller gearhead/joint envelope |
Haron Bearing Pro Tip: In our lab tests at Haron Bearing, we found that joint stiffness is usually limited by mounting interface flatness and preload consistency rather than the bearing catalog rating. When customers improve housing squareness/flatness and control bolt pattern distortion, repeatability often improves more than switching to a “higher grade” bearing.
How does Cross Roller Bearings for Robotics: Benefits and Applications work?
A cross roller bearing for robotics works by alternating cylindrical rollers at 90° so the bearing can carry radial, axial, and moment loads simultaneously. This geometry distributes loads around the circumference, enabling high rigidity and high rotational accuracy in compact robot joints, rotary tables, and strain-wave (harmonic) gear assemblies—often with controlled preload for zero-backlash feel.
Load Paths and Preload in Robot Joints
- Crossed rollers create two orthogonal load paths, supporting thrust in both directions and radial loads.
- Moment load is resisted by opposing rollers separated across the raceway width, producing a strong couple.
- Preload (or slight clearance control) raises stiffness and reduces runout, critical for robot repeatability.
- Mounting accuracy (flatness, coaxiality) preserves the designed load distribution and service life.
Haron Bearing Pro Tip: Our technicians often see “mystery vibration” traced to uneven clamping that ovalizes the ring. We recommend tightening in a star pattern, verifying interface flatness, and measuring assembled runout—those steps prevent roller edge loading and premature wear.
Benefits of using Cross Roller Bearings for Robotics: Benefits and Applications
The main benefits of a cross roller bearing for robotics are compact packaging, multi-directional load capacity, high rigidity, and high rotational accuracy. In robot joints, these translate to better repeatability under torque, less deflection at long reach, fewer bearing components, and easier integration with gearheads and encoders—especially where moment loads dominate.
Benefits Summary (Robot-Use Focus)
| Benefit | Why it matters in robotics | Typical effect |
|---|---|---|
| High rigidity | Reduces joint compliance | Less TCP drift under load |
| High rotational accuracy | Improves positioning | Lower runout for encoders/tools |
| Compact design | Saves axial length | Smaller joint modules |
| Handles moment loads well | Robot arms generate high overturning | Better stability at reach |
| Simplified bearing stack | Fewer parts than paired bearings | Easier assembly and tolerance control |
Haron Bearing Pro Tip: Our technicians often see customers oversize bearings for load but underspec the surrounding structure. We advise checking the full joint stack stiffness (housing, bolts, gearhead flange) because a stiffer interface can outperform a larger bearing in real robotic duty cycles.
Maintenance tips for Cross Roller Bearings for Robotics: Benefits and Applications
Maintenance for a cross roller bearing for robotics centers on cleanliness, correct lubrication, sealing integrity, and periodic checks of preload/runout. Most failures we see come from contamination, grease starvation, or mounting distortion rather than pure fatigue. Use the recommended grease, keep seals effective, avoid solvent wash-through, and monitor temperature/noise changes as early indicators.
Practical Maintenance Checklist (Robotic Joint Environment)
- Keep contaminants out: verify seals, labyrinths, and cable pass-throughs; avoid abrasive dust ingress.
- Lubrication discipline: use specified grease type/viscosity; do not mix incompatible thickeners.
- Relube interval: set by duty cycle (speed/torque/temperature) and environment; trend temperature and torque.
- Inspect accuracy drift: check runout, backlash feel, and encoder stability after service.
- Mounting verification: re-check bolt torque pattern and flange flatness during rebuilds.
Haron Bearing Pro Tip: Our technicians often see grease “looks fine” while the bearing is actually starved at the contact. We recommend controlled grease quantity by weight, validated relube intervals using temperature rise, and avoiding high-pressure air near seals (it pulls dust into the raceways).
What are your wholesale/MOQ and lead times for cross roller bearings used in industrial robotics joints?
For cross roller bearing for robotics wholesale projects, MOQ and lead time depend on series, size, accuracy grade, and whether customization is needed. Typical stock sizes can ship faster, while high-precision grades or custom rings require machining and inspection time. Share your bearing drawing (OD/ID/width), accuracy class, preload, and annual volume for a firm quote.
Typical Commercial Parameters (Guidance)
| Item | Typical range (project-dependent) |
|---|---|
| MOQ | Prototype: small lots possible; production: usually batch-based |
| Lead time (stock) | Short (subject to inventory) |
| Lead time (custom/high-precision) | Longer due to grinding, matching, inspection |
| What we need to quote | Load/torque, speed, moment load, accuracy, mounting scheme, environment |
Haron Bearing Pro Tip: Our technicians often see procurement delays caused by missing preload/accuracy definitions. If you provide joint torque, moment load, target runout, and mounting cross-section, we can lock the correct internal design early and shorten the sample-to-production cycle.
Which cross roller bearing series do you recommend for high-precision robot arms, and what are the load/torque and service-life specs?
For high-precision robot arms, we typically recommend thin-section crossed-roller series for compact joints and integrated-inner/outer-ring styles for easier assembly and higher stiffness. Exact load/torque capacity and service-life specs depend on bearing size, preload, accuracy grade, lubrication, and the joint’s duty cycle—so we size from your moment load, axial/radial loads, and motion profile.
Selection Framework (What We Specify Before Finalizing a Series)
| Parameter | What we evaluate | Why it changes load/torque & life |
|---|---|---|
| Overturning moment (primary in arms) | Peak + RMS moment over cycle | Dominates contact stress and stiffness |
| Axial/radial loads | Direction, magnitude, reversals | Influences roller loading distribution |
| Required accuracy | Runout, wobble, repeatability | Drives grade, grinding, inspection |
| Preload target | Light/medium/heavy | Trades stiffness vs friction/heat/life |
| Speed & duty cycle | rpm, accel/decel, dwell | Affects lubrication film and temperature |
| Environment | dust, coolant, vacuum | Drives seals/grease choice |
Service-life note: We provide life estimates after confirming your load spectrum (not only peak loads). For robotics, we often model equivalent dynamic load under the full motion profile plus thermal limits, because high preload and frequent reversals can be life-limiting even at moderate rpm.
Haron Bearing Pro Tip: Our technicians often see “catalog life” overestimated when users plug peak moment into a static check only. We recommend sending your motion cycle (torque vs time, speed vs time) so we can calculate equivalent load, verify thermal margin, and choose preload that meets stiffness targets without sacrificing life.
